Intelligent Integrated Power Cable Fault Locator for Fault Locating and Testing
Tianjin Grewin Technology Co., Ltd.- Certification：CE, RoHS
- Customized：Non-Customized
Base Info
- Model NO.：RCI-700T
- Sampling Frequency：100MHz
- Low Voltage Impulse：1m
- Impulse Current：4m
- Voltage of Low Voltage Impulse：30V
- Distance Measurement Range：30km
- Gain of Signal Channel：80dB
- Accuracy of Pin-Pointing：0.1m
- Receiving Frequency：1kHz
- Charger：Input AC100-240V, 50,60Hz; Output 8.4V, DC
- Transport Package：Export Standard Carton or Customize Strong Pallet
- Specification：RCI-700T Integrated Power Cable Fault Tester
- Trademark：Grewin
- Origin：China
- HS Code：9030899090
- Production Capacity：400 PCS Per Month
Description
Impulse current
Withstand voltage test:no
- The gray part in the form means that, for these functions, extra matched high voltage generator is needed.
- Audio-frequency method to pinpoint the low resistance is optional. This need the matched CD-1200T route tracing signal generator.
Device introduction
1. Main unit and accessories

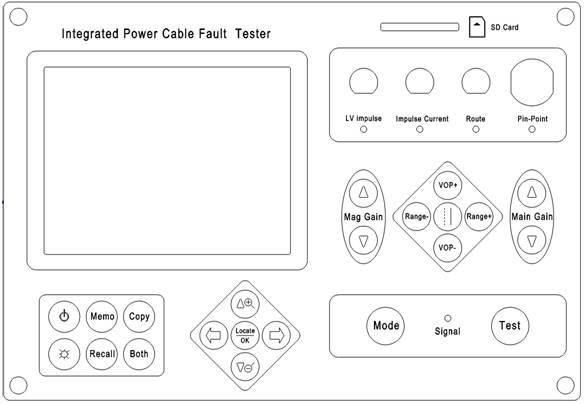

- RCI-700TM Integrated power cable fault tester
- Function and accessories:
Impulse current distance testing accessories: Impulse current coupler
Audio magnetic synchronous pin-pointing accessories: Pin-pointing sensor, earphone
Route tracing accessories: route sensor, earphone

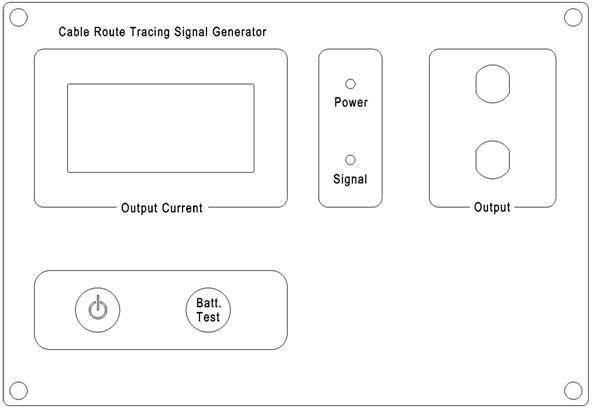

- RCI-700TT route tracing signal generator
- Signal generator for route tracing. Accessories: output line, earth stake
- Charger for RCI-700TT/M

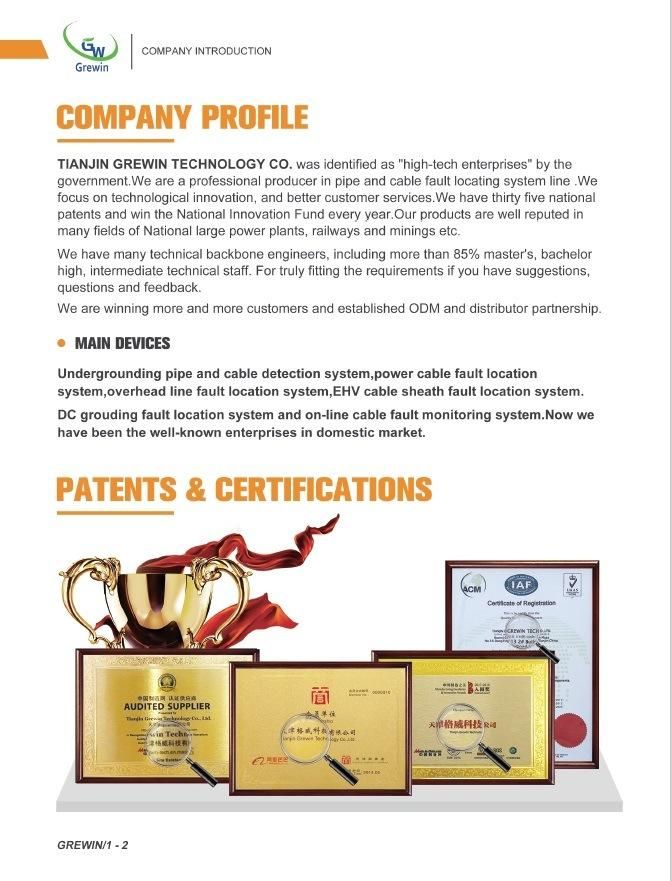

Company introduction
