• Model NO.：YT-WL SERIES
• Elongation Accuracy：0.01mm
• Tensile Velocity：1.0~480(Can Be Adjusted Digitally) mm,Min
• Sampler Length：35-300(Can Be Adjusted Digitally) mm
• Sampler Width：15,25,50 (Can Be Ordered) mm
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Dimension：700(L)*300(W)*230(H) mm
• Net Weight：Net Weight
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-WL SERIES Elongation Accuracy 0.01mm Tensile Velocity 1.0~480(Can Be Adjusted Digitally) mm/Min Sampler Length 35-300(Can Be Adjusted Digitally) mm Sampler Width 15,25,50 (Can Be Ordered) mm Print Built-in Thermal Printer Communication Interface RS232 Dimension 700(L)*300(W)*230(H) mm Net Weight Net Weight Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

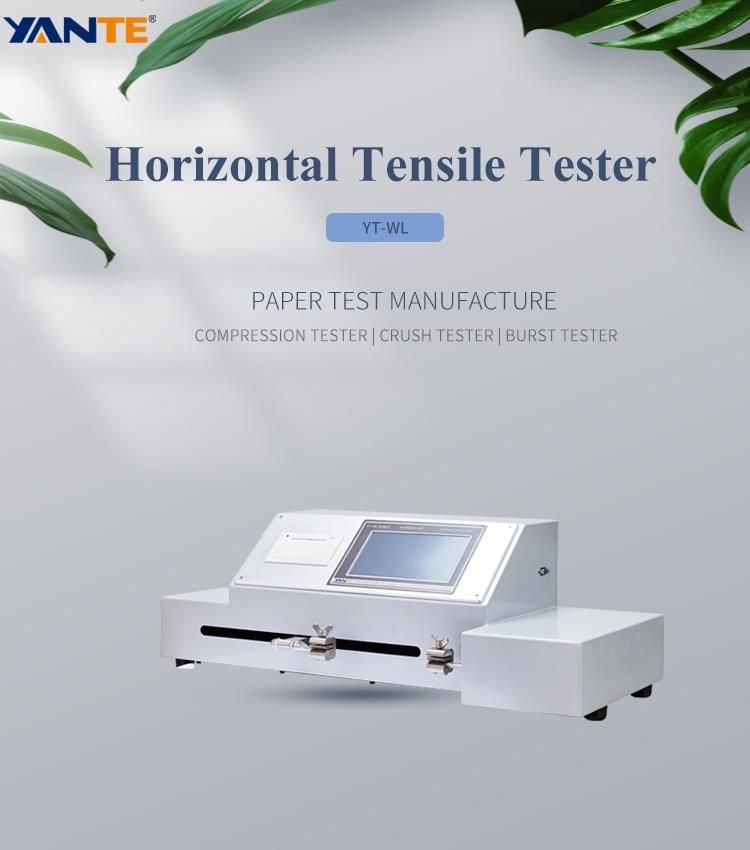

This instrument adopts a unique horizontal design. It is a new type of instrument researched and developed by our company in accordance with the requirements of the latest national standards. It is mainly used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries that need to determine the tensile strength of objects. And commodity inspection department.


Product Function

Measure tensile and tensile strength
Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus
Measure the peel strength of adhesive tape

Product Features

The transmission mechanism adopts a ball screw and three guide shafts, and the transmission is stable and accurate.Using closed-loop servo stepping motor, low noise and precise control.Real-time display of stretching curve.The ARM processor improves the response speed of the instrument and ensures the real-time performance of the measurement.Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.Features of automatic reset, data memory, overload protection and fault self-diagnosis.Cooperate with computer software for communication (purchased separately).

Application Range

Paper, cardboard; aluminum foil, aluminum-plastic tape;
Plastic film and other non-metallic materials.
Non-woven fabric

Standards
GB/T 12914,GB/T 2792,GB/T 24218.3,GB/T 1040,TAPPI  T 494


Supporting Accessories And Consumable

No.	Accessory name	Model	Picture	Standard	Optional
1	Standard Distance Cutter	YT-Q15			√
2	Punch Standard Distance Cutter	YT-CQ15			√
3	Adjustable Paper Cutter	YT-TJD300			√

Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	(0.15~30)N /(1~300)N /(3~1000)N
5	Display resolution	0.01N(WL30) / 0.1N(WL300) / 0.1N(WL1000)
6	Indication error	±1%(Range5%~100%)
7	Work stroke	300mm
8	Sample width	15mm(25mm,50mm Optional)
9	Stretching speed	(1~500)mm/min((Can be adjusted arbitrarily)
10	Print	Built-in thermal printer
11	Communication Interface	RS232(Default) (USB, WIFI optional)
12	Dimension	800×400×300 mm
13	Net Weight	35kg around
