• Model NO.：YT-YS05KN
• Dimension：550(L)*415(W)*790(H)mm
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou, China
• HS Code：9024800000

Basic Info.

Model NO. YT-YS05KN Dimension 550(L)*415(W)*790(H)mm Transport Package Wooden Box Trademark YANTE Origin Hangzhou, China HS Code 9024800000

Product Description

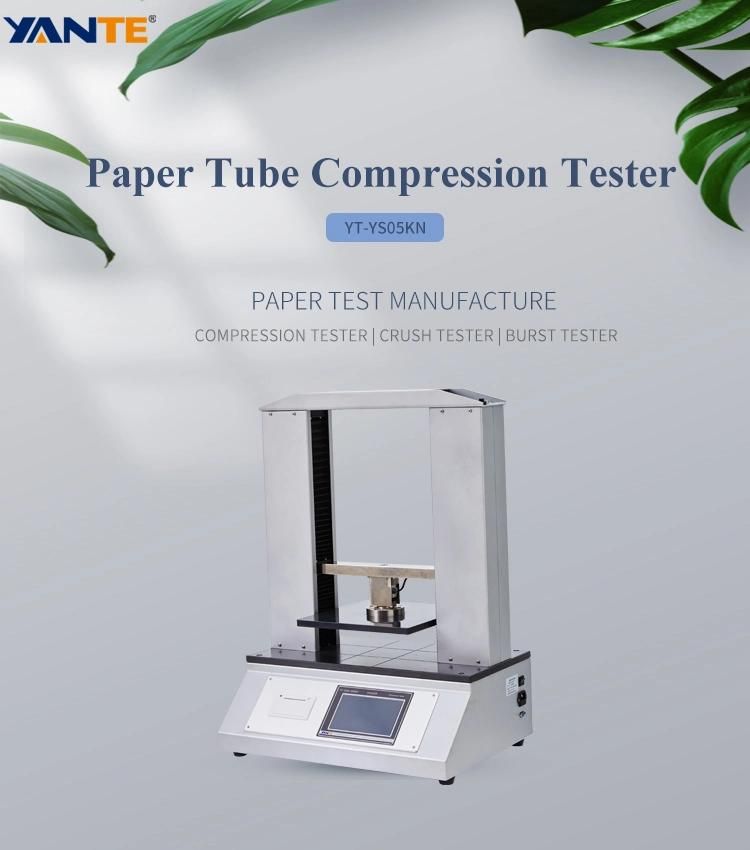

Paper Tube Compression Tester is a testing instrument for testing the compressive strength of paper tubes. It is mainly suitable for the compressive strength of various industrial paper tubes, chemical fiber paper tubes, small packaging boxes and other types of small containers or honeycomb paperboards with a diameter of less than 300mm. Deformation testing is an ideal testing equipment for paper tube manufacturers, quality testing institutions and other departments.



Application Range

Carton,beer box,paper tube,paper cup, color box,milk box, etc.





Product Features

The ARM processor and 24-bit high-speed analog-to-digital converter improve the response speed and sampling accuracy of the instrument.
Closed-loop servo stepping motor, ball screw, dual optical axis guide, stable operation and precise positioning.
The 7-inch color touch screen displays the force-displacement curve in real time.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Cooperate with computer software for communication (purchased separately).

Executive Standard

GB/T 2679.8-1995,GB/T 4857.4,GB/T 4857.3,BB/T 0032-2006


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	5N~5kN
5	Indication accuracy	±1%(Range 5%~100%)
6	Measured Area	300×300 mm
7	Work Capacity	5~300 mm
8	Parallelism Between Plates	≤0.5mm
9	Press Speed	50mm/min(1~500mm/min adjustable)
10	Return Speed	1~500 mm/min adjustable
11	Print	Built-in thermal printer
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Dimension	545×380×825 mm
14	Net Weight	62.5kg around
