• Model NO.：wl-8708
• Mass Scope of Workpiece：Single Row House Connector
• Type：Wiring Harness Color Sequence Detector
• Maxcapacity：Detection Accuracythigh Precision
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Model：Wl-8708
• Voltage Drop Range：0-200mv
• Load Current：0-40A,100A, Continuously Adjustable
• Power：AC220V,50Hz (110V Customizable)
• Transport Package：Wooden Case
• Specification：43x26x38cm
• Trademark：Crown
• Origin：China, Jiangsu
• HS Code：9026209090
• Production Capacity：50-120PCS,Min
• Package size per unit product：43.00cm * 26.00cm * 38.00cm
• Gross weight per unit product：20.000kg

Basic Info.

Model NO. wl-8708 Mass Scope of Workpiece Single Row House Connector Type Wiring Harness Color Sequence Detector Maxcapacity Detection Accuracythigh Precision Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position None Model Wl-8708 Voltage Drop Range 0-200mv Load Current 0-40A/100A, Continuously Adjustable Power AC220V/50Hz (110V Customizable) Transport Package Wooden Case Specification 43x26x38cm Trademark Crown Origin China, Jiangsu HS Code 9026209090 Production Capacity 50-120PCS/Min

Packaging & Delivery

Package size per unit product 43.00cm * 26.00cm * 38.00cm Gross weight per unit product 20.000kg

Product Description

Product description:

 WL-8708 Universal Testing Machine Plug Voltage Drop Testing Machine TESTING FOR VOLTAGE DROP Voltage detector

The wire sequence inspecting device adopts vision technology and intelligent algorithms to determine compliance with preset standards, automatically identify the color of the harness, so as to make sure the wiring sequence is 100% correct.



Model	WL-8708
Load current	0-40A/100A, continuously adjustable
Voltage drop range	0-200mV
Power	AC220V/50Hz (110V customizable)

Features:

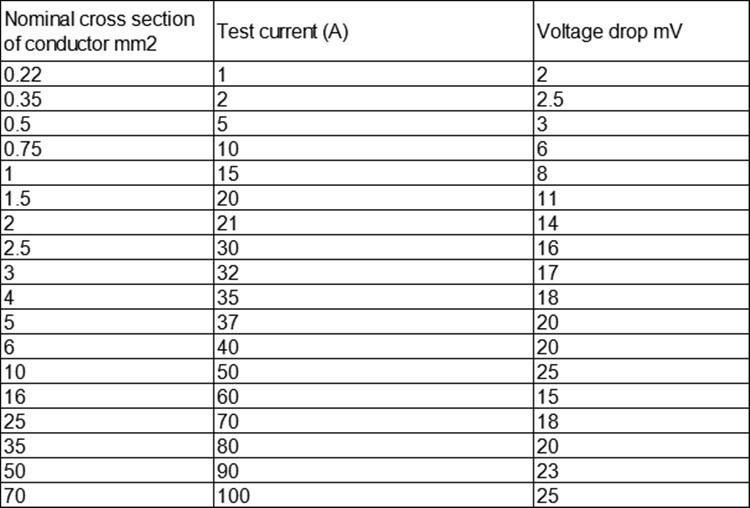

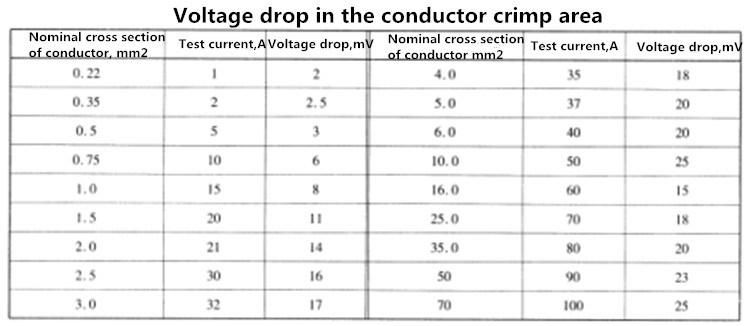

Nominal cross section of cable mm2	Test current (A)	Voltage drop mV
0.22	1	2
0.35	2	2.5
0.5	5	3
0.75	10	6
1	15	8
1.5	20	11
2	21	14
2.5	30	16
3	32	17
4	35	18
5	37	20
6	40	20
10	50	25
16	60	15
25	70	18
35	80	20
50	90	23
70	100	25

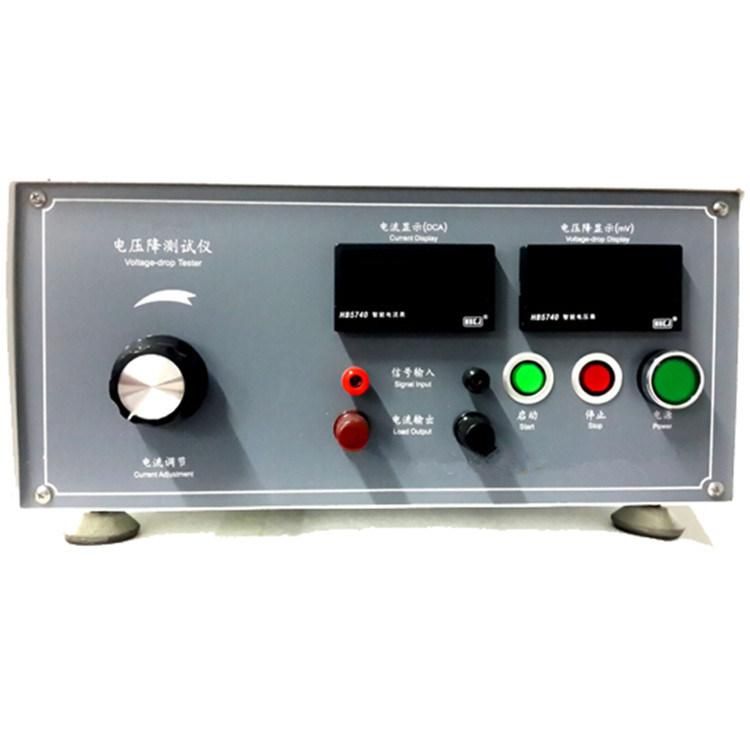

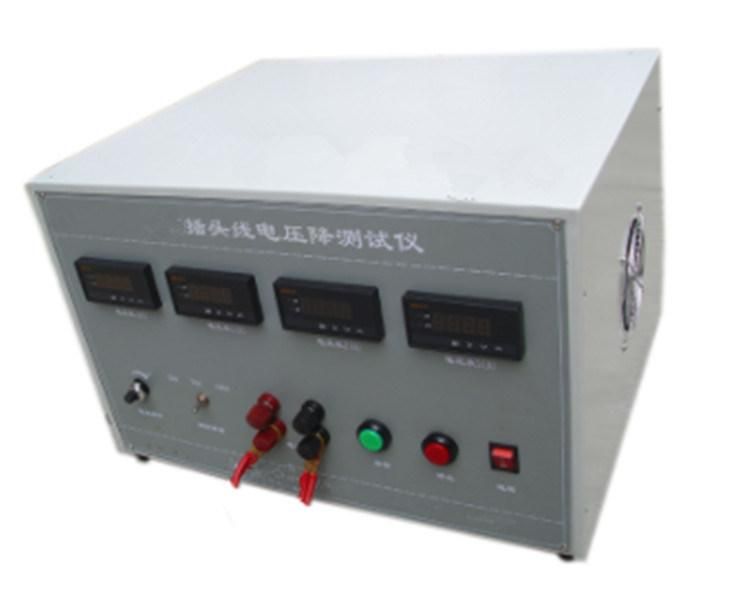

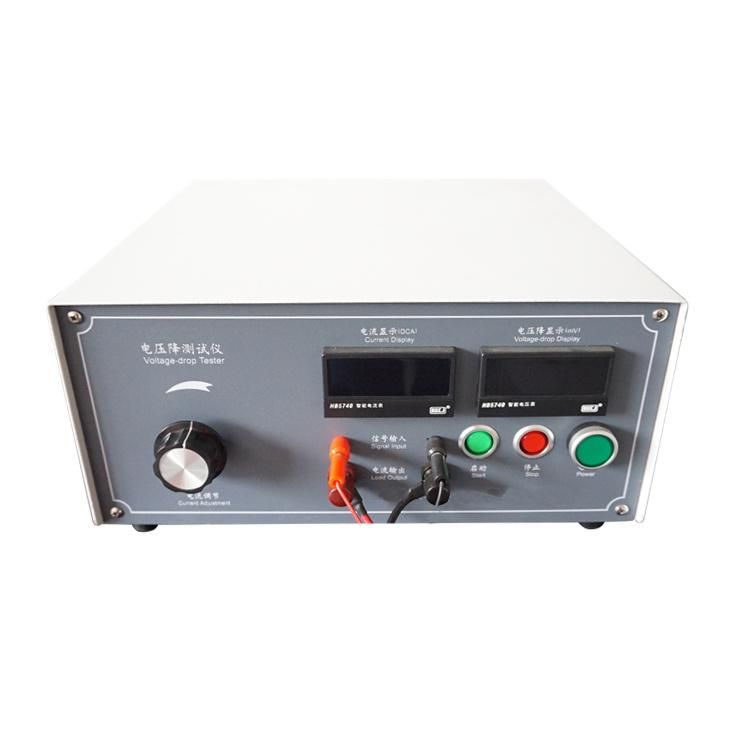

Product show:

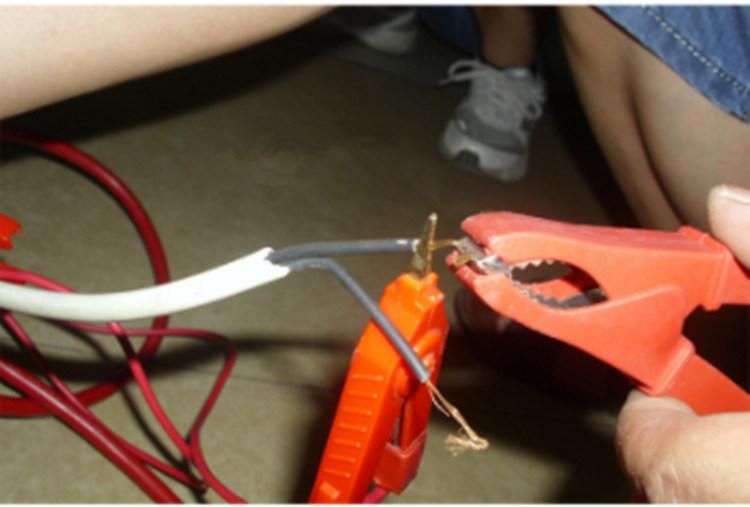

Machine processing samples:

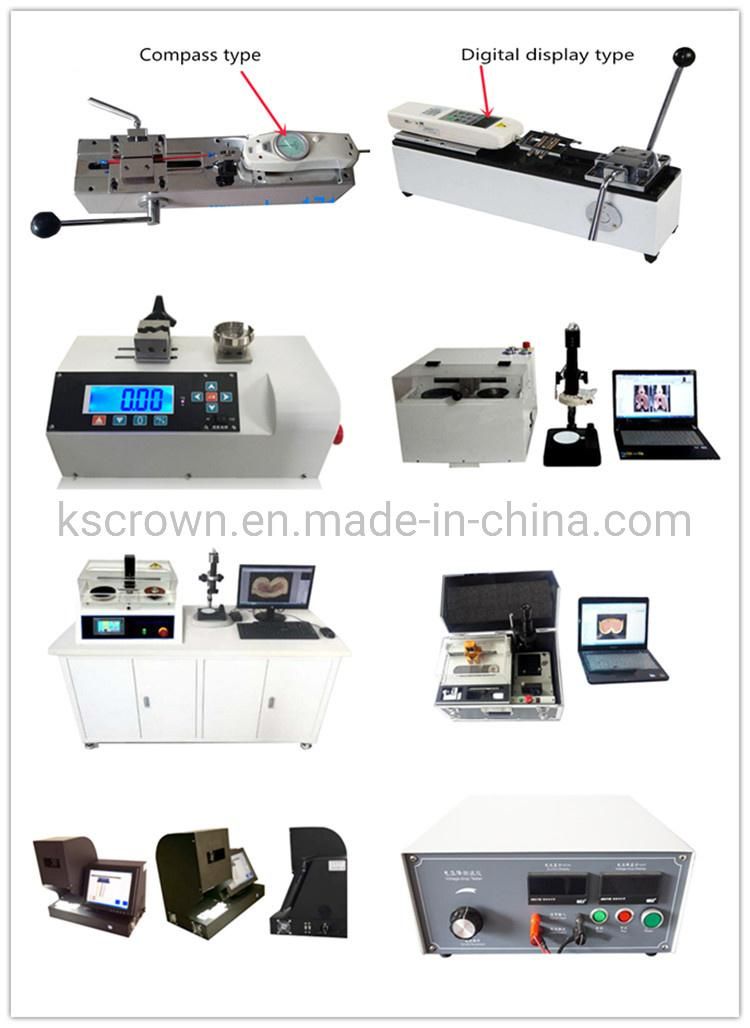

Related products:

Company information:


Certificate:



Contact:

Pls contact Suzhou Crown suki for price inquiry or any other questions/doubt.
