• Model NO.：CS-4
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Name：Tablet Friability Tester
• Keywords：Tablet Friability Tester
• Rotation Speed：20-90 Rpm
• Power：220V,50Hz
• Cylinder Number：2 PCS
• Cylinder Height：156mm
• Transport Package：Export Standard Wooden Case
• Trademark：BSIT-GM
• Origin：Made in China
• HS Code：9027809000
• Production Capacity：7 Sets,Week
• Package size per unit product：30.00cm * 40.00cm * 20.00cm
• Gross weight per unit product：30.000kg

Basic Info.

Model NO. CS-4 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Name Tablet Friability Tester Keywords Tablet Friability Tester Rotation Speed 20-90 Rpm Power 220V,50Hz Cylinder Number 2 PCS Cylinder Height 156mm Transport Package Export Standard Wooden Case Trademark BSIT-GM Origin Made in China HS Code 9027809000 Production Capacity 7 Sets/Week

Packaging & Delivery

Package size per unit product 30.00cm * 40.00cm * 20.00cm Gross weight per unit product 30.000kg

Product Description

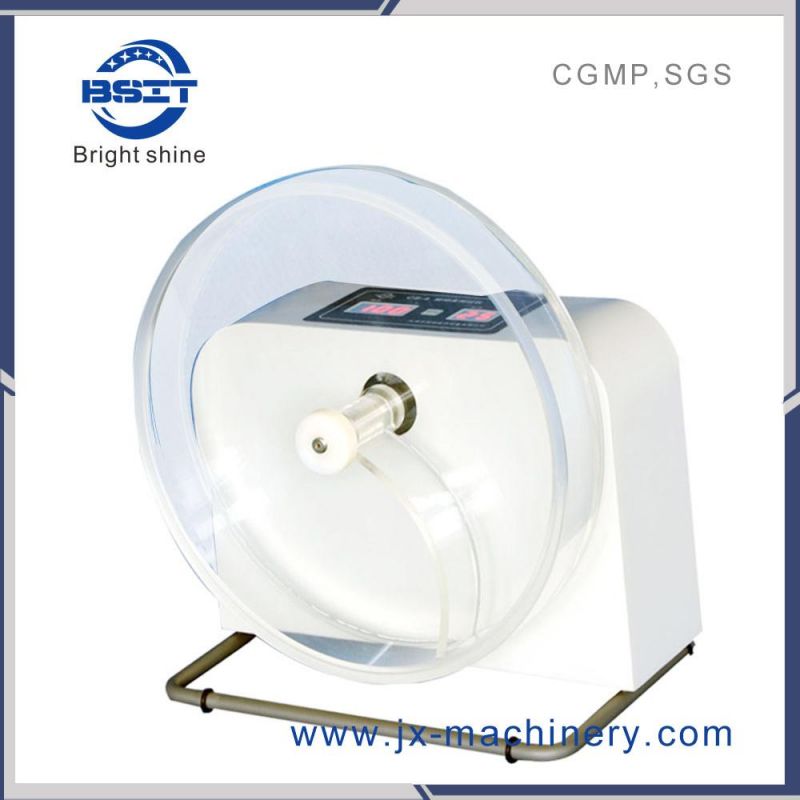

                        CS-4 TABLET FRIABILITY TESTER




Product Description
CS series of instruments are used for detecting friability/ abrasion of tablet.

Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(Friability tester )Q/12XQ0189-2010

Features:
Single drum runs. Auto stop at timing point.
The drum is made of high quality hyaline acryl.
The speed and revolution of the drum is constant, Either preset or real data is displayed on the LED.
A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Automation: auto-test, auto-diagnose, auto-alarm.

Technical Parameter


Cylinder number	1
Cylinder inner diameter	Φ286mm
Cylinder depth	39mm
Tablet fall height	156mm
Rotation speed	25rpm
Rotation Speed accuracy	±1rpm
Rotation count	100r
Rotation count accuracy	±1r
Power	220V/ 50Hz/ 50W
Dimension	300×200×340mm3

Carton package


Wooden case for more than 3sets of tester


Main technical data:


Model	CS-1	CS-2	CS-3	CS-4
Cylinder number	2	2	2	1
Cylinder inner diameter	Φ286mm	Φ286mm	Φ286mm	Φ286mm
Cylinder depth	39mm	39mm	39mm	39mm
Tablet fall height	156mm	156mm	156mm	156mm
Rotation speed	(20-90)rpm	25rpm	25rpm	25rpm
Rotation Speed accuracy	±1rpm	±1rpm	±1rpm	±1rpm
Rotation count	(10~900)r	100r	10-900r	100r
Rotation count accuracy	±1r	±1r	±1r	±1r
Power	220V/ 50Hz/ 60W	220V/ 50Hz/ 40W	220V/ 50Hz/ 40W	220V/ 50Hz/ 50W
Dimension	370×300×340)mm3	370×300×340mm3	370×300×340mm3	300×200×340mm3
