• Model NO.：BE-8106
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Drop Ball Weight：9.1kg±0.1kg
• Dropping Height：0~770mm
• Control Mode：PLC Touch Screen Control+ Remote Control
• Crossing Bar Diameter：15.8 mm
• External Material：1.5mm Thickness Cool-Rolled Plate
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space500x300x800(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8479899990
• Production Capacity：100set ,Month

Basic Info.

Model NO. BE-8106 Control Computer Control Weight 0-100Kg Power Source AC220V Drop Ball Weight 9.1kg±0.1kg Dropping Height 0~770mm Control Mode PLC Touch Screen Control+ Remote Control Crossing Bar Diameter 15.8 mm External Material 1.5mm Thickness Cool-Rolled Plate Transport Package Each Set Protected with Resin Fiber and PP Film, T Specification Test Space500x300x800(customizable) Trademark DGBELL Origin Guangdong China HS Code 8479899990 Production Capacity 100set /Month

Product Description

Laboratory Battery Impact Testing Machine

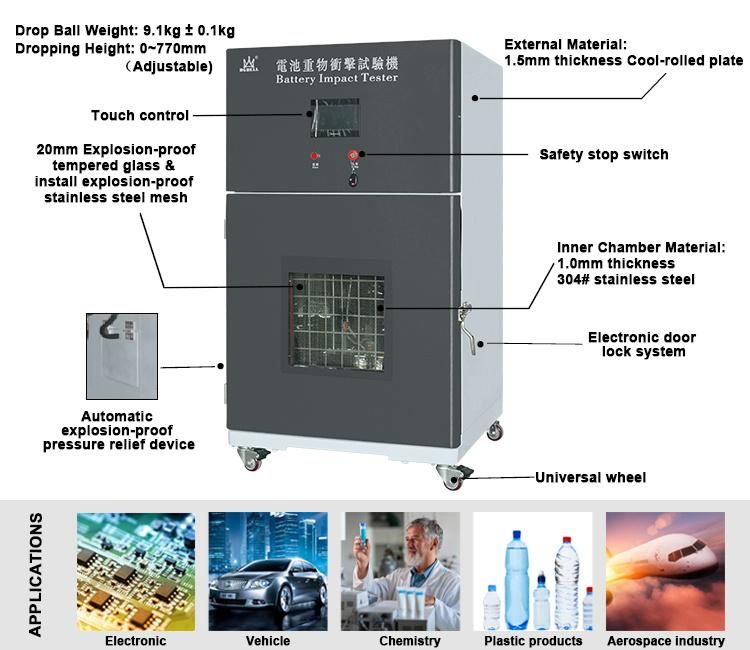

Product show

Application

DGBELL's battery impact tester tests the safety of the battery through different weights, different heights and different impact areas. After a series of tests on this battery impact tester, the battery must not have flame or explosion. This device is a kind of battery testing equipment popular among battery manufacturers.

Test requirements

• UL 1642
• UN 38.3
• GB31241-2014
• IEC62133

Performance parameters

Model	BE-8106
Structure	All-in-one structure, the door uses explosion-proof lock and explosion-proof chain
Drop Ball Weight	9.1kg±0.1kg
Dropping Height	0~770mm(Adjustable)
Control Mode	PLC Touch Screen Control+ Remote Control
Crossing Bar Diameter	15.8 mm
Inner Cabinet Dimension	W500 X D300 X H800mm
Effective Test Space	W300XD300XH300mm
Internal Material	1.0mm thickness SUS 304# Stainless steel (reinforced). Total 80mm thickness together with external chamber.
External Material	1.5mm thickness Cool-rolled plate
Air Vent	Diameter: 150mm, at the top of chamber back
Observation Window	390 X 360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)
Lifting Mode	Electric
Top / Bottom Impact Surface	Steel Plate
Test Space	W300XD400XH200 mm
Overall Dimensions	W940XD780XH1620 mm
Power Supply	AC 220V / 2.0KW
Data Output	Test data can be output by USB flash disk directly .
Safety Protection	Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
Options	Temperature acquisition system, voltage acquisition system, video monitoring system
