• Model NO.：CMX-SM-K
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Needle
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Model Range 1：DN15-DN50
• Model Range 2：DN50-DN100
• Customization：Available
• Transport Package：Plywood Cases
• Specification：depends on size
• Trademark：CAMINIX
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. CMX-SM-K Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Needle Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Top Model Range 1 DN15-DN50 Model Range 2 DN50-DN100 Customization Available Transport Package Plywood Cases Specification depends on size Trademark CAMINIX Origin China HS Code 9031809090 Production Capacity 200 Sets/Year

Product Description

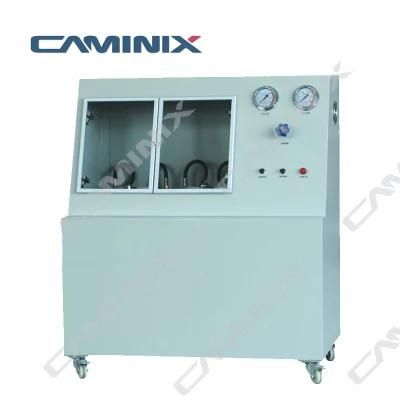

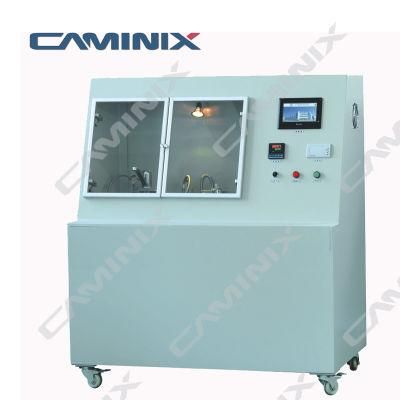

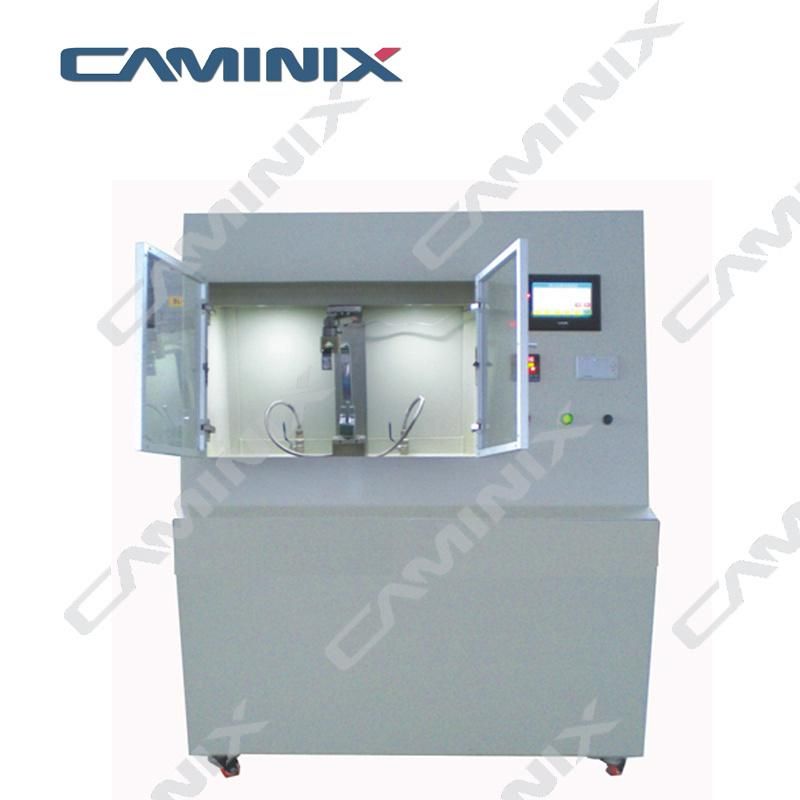

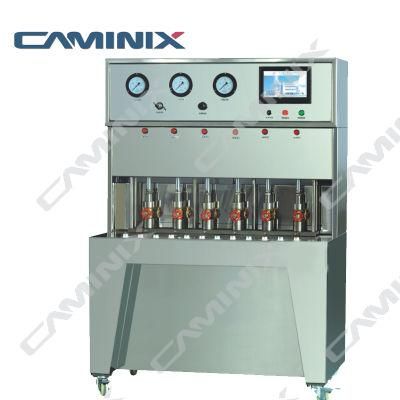

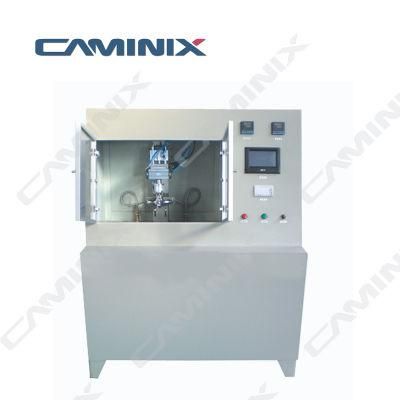

Kitchen Facuets Lifetime valve testing machine

Overview

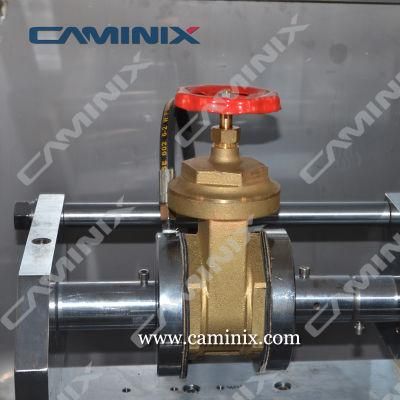

This testing equipment can detect the life of valve cores of various applicable ball valves, gate valves, globe valves, faucets, angle valves, etc. In the design structure, refer to the standards in the valve industry, and improve the redundancy of the equipment as much as possible. It meets various types and standards of valve testing. According to GB18145-2003, JG/T3040-1997, and with reference to ASM.ISA and relevant European standards, the data of the automatic control motion state is directly read out by the touch screen, and the screen test data can be printed at any time, and the test data accuracy rate is 100% %, the movement is stable, and the clamping and disassembly of the tested product is simple and convenient.

Providing high product quality at competitive prices is an effective approach, which requires cost-effective use of the resources owned by various businesses. The cost-effectiveness of valve testing means that, at the lowest cost and expense, it is possible to test not only a variety of valve types using a variety of standards, but ideally also valves of the same valve type but from different manufacturers. Only 100% inspection can ensure the reliable quality of every valve.


Test items

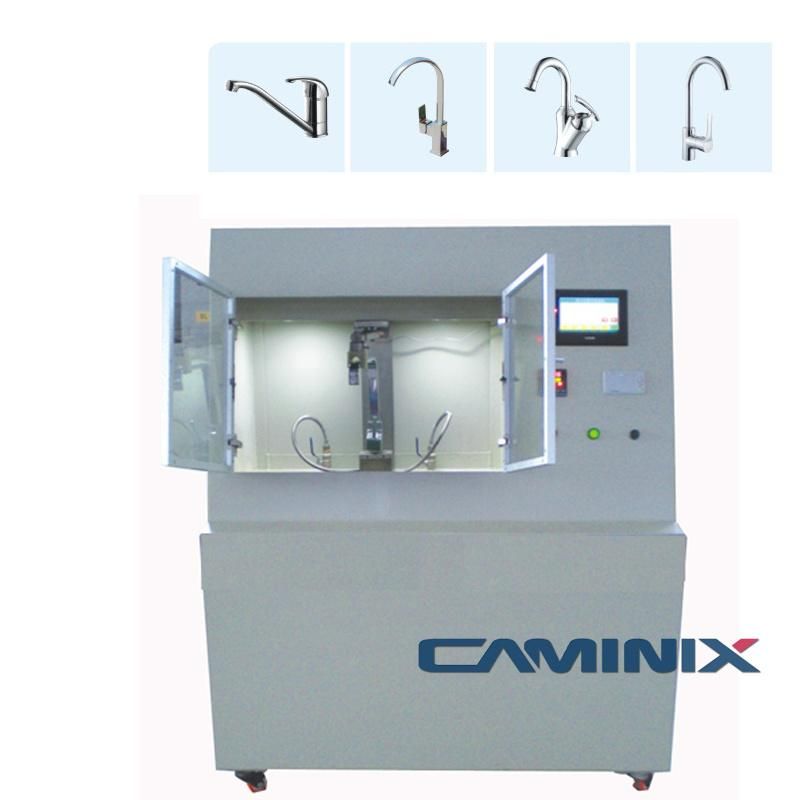

Sanitary Single Handle Kitchen Tap

Automatic Sensor faucet Brass Body Chromed Finish Cold Water Tap

Ceramic Cartridge Water faucet

Kitchen Faucets


Technical Details:

Device name: Valve Lifetime Tester
Device model: CMX-SM-K
Dimensions : Length 1250mm*width 800mm*height 1500mm (according to the size of the product)
Shape material:Welded PV panels, profile painted.
Operating Voltage: 380V (standard) 50HZ, single-phase DC24V
working pressure: External 0.6-0.8Mpa
Working water pressure:0.1-0.35Mpa (configured according to product requirements)
Pump power: 0.75KW
water source: Normial Water
test station: Single station
rotation angle:0-60° (set according to customer needs)
Tooling materials:304 stainless steel
cycle:1-100000 times

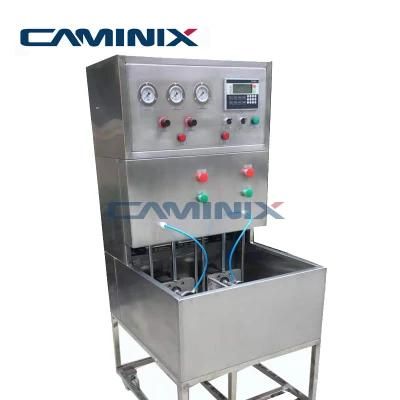

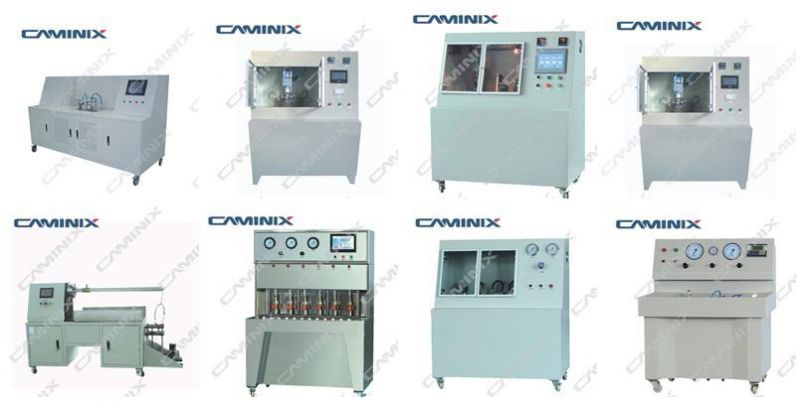

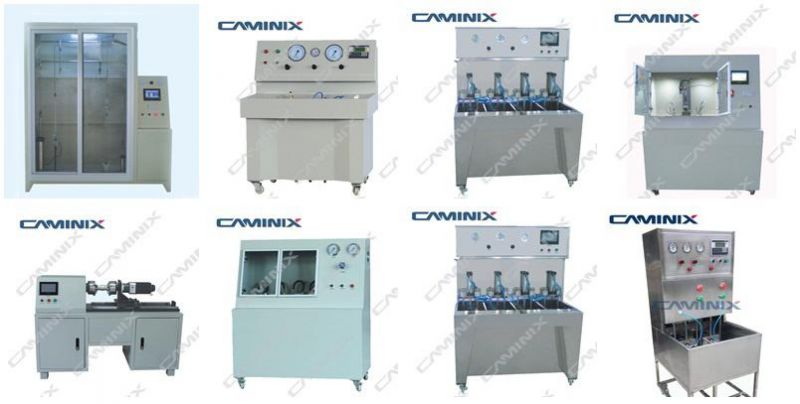

We also have other types of faucet testing machines . Please contact us for more infromation.
We can also customize the machine for you too if you send us the detailed request.
