• Model NO.：HD-F750-D
• Control：Computer Control
• Power Source：AC220V
• Sample Size：380*300*50mm
• Roller Loading：130n±2n (Adjustable)
• Counter：0-999,999 Cycles
• Roller Size：Diameter 76±1.3mm, Length: 457mm
• Test Speed：15±1.5 Cycles, Min
• Rolling Stroke：300±10 mm
• Base Platen：500mm X 500mm
• Power：1 Phase, AC 220V, 50±10% Hz
• Transport Package：Strong Wooden Case
• Trademark：Haida
• Origin：Guangdong, China
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-F750-D Control Computer Control Power Source AC220V Sample Size 380*300*50mm Roller Loading 130n±2n (Adjustable) Counter 0-999,999 Cycles Roller Size Diameter 76±1.3mm, Length: 457mm Test Speed 15±1.5 Cycles/ Min Rolling Stroke 300±10 mm Base Platen 500mm X 500mm Power 1 Phase, AC 220V, 50±10% Hz Transport Package Strong Wooden Case Trademark Haida Origin Guangdong, China Production Capacity 150 Sets Per Month

Product Description

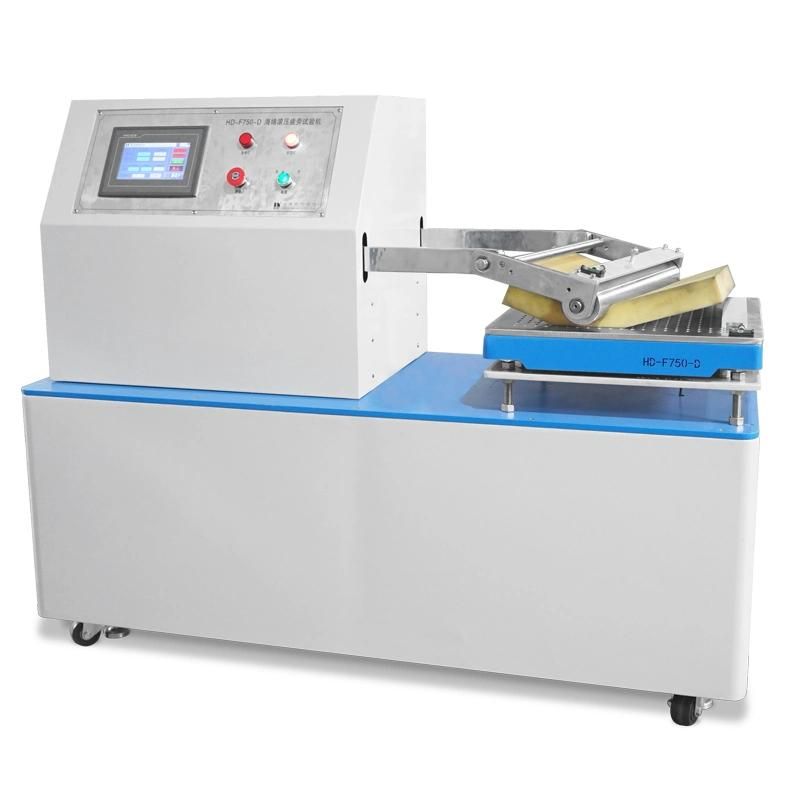

JIS K 6400 Foam Dynamic Roller Compression Fatigue Testing Machine
Products description:
The Roller Shear Machine is used to determine the resistance to compression fatigue of flexible cellular polyurethane using dynamic roller compression test.  The Roller Shear Machine fatigues a specimen dynamically with a constant force deflecting the material both vertically and laterally.  It has been used for many years in the foam industry to determine the percentage loss in thickness.

Test standard:
ASTM D1564 • AS 2282.12 Clause 3.3, Method B • ASTM D3574 • JIS K 6400


Specification:

Sample size	380*300*50mm
Roller loading	130N±2N (adjustable)
Counter	0-999,999 cycles
Test cycles	Procedure A: 8000 cycles; Procedure B: 20000 cycles
Roller size	Diameter 76±1.3mm, Length: 457mm
Test speed	15±1.5 cycles/ min
Rolling stroke	300±10 mm
Base Platen	500mm x 500mm
Control method	PLC, touch screen controller, can set force and test cycles
Power	1 phase, AC 220V, 50±10% Hz

(The table parameters for the company Standard Model parameters, we support customer customization parameters)



The introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Customer Feedback:


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
