Tablet and Capsule Dissolution Tester (RC-6)

Liaoyang Bright Shine Pharmaceutical Machinery Imp & Exp Co., Ltd.
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine

Base Info

  • Model NO.：RC-6
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Name：Tablet and Capsule Dissolution Tester
  • Speed Range：20-200 Rpm
  • Vessels and Poles：Six Vessels and Six Poles
  • Temperature Range：Ambient to +45.0 Degree
  • Temperature Stability：+-0.3 Degree
  • Preset Timing：Nine Points(1-999)Min
  • Time Accuracy：+- 0.5min
  • Paddle Radial Run-out：+- 0.5min
  • Basket Radial Run-out：+-;1.0mm
  • Dimension：(960X320X480) mm3
  • Transport Package：Export Standard Wooden Case
  • Specification：Meet GMP Standard
  • Trademark：BSIT
  • Origin：Made in China
  • HS Code：9027809000
  • Production Capacity：7 Sets,Week
  • Package size per unit product：40.00cm * 30.00cm * 40.00cm
  • Gross weight per unit product：50.000kg

Description

Speed range(20~200)rpmSpeed accuracy2rpmTemperature rangeambient to +45.0 ºCTemperature Stability±0.3 ºCPreset timingNine points(1-999)minTime accuracy± 0.5minPaddle radial run-out±0.5mmBasket radial run-out:±1.0mmPower:220V/50Hz/1200W or 110V/60Hz/1200wDimension(960X320X480) mm³

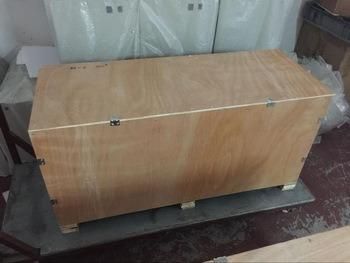

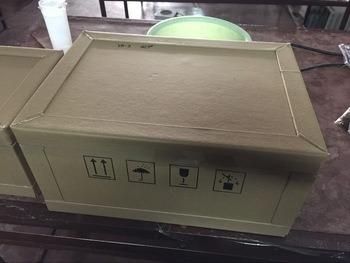

packing sample as following ( carton packing or wooden packing)

Tablet and Capsule Dissolution Tester (RC-6)
Tablet and Capsule Dissolution Tester (RC-6)
Tablet and Capsule Dissolution Tester (RC-6)
Tablet and Capsule Dissolution Tester (RC-6)
Tablet and Capsule Dissolution Tester (RC-6)
Tablet and Capsule Dissolution Tester (RC-6)
Tablet and Capsule Dissolution Tester (RC-6)
