Computer Control Electronic Double Single Tensile Strength Tester
Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.- After-sales Service:All Life
- Warranty:All Life
- Max Diameter of Workpiece:1000mm
- Mass Scope of Workpiece:10000kg
- Type:Tensile Testing Machine
- Maxcapacity:<1000KN
Base Info
- Model NO.:WDW-50
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Digital
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:No
- Transport Package:Standard Export Package
- Specification:550*480*1600mm
- Trademark:GY
- Origin:Qingdao China
- HS Code:9027809900
- Production Capacity:100sets,Month
Description
WDW-50
WDW-100
Max. load
10KN
20KN
30KN
50KN
100KN
Load range
2%-100% of full scale
Load accuracy
better than ±1%
structure
Double column double spaces
control
computer
deformation precision
better than ±1% (±0.5% Optional)
Displacement Resolution
0.01mm
Test speed
0.01-500mm/min(can be customized)
Tensile space
700mm (can be customized)
Compression space
700mm (can be customized)
test width
400mm
Power supply
AC220V±10%,50Hz(can be customized)
Dimension(mm)
700*580*1720
700*580*1850
Weight
about 450kg
about 550kg
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics

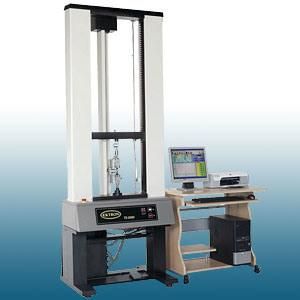

Pictures of electronic tensile testing machine:
