• Model NO.：ZCAR-702-007
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Power Supply：220V 50Hz
• Size：400*300*180mm3
• Warranty：1 Year

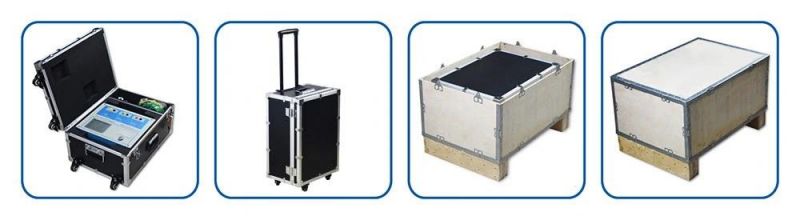

• Transport Package：Aluminum Alloy Packing Box Inside Andwooden Box O
• Trademark：KvTester
• Origin：China
• HS Code：9031809090
• Production Capacity：500,Month

Alternating current outputOutput accuracy0.5 magnitudePhase current output (effective value)0~40AThree parallel phase current output (effective value)0~120APhase current value with long time under permission (effective value)10APhase current maximum power output400VAThree parallel phase current maximum power output1000VAThree parallel phase current maximum work time10sFrequency range (base wave)20~1000HzHarmonic frequency number1~20 timeDirect current outputOutput accuracy0.5magnitudeCurrent output0~±10A/each phase, 0~±30A/every three parallelMaximum output of load voltage20VAlternating current outputOutput accuracy0.5 magnitudePhase voltage output (RMS)0~120VLine voltage output (RMS)0~240VPhase voltage/line voltage power output80VA/100VAFrequency range (base wave)20~1000HzHarmonic frequency number1~20 timesDirect voltage outputOutput accuracy0.5 magnitudePhase voltage output amplitude0~+160VLine voltage output amplitude0~+320VPhase voltage/line voltage power output70VA/140VAThe switch quantity and time measurementSwitch parameters input (7ways)Empty contact: 1~20mA, 24v
Power contact access: "0": 0~+6V; "1": +11V~+250VSwitch parameters output (2couples)DC: 220V/0.2A
AC: 220V/0.5ATime measurementMeasuring range: 0.1ms~9999s
Measuring accuracy: 0.1msVolume and weightAppearance and size400mm×300mm×180mmWeight of a single machine22kgWorking environmentSupply powerAC 220V±10%,50/60HzEnvironmental temperature-10ºC~+50ºC



Equipment Accessories List



Accesories ListUnitQuantityHost Set1Special test linesSet1PC control software CDpcs1Special USB serial portpcs2Aluminum alloy boxes pcs1User Manualpcs1Quality test reportpcs1Certificate of Originpcs1Fusepcssome
