• Model NO.：YT-H4E
• Power Source：AC220V
• Power Supply：AC (100~240)V
• Measuring Range：0-5mm
• Resolution：0.001 mm
• Communication Interface：RS232 Interface
• Print：Built-in Thermal Printer
• Dimension：320(L)*310(W)*400(H)mm
• Net Weight：26.5kg
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9031809090

Basic Info.

Model NO. YT-H4E Power Source AC220V Power Supply AC (100~240)V Measuring Range 0-5mm Resolution 0.001 mm Communication Interface RS232 Interface Print Built-in Thermal Printer Dimension 320(L)*310(W)*400(H)mm Net Weight 26.5kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9031809090

Product Description

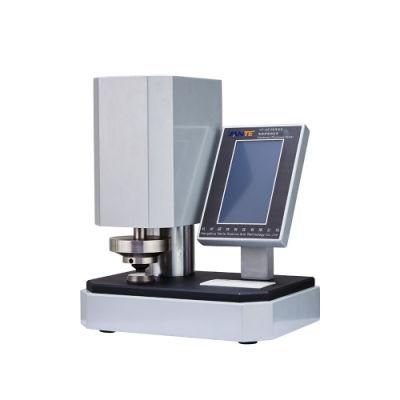

The Film Electronic Thickness Tester is a special instrument for measuring film thickness. It is widely used for measuring the thickness of sheet materials; it is an ideal test equipment for packaging, scientific research and product quality supervision and inspection industries and departments.


Product Features

One-click test, easy to understand
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast
The rising and falling speed of the probe can be adjusted
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results
Communication with computer software (purchased separately)

Application Range
Film


Executive Standard

GB/T 451.3,QB/T 1055,GB/T 24328.2,ISO 534,GB/T 6672


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	(0~4)mm
5	Resolution	0.0001mm
6	Indication error	±1um
7	Indication variability	±1um
8	Contact area	50 mm²
9	Contact pressure	(17.5±1)kPa
10	Probe descending speed	(0.5~10)mm/s Adjustable
11	Print	Built-in thermal printer
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Dimension	360×245×430 mm
14	Net Weight	27kg around
