• Model NO.：YT-H4E
• Power Source：AC220V
• Power Supply：AC (100~240)V
• Measuring Range：0-5mm
• Resolution：0.001 mm
• Communication Interface：RS232 Interface
• Print：Built-in Thermal Printer
• Dimension：320(L)*310(W)*400(H)mm
• Net Weight：26.5kg
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9031809090

Basic Info.

Model NO. YT-H4E Power Source AC220V Power Supply AC (100~240)V Measuring Range 0-5mm Resolution 0.001 mm Communication Interface RS232 Interface Print Built-in Thermal Printer Dimension 320(L)*310(W)*400(H)mm Net Weight 26.5kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9031809090

Product Description

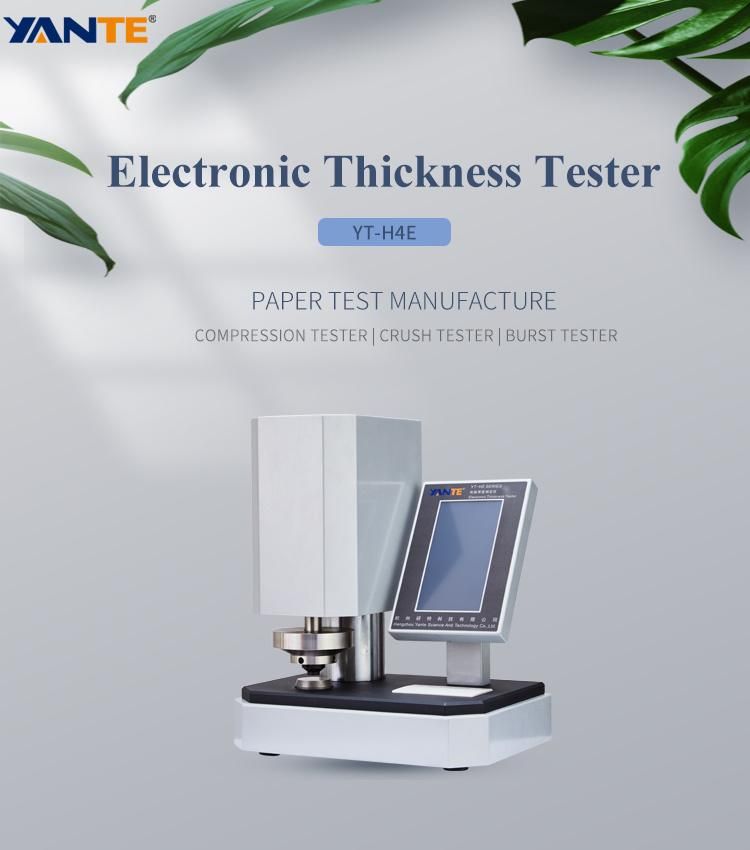

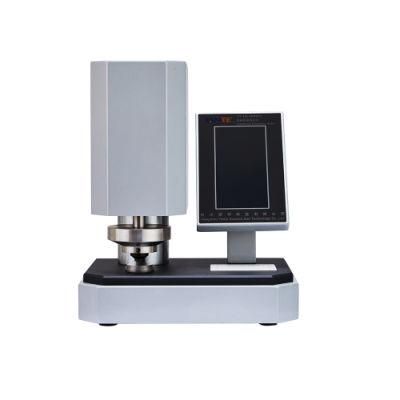

Electronic Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials.It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.


Product Features

One-click test, easy to understand
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast
The rising and falling speed of the probe can be adjusted
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results
Communication with computer software (purchased separately)

Application Range

All kinds of paper



Executive Standard

GB/T 451.3,QB/T 1055,GB/T 24328.2,ISO 534


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	(0~5)mm
5	Resolution	0.001mm
6	Indication error	±0.0025mm or ±0.5%
7	Indication variability	≤0.0025mm or ≤0.5%
8	Parallelism between measuring surfaces	≤0.002mm
9	Contact area	(200±5) mm²
10	Contact pressure	(100±10)kPa
11	Probe descending speed	(0.5~10)mm/s Adjustable
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	360×245×430 mm
15	Net Weight	27kg around
