ASTM D4807 Mechanical Impurity Tester of Petroleum Products and Additive
Shanghai Changji Geological Instrument Co., Ltd.- Application：Petroleum Products and Additive
- Power：1000 W
- Detection：Mechanical Impurity
- Transport Package：by Carton or by Wooden Case
- Specification：390 mmx260 mmx 590 mm
- Trademark：SHANGYI
Base Info
- Model NO.：SYD-511B
- Origin：China
- HS Code：9021809000
- Production Capacity：1000 Sets,Month
Description
I.Product Description
1.SummaryThe instrument is designed and made as per national standard of People's Republic of China GB/T511 and ASTM D4807 Standard Test Method for Mechanical Impurity of Petroleum Products and Additive (Weight Method). It is used to determine mechanical impurity in hydrocarbons, heavy oils, lubricating oils, and additives.
2. Main technical features
1. This instrument is composed of glass vessels, water bath, funnel, suction pump, motor and digital temperature controller. It has features such as small size, light weight, rapid heating rate and easy installation.
2. The temperature control funnel is small and light. It can save operation time and solvent.
3. Desktop structure. Simple design. Easy to use.
3.Main technical specifications
1. Power supply: AC(220±10%)V, 50 Hz
2. Heating power for water bath: 1000 W
3. Temperature control range for water bath: Room temperature~90 ºC, adjustable
4. Bath temperature display: Digitally displayed by LED
5. Temperature control accuracy for water bath: ±1 ºC
6. Temperature control range for funnel: Room temperature~90 ºC, adjustable
7. Funnel temperature display: Digitally displayed by LED
8. Temperature control accuracy for funnel: ±2 ºC
9. Size: (1) Control case: 390 mm× 260 mm× 590 mm
(2) Water bath: 390 mm× 290 mm× 370 mm
10. Ambient temperature: ≤35 ºC
11. Relative humidity: ≤85%
12. Total power consumption: no more than 1200 W
4.Full Set List
II.Ccompany Profile

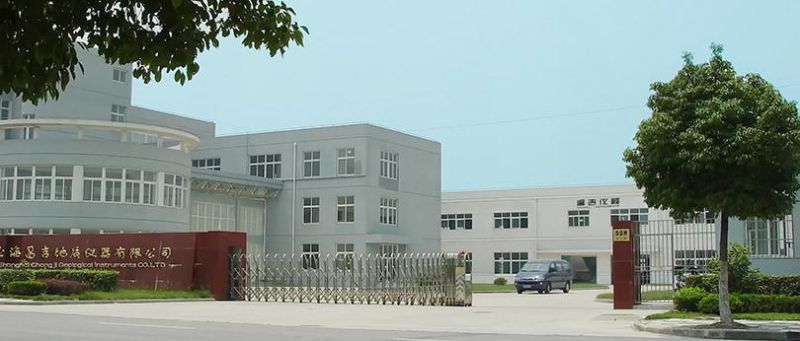

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.
Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
The highway instrument three major index:penetrometer,ductility tester and softening point tester.Changji's products are with the advanced technical features and fit the ISO, ASTM, IP, GB and other international standards.Recent years,we develop smart instruments with the communication port to realize the remote control, transmitting test parameters and networking management of Laboratory equipments. Changji pays more attentions to develop and invest in the technology innovation.So far,we have gotten the China National Invention Patent 1,the No. ZL 2005 1 0024291.9;Utility Model Patent 2,the No.ZL 2004 2 0023460.8 and ZL 2013 2 0365490.6.Other two national innovation patents and two ulility model patents are in the process of the official investigation.Changji's products become more and more stabilization and elegant after many years development and research.So selecting Changji,you choose the precipitation of time and satisfication.

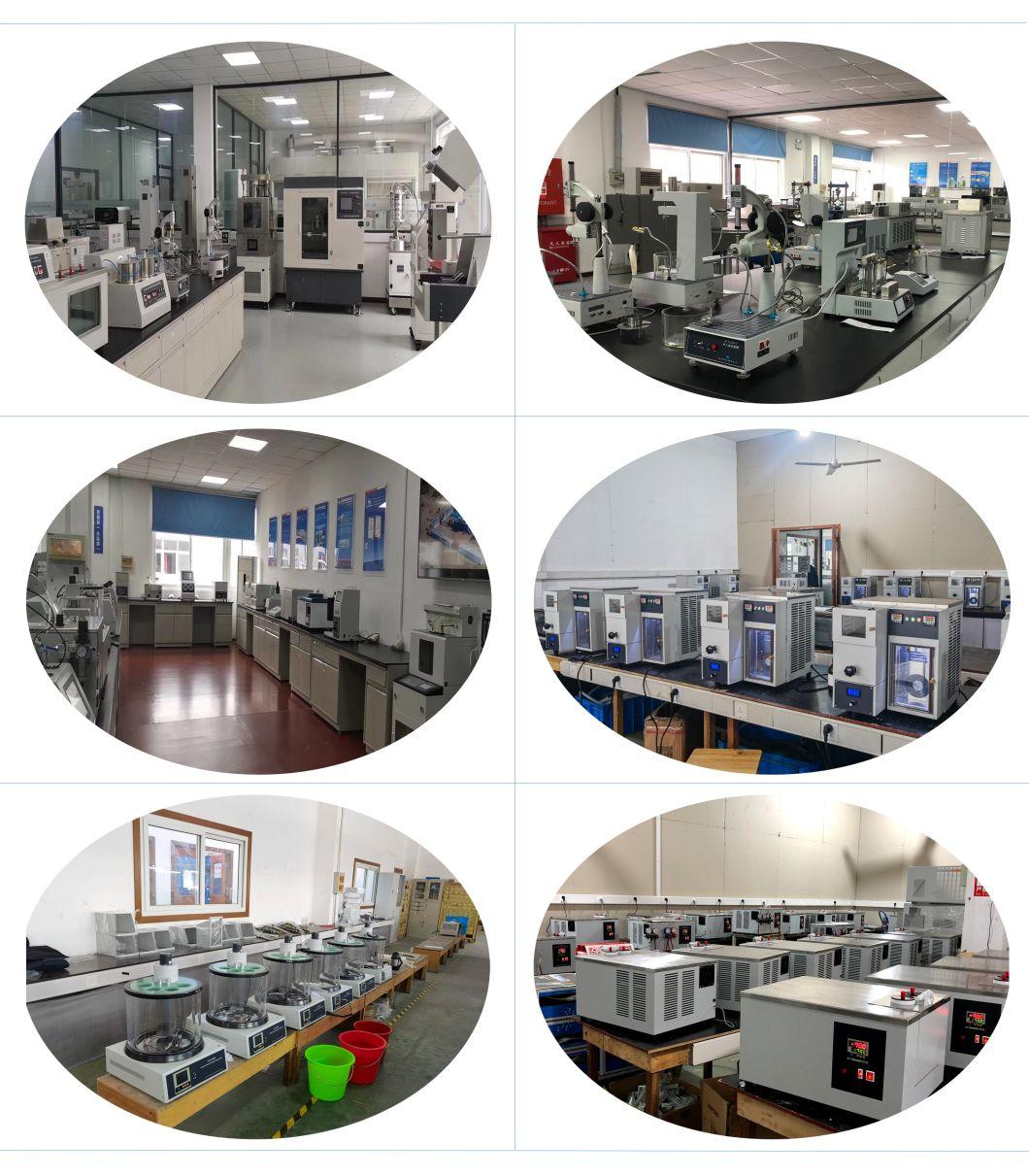

III.Sample Room and Work Shop

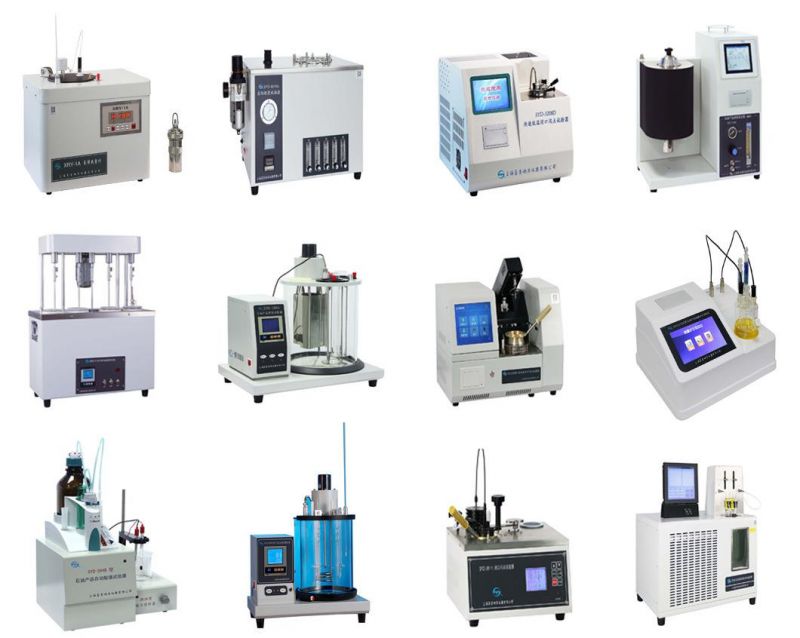

IV. Hot Products
V. FAQ
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
2. How can I choose the right one for me?
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
VI. Certificate
