Rb-1 Lab Suppository Thaw Tester Machine
Liaoyang Bright Shine Pharmaceutical Machinery Imp & Exp Co., Ltd.- Type:Universal Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Digital
Base Info
- Model NO.:RB-1
- Control:Computer Control
- Weight:0-100Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Number of Sleeve:3 Units
- Hyaline Sleeve:High:60mm ,Diameter Inner: 52mm
- Power:220V,50Hz
- Transport Package:Export Standard Wooden Case
- Specification:Meet GMP Standard
- Trademark:BSIT
- Origin:Made in China
- HS Code:9027809000
- Production Capacity:7 Sets,Week
Description
Basic Info.
Model NO. RB-1 Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Number of Sleeve 3 Units Hyaline Sleeve High:60mm ,Diameter Inner: 52mm Power 220V,50Hz Transport Package Export Standard Wooden Case Specification Meet GMP Standard Trademark BSIT Origin Made in China HS Code 9027809000 Production Capacity 7 Sets/WeekProduct Description

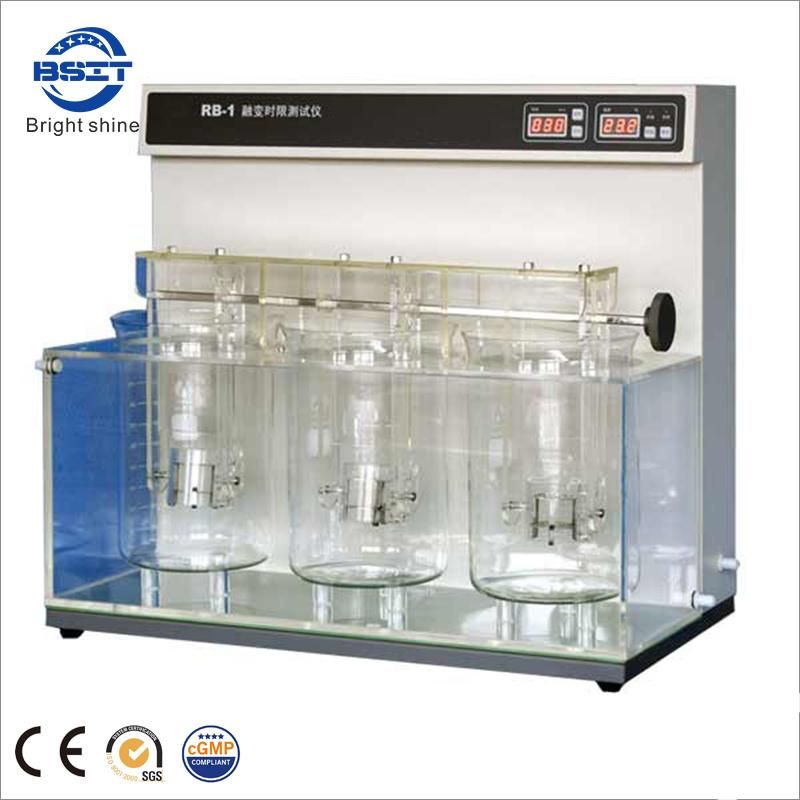

RB-1 THAW TESTERProduction Description
It is used for testing thaw of the suppository etc.
Applicable standards:
National standard( Chinese codex ) /2015
Features:
The three net frames can be synchronously turn artificially.
Hyaline sleeve and net frame are made of stainless steel. The overturn machine is up-to date and it can be turned flexibly.
A MPU is used to automatically control the temperature.
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
Temperature and time controlled automatically.
Timing at will. The preset and real time data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
Indicating and forecasting when turning over at preset time ,alarming at fault.
Technical Parameter :
Numbers of sleeve | 3units |
Hyaline sleeve | high 60mm diameter inner 52mm |
The net frame of stainless steel | two pieces diameter 50mm each 39 holes of 4mm |
Turn frequency | 1/10min |
Timing range | (10~900)min |
Timing accuracy | ±0.5min |
Temperature range | (20-45)ºC |
Accuracy of controlling temperature | ±0.5ºC |
Capacity of beaker | 4L |
Power | 220V/ 50Hz/ 1000W |
Dimension | (660*380*600)mm3 |
Carton package
Wooden Case for more than 3sets of testers
