• Model NO.：THV-1000-F
• Humidity Range(Optional)：20%~98%R.H.
• Temperature Control Accuracy：+,-0.5degree C
• Humidity Accuracy：+,-2.5% R.H.
• Temperature Rising Speed：0.1~3.0degree C,Min
• Temperature Falling Speed：0.1~1.5degree C,Min
• Vibration System：Customize
• Transport Package：Wooden Case
• Specification：THV Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141090
• Production Capacity：10 Sets,Month

Overview Product Description

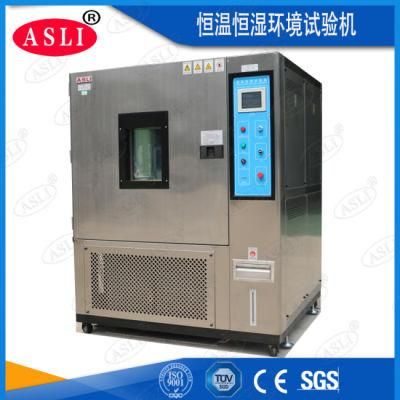

LCD Touch Screen Combined Temperature Humidity Vibration Chamber matched with appropriate vibration test bench to meet with Respective corresponding environmental test requirements of temperature, humidity and vibration; Extensively applied in aviation and aerospace, shipping, electronics, automobile car, telecommunications, Industry.

Environmental Vibration Shaker Combined Test Chamber Feature:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design;
Independent console
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3. LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models
Of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
 Product ParametersEnvironmental temperature humidity test chamber Test ParameterModelTHV-408(A~F)THV-1000(A~F)THV-1500(A~F)Internal Dimension
W*H*D(mm)600*850*8001000*1000*10001500*1500*1500External dimension
 W*H*D (mm)850*1950*21001300*2200*24001800*2400*3000Temperature RangeLow temperature: (A:25degree C; B:0degree C;
C:-20degree C; D: -40degree C; E: -60degree C; F:-70degree C)
High temperature:100degree C(150degree C)Humidity Range20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is
a special optional condition, need Dehumidifier)Indication Resolution/
Distribution uniformity
of temperature and humidity0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H.Control Accuracy of
 temperature and humidity±0.5degree C; ±2.5% R.H.Temperature Rising/
Falling VelocityTemperature rising approx.  0.1~3.0degree C/min ;
temperature falling approx.  0.3~1.0degree C/min;
( Falling velocity Min.1.5degree C/min is optional  )Internal and External MaterialMaterial of the inner box is SUS 304# stainless steel,
of the outer box is stainless steel or  SEE cold-rolled
steel with paint coated.Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials Cooling SystemWind cooling or water cooling; single segment compressor for -40degree C, double segment compressor for -70degree CProtection DevicesFuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protectionOptional AccessoriesInner door with operation hole(Optional) , Recorder(optional), Water Purifier, DehumidifierVibration Test EquipmentChoose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for referencePowerAC380V 3phase  5 Lines, 50/60HZ
For High frequency vibration tester: Detailed Photos

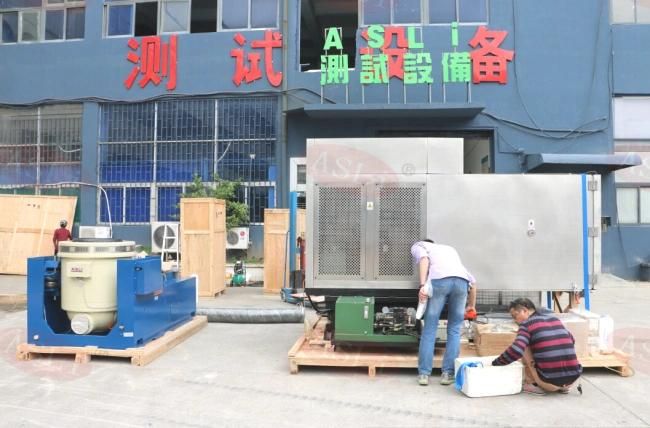

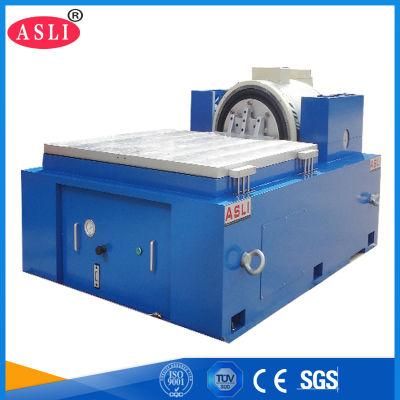

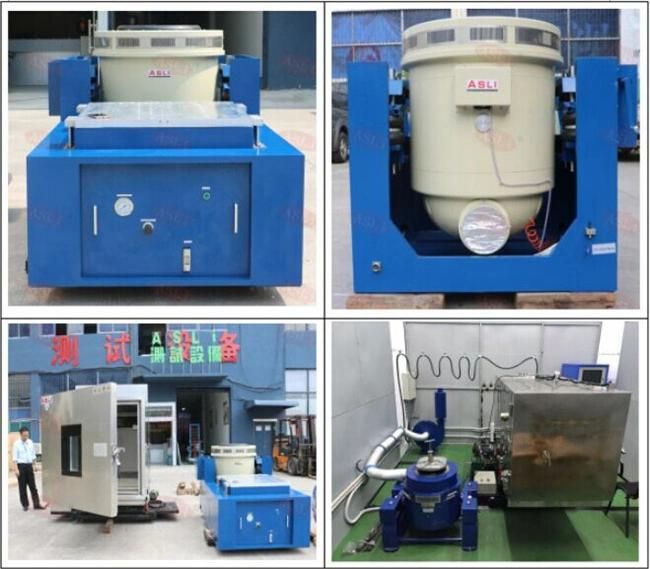

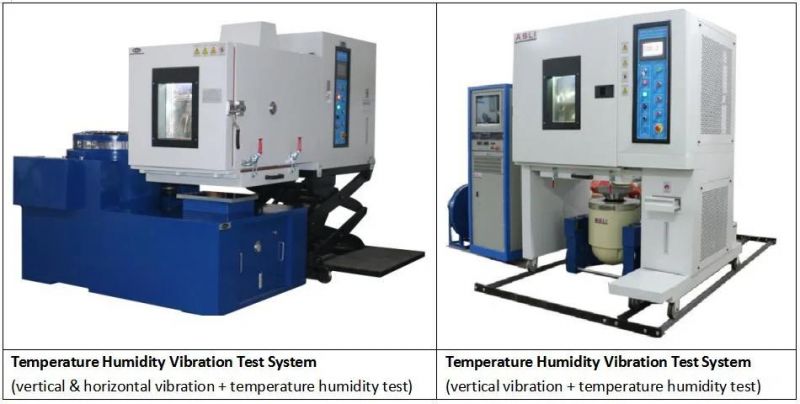

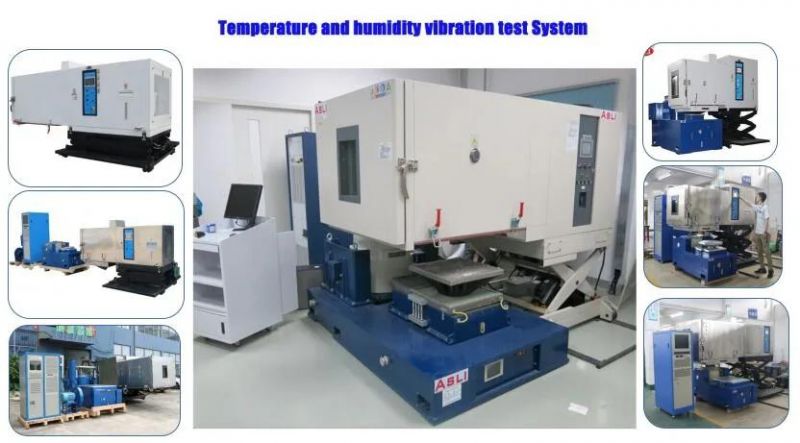

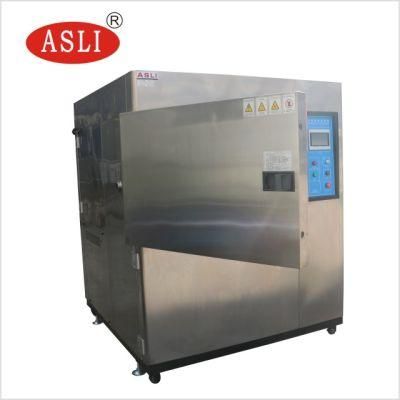

Environmental Temperature Humidity Electrodynamic Vibration Shaker Pictures:

Packing Detail:



Environmental Temperature Humidity Electrodynamic Vibration Shaker Combined Tester Chamber
