• Model NO.：TS-252-B
• Low Temperature：-55degree 30mins
• Conversion Time：Within 5sec
• Precision Temperature Control：+,- 0.5degree
• Distribution Accuracy：+,- 2degree
• Heating Method：Air Heating
• Transport Package：Wooden Case
• Specification：TS Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：100 Sets,Year

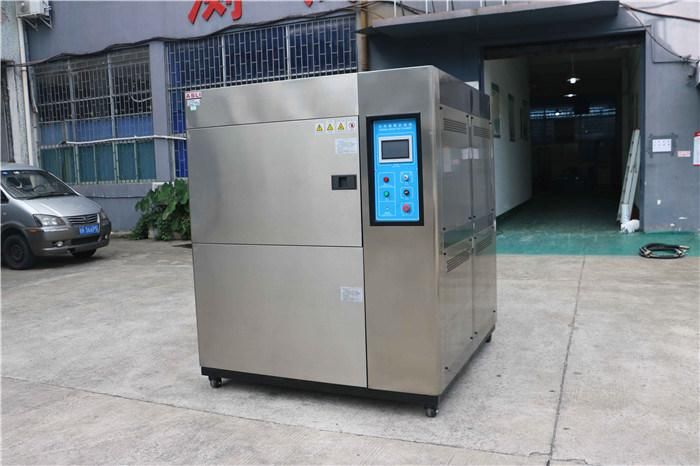

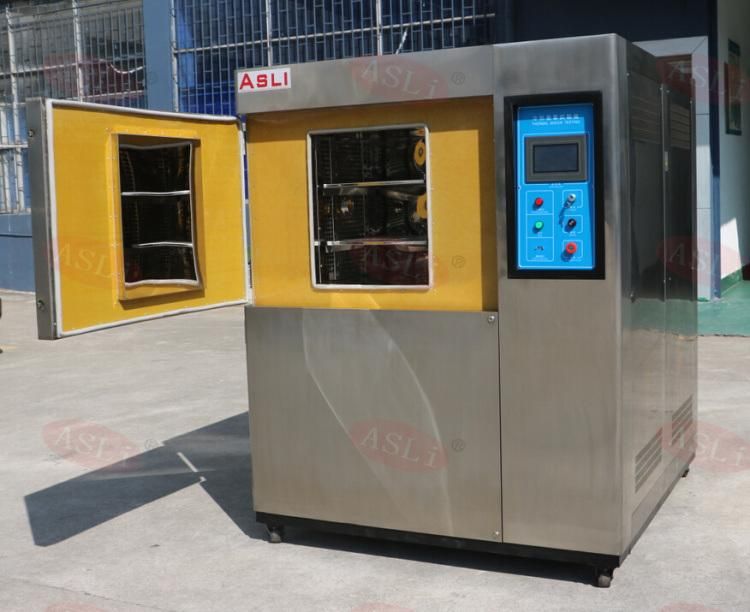

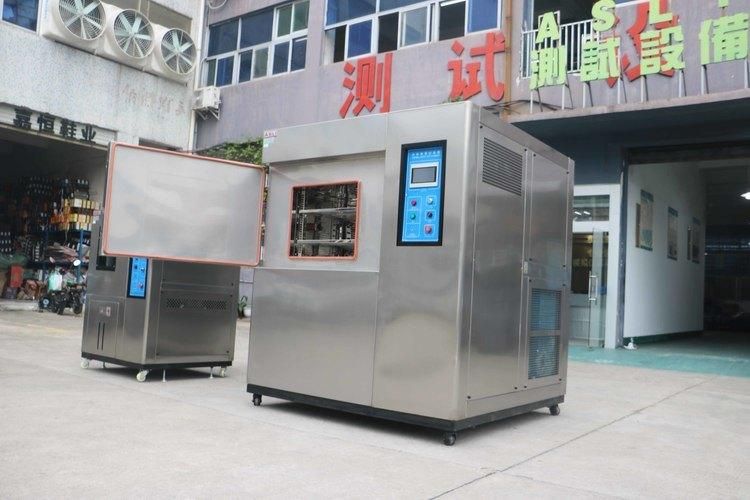

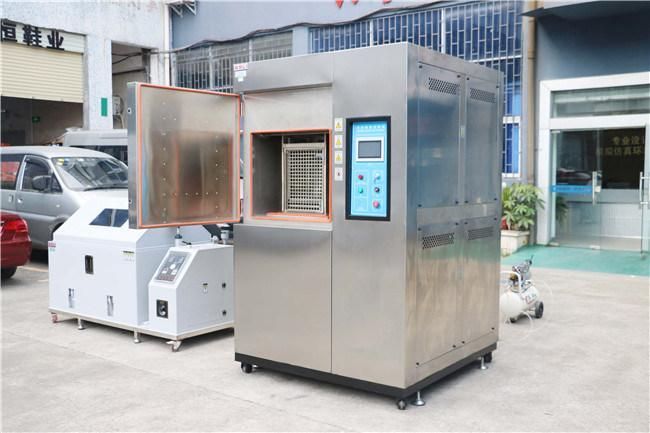

Laboratory Climatic Thermal Shock Test Chamber technical parameters:

 TS-42(A~C)

TS-80(A~C)

TS-150(A~C)

TS-252(A~C)

TS-450(A~C)

Internal Dimension

WxHxD ( mm)

400x350x350

500x400x400

600x500x500

700x600x600

800x750x750

External Dimension

WxHxD (mm)

1400x1800x1400

1550x1950x1550

1600x2000x1700

1700x2100x1750

1800x2200x1900

Temperature Range of Testing zone

Type A:-40 °C~+150°C

( 200°C is Optional)

Type B:-55°C ~+150°C

( 200°C is Optional )

Type C:-65°C ~+150°C

( 200°C is Optional)

High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);

Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC

Exposure Time of High/ Low  Temperature

Exposure Time of High Temperature: +60°C ~ +150°C (200°C is Optional) 30Mins

Exposure Time of Low Temperature : -10°C~Type A:-40°C / Type B -55°C /  Type C -65°C 30Mins

Temperature of Heat-Storing Slot / Heating Time

RT~200°C/About  45mins

Temperature of Cool-storing Slot / Cooling Time

RT~-75°C/ About 100mins

Temperature Recovery Time / Conversion Time

≤5min/≤5sec

Control Accuracy / Distribution Uniformity

±0.5°C/±2°C

Internal and External Material

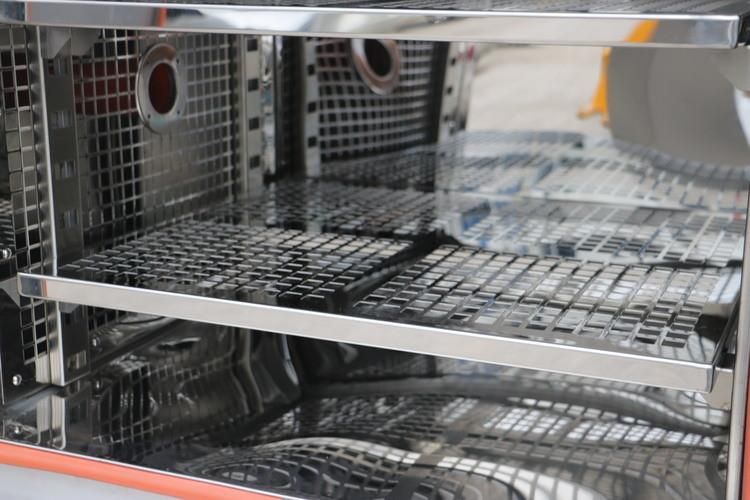

Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.

Insulation Material

High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials

Mechanics

P.I.D+S.S.R+ Micro-computer balanced temperature control system

Cooling System

Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

Security Protection Devices

Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator

high-pressure protective switch , failure warning system, electronic alarm

Accessories

viewing window(special order)

Compressor

French 'Tecumseh' Brand, Germany Bizer Brand

Power

AC220V  ,50/60HZ, AC380V  ,50/60HZ

Weight (Approx)

450

600

750

950

1200

Application for Laboratory Climatic Temperature Thermal Shock Test Chamber :

Thermal Shock Test Equipment is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service: feedback within 2 hours after get the call.


ASLI Door to Door Service:

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Laboratory Climatic Temperature Thermal Shock Test Chamber for PCB Industry is our star products, and we had obtained the CE certification for this machine.
