• Model NO.：RHD-120
• External Material：Paint Coated
• Max. Temperature：300 Degree
• Control Method：Micro Pid+SSR+Timer
• Storage Shelf：Two Layers
• Transport Package：Wooden Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：100 Sets,Month

Product ParametersTechnical Parameters

Model

RHD - 45

RHD - 60

RHD - 90

RHD - 120

Internal Dimension

W×H×D(mm )

450×400×400

500×600×500

600×900×500

800×1200×700

External Dimension

W×H×D(mm )

650×900×550

700×1200×650

850× 1600×700

1200× 1680×900

Interior and Exterior

 Material

Interior material is SUS 304# stainless steel,

exterior is stainless steel or  SEE cold-rolled steel with paint coated.

Temperature Range

(R.T.+15°C) to 200 °C;  (300 to 500°C is optional)

Indication Resolution/

Distribution Uniformity

of Temperature

0.1°C/±2.0°C;( When temperature is 100°C)

Control Accuracy of

Temperature

±0.5°C;

Temperature Rising

 Velocity

Temperature rising velocity: from R.T. to 200°C,needs approx. 35mins

Control Method

Micro PID+SSR+Timer

Storage Shelf

 Two layers

Viewing Window

When temperature is RT to 200°C ,with viewing widow

When temperature is 200°C to 500°C ,without viewing widow

Power

AC 220V 50/60HZ ;    AC 380V  50/60HZ

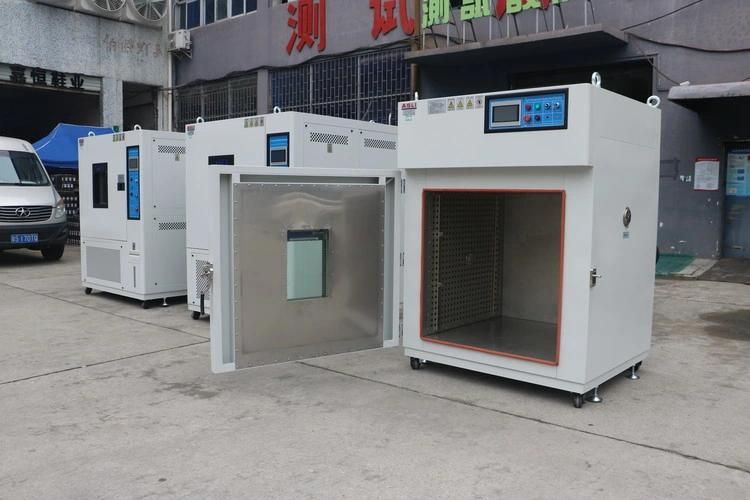

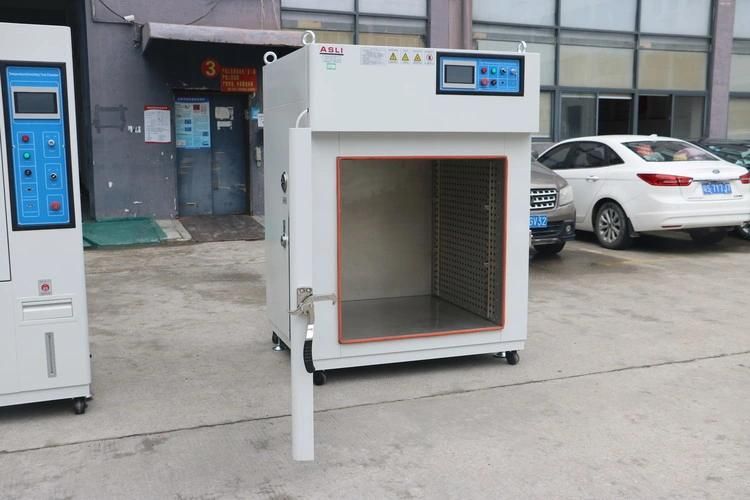

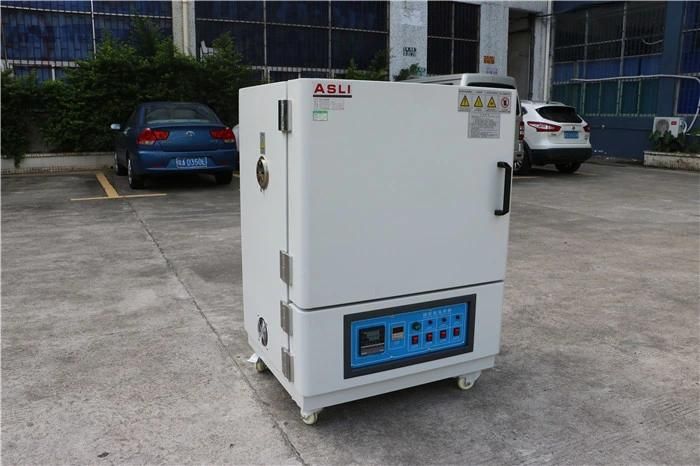

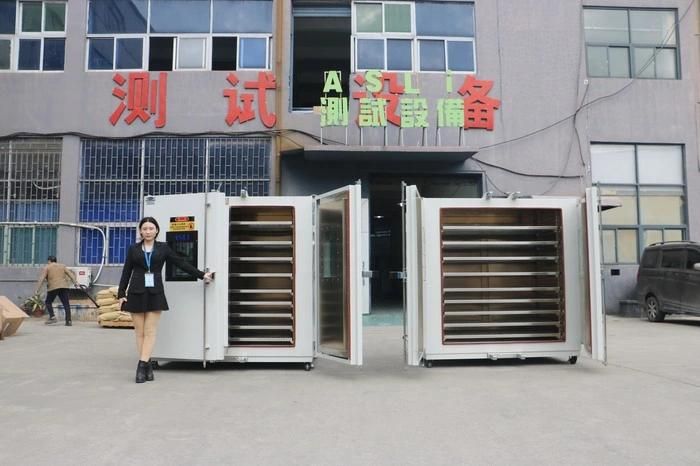

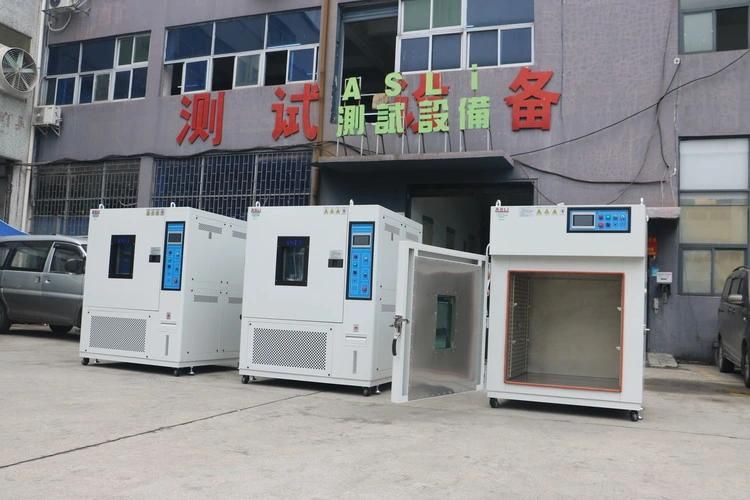

High Temperature Heating Oven Features:
1. Automatic temperature control with digital thermal-sensor

2. Excellent thermal insulation property of ovens wall, lower energy consumption,

3.  Be able to pre-set temperature, digital temperature display with LED panel.

4. Temperature value flashes on indicator when reach preset value.

5.  Circulation fan facility to keep even temperature and uniform heating

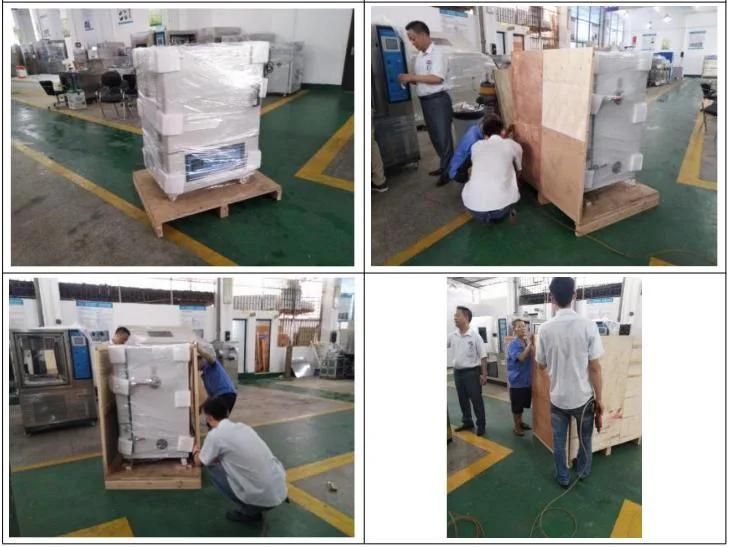

Packing Detail:

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.


Customers' Visit ASLi Factory:

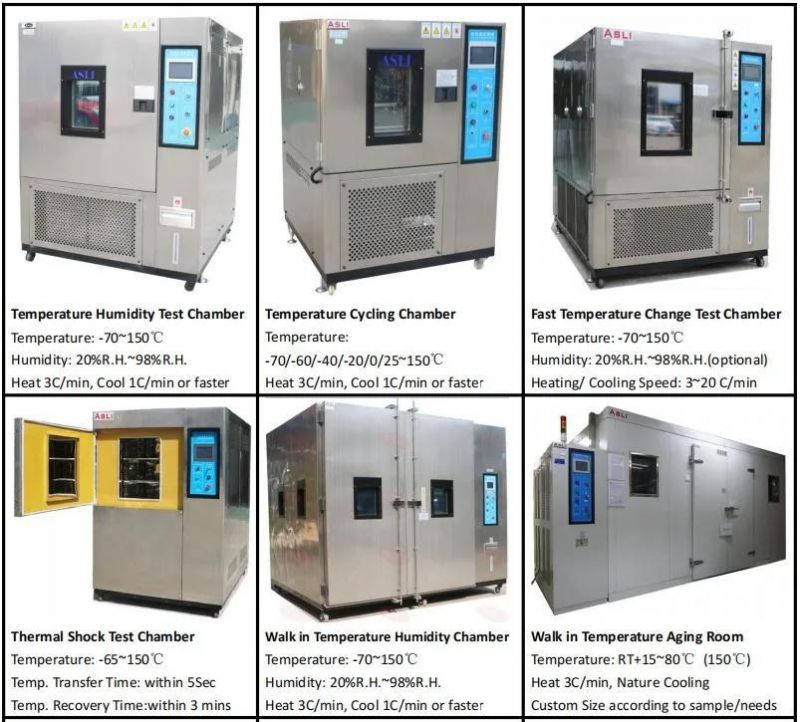

More ASLI Products:


any needs about High Temperature Controlled Heating Oven for Industrial Drying, please feel free to contact us.
