• Model NO.：XT-48BN
• Power Supply：AC (100~240)V (50,60)Hz 50W
• Sample Size：Test Plate Diameter Should Not Be Less Than 30mm W
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Net Weight：12kg
• Transport Package：Wooden Cases, Inner Plastic Films Wrapped
• Specification：380(L)*260(W)*400(H)mm
• Trademark：YANTE
• Origin：Hangzhou, China
• HS Code：9027500000

Basic Info.

Model NO. XT-48BN Power Supply AC (100~240)V (50/60)Hz 50W Sample Size Test Plate Diameter Should Not Be Less Than 30mm W Print Built-in Thermal Printer Communication Interface RS232 Net Weight 12kg Transport Package Wooden Cases, Inner Plastic Films Wrapped Specification 380(L)*260(W)*400(H)mm Trademark YANTE Origin Hangzhou, China HS Code 9027500000

Product Description

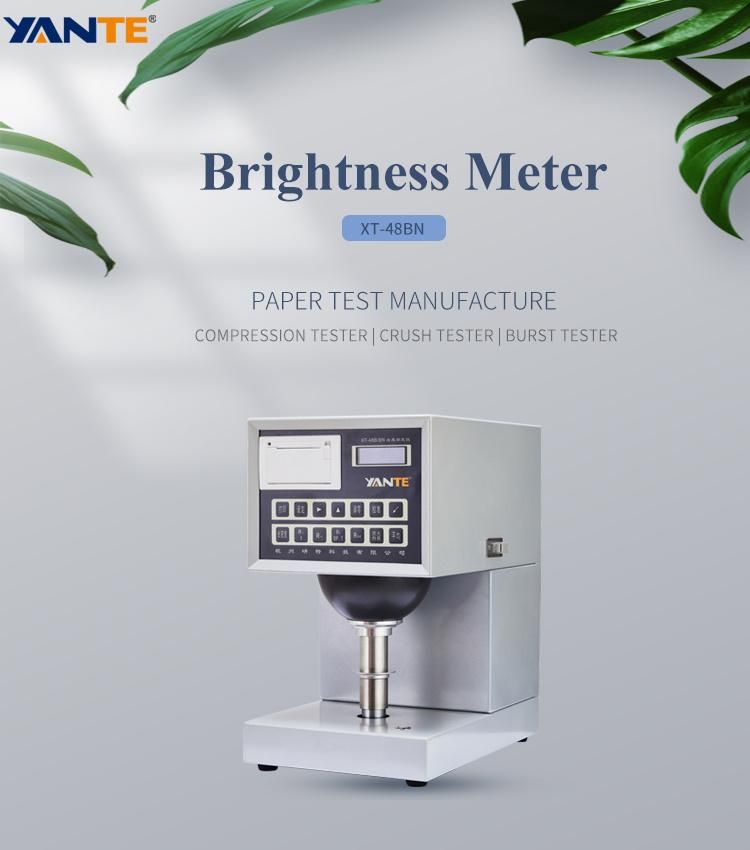

Brightness Meter is a special instrument for measuring the whiteness of objects. It is widely used in papermaking, printing, textile printing and dyeing, building materials, chemical, food, salt and other industries and other production and commodity inspection departments that need to measure the whiteness of objects.


Application Function

Measure D65 brightness (R457 blue light whiteness)Measure the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening agent)Measure opacity OP (customized), light scattering coefficient S, light absorption coefficient A, transparency (customized), ink absorption valueMeasure the brightness stimulus value Y10, which is the green diffuse reflection factor RyMeasure optical density-lead core concentration (customized small caliber)


Application Range

Paper, cardboard, plastic, pulp, salt, industrial salt; Starch, calcium carbonate, talcum powder and other powders.



Product Features

Advanced circuit design effectively guarantees the accuracy and stability of the measurement data
The instrument has a power-off protection function, and the calibration data will not be lost after power-off
This instrument is equipped with standard RS232 interface, which can be used with PC software for communication (optional)

Supporting Accessories And Consumable


NO.	Name	Model	Picture	Standard	Optional
1	Flating Powder Holder	YT-QY			√
2	Fiber Sample Holder				√

Standards

GB/T 7973,GB/T 7974,GB/T 2679,GB/T 1543,GB/T 10339,GB/T 12911,GB/T 2913
GB/T 13025.2,GB/T 22427.6,ISO 2469,ISO 2470,ISO 2471,ISO 9416


Technical Parameters

No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz,50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	128X32dot matrix LCD screen
4	Light source	Analog D65
5	Integrating sphere	Diameter 150mm
6	Sample Size	Test plate diameter ≥φ30mm while sample thickness≤40mm
7	Zero Drift	≤0.1
8	Indicating Drift	≤0.5
9	Repetitive Accuracy	≤0.02(10 consecutive tests at intervals of 10 seconds)
10	Specular Reflectance Accuracy	≤0.1
11	Print	Built-in thermal printer
12	Communication Interface	RS232(optional)
13	Dimension	365×260×425 mm
14	Net Weight	12kg around
