• Model NO.：AT528L
• Resistance Measuring Range：0.1m Ohm~200 Ohm
• Voltage Measuring Range：0.001V~50V
• Test Speed：20t,S
• Resistance Max Display：2200
• Voltage Max Display：50,000
• Name：Handheld Battery Tester
• Max Resolution：Resistance: 0.1mohm , Voltage:1mv
• Transport Package：Carton
• Specification：CE, ISO9001
• Trademark：APPLENT
• Origin：Jiangsu, China
• HS Code：9030332000
• Production Capacity：3000sets,M

 AT528LMeasurement parametersAC resistance  &  DC voltageAccuracy Resistance: 0.5% ± 5dgt, Voltage:0.5%±5dgtMeasuring rangeResistance: 0.1mΩ ~200Ω                                                                           Voltage:  0.001V~50.000VSignal sourceAC 1KHZ
open circle voltage <30mV
Measurement current <15mA                                                RangeAutomatic, Manual,Norminal with 4 ranges Test speed 20t/s Max display Resistance:2200                                                                                        Voltage:50,000Correction short-circuit correction for each rangeMax resolutionResistance: 0.1mΩ             Voltage:1mVComparatorVoltage compare separately, resistance compare separately, voltage and resistance combination compare OK/NG sorting results display. BeepTrigger mode Internal, manufal,,remoteTest terminal4 terminal shielding (2 for terminal, 2 for driving terminal) and external shielding ground sectionInterfaceBuild-in Mini-USB(Virtual serial port); charging interface, U disc interfaceOthers3.5 inches TFT color LCD display,keypad lock, data hold function,compatible SCPI order set, Adjustable background light, auto power off, 500 groups of measured data saved with one key.power supplyinput: 100-240V~50/60HZ  0.35A  output: 9V 1A DCBattery parameters8.4V, Li, 2200mAh rechargeable batteryworking time≥ 8 hoursSizes130.23mm (Width)*210.76mm (Height)*37.88mm (Depth)    650gStandard accessoriesATL501B 4-terminal kelvin test clip;

ATL909: DC adaptor;

ATL202 portable bag;

ATL804 Li- battery

*ATL105Mini-USB communication cable

*ATL501C 4-terminal test probe

*ATS525 data acquisition software  Opinion accessories


Our main products are high precision digital LCR meters/ automatic capacitance tester/ Mult-channel battery test meters for AC resistance & DC voltage/ Battery internal resistance meters/ internal resistance online test meters/ battery capacity test meters/ Precision DC resistance meters/ leakage current & insulatio resistance meters / multi-channel temperature measuring meters etc.

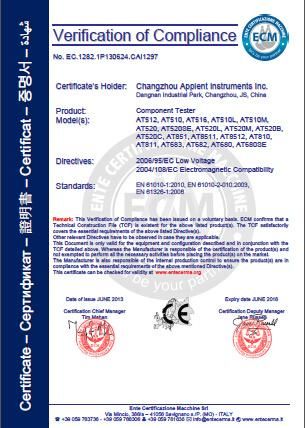

All our products are CE certificted.

Welcome contact us for more details .
