• Model NO.：YSST-600
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Operation Manual
• Inner Size(W*H*D)：1200*500*1000mm
• External Size(W*H*D)：1900*1400*1300mm
• Volume：270 Liters
• Inside Chamber Temp. Range：Rt--50degrees, +,-0.5 Degree
• Air Saturated Barrel Temp. Range：Rt--63degrees, +,-0.5 Degree
• Salt Water Tank Temp. Range：Rt.-- 50degrees, +,-0.5degree
• Exteriol/Inner Material：P.V.C&P.P
• Color：Ivory or Other
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Exterior Chamber Material：Stainless Steel Plate + Powder Coated
• Transport Package：Standard Export Strong Wood Carton
• Specification：CE, ISO, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9024800000
• Production Capacity：100 Sets,Month

SpecificationModelYSST-108YSST-270YSST-600Internal Dim.WHD(mm)600*400*450900*500*6001200*500*1000 External Dim.WHD(mm)1250*1050*9101550*1210*10601900*1400*1300Temp. Range ChamberRoom temp.-- 50ºC,±0.5ºCAirRoom temp.--63ºC,±0.5ºC SaltRoom temp.--50ºC,±0.5ºCSaturated Air Pressure(Kg/m)0.8--2.0Spray Volume(m/80cm/hr)0.5--3.0PHSalt6.5--7.2Cu(CH COOH)3.0--3.2Exter,/Inter.MaterialP.V.C & P.PSystemsSalt Spray VeicleAir+acid(base)liquid Heating SUS#304 & #316stainless steel heater+taflonControllerHydrometer,salinomerer,fog collector,glassbarOther ComponentsDigital electronic control+S.S.RSavety DevicesOverheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator lightPower Source[K.W]AC 1Ψ 220V  60/50Hz1.11.53.5Comply with ASTM B-117, B-287,B-380,JIS D-0201, D-0205, H-8681, Z-2371, K-5400

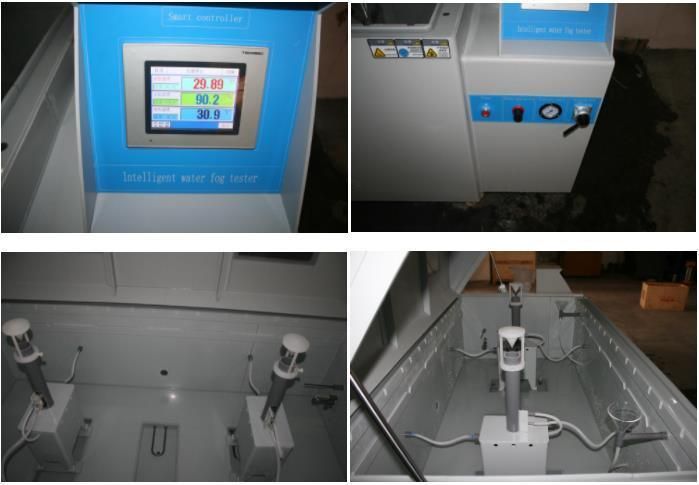

Product detail
