• Model NO.：YG(B)022G
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• No. of Weights：9
• Clamp Width：25mm
• Test Speed：60
• Sample Size：50X25mm
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YG(B)022G Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V No. of Weights 9 Clamp Width 25mm Test Speed 60 Sample Size 50X25mm Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

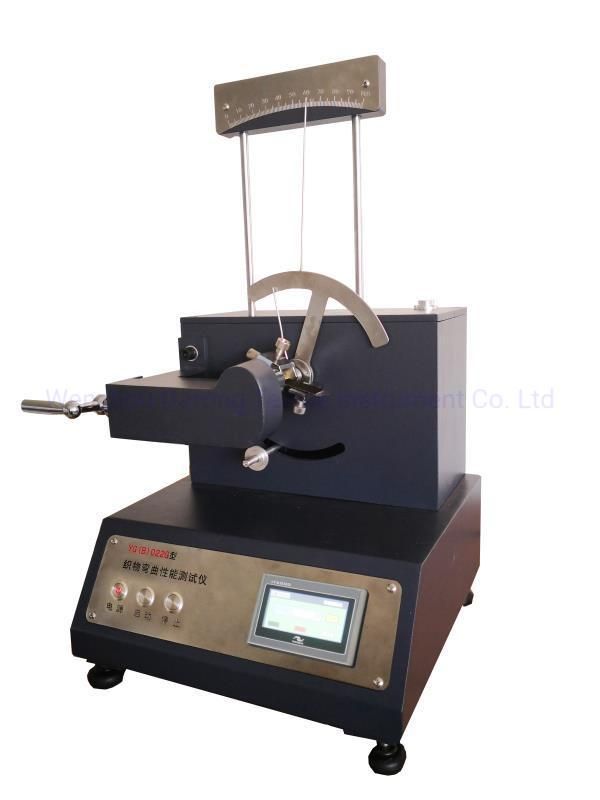

YG(B)022G    Fabric bending performance tester
[Scope of application]
Used for testing the bending properties of all kinds of textile fabrics, paperboard and other materials.

[Related standards] GB/T18318.4, etc.
1, touch screen control, easy to operate;
2, built-in automatic calculation system, avoid complex manual calculation;
3, the bending angle of the sample can be adjusted to meet a variety of tests;
4, can be manual, automatic two modes, to meet the special material requirements.
[ Technical parameters ]
1, the range :(0.43×10) ^-2 ~ (0.15×10) ²  N.m
2, weight specifications: a total of 9 weights, the quality is:
5G, 6.8G, 10G, 34G, 49.8g, 99.7g, 113.3g, 499.6g, 1000g
3, stiffness distance: that is, the distance between the clamp and the bending plate, can be changed by changing the bending plate in different directions to obtain 3mm, 6mm, 12mm three stiffness distance
4, clamp width: 25mm
5, bending Angle disk value precision: 1°
6, the test bending Angle can be set :(10-90) ° (conventional selection of 30° or 60°)
7, the test speed: 60°/min
8, sample size: length ≥50mm, width 25mm
9, test conditions: temperature (20 ~ 40)ºC relative humidity ≤ 85% RH
10, overall size: 370mm×456mm×635mm
11, instrument weight: 30kg











Technical parameters]

No. of weights	Clamp width	Test speed
9	25mm	60
