• Model NO.：YG(B)542M
• Accuracy Grade：1
• Load Way：Electronic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Number of Station：3
• Head Diameter：89mm
• Speed：200,Min
• Timming：999.9
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YG(B)542M Accuracy Grade 1 Load Way Electronic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Number of Station 3 Head Diameter 89mm Speed 200/Min Timming 999.9 Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

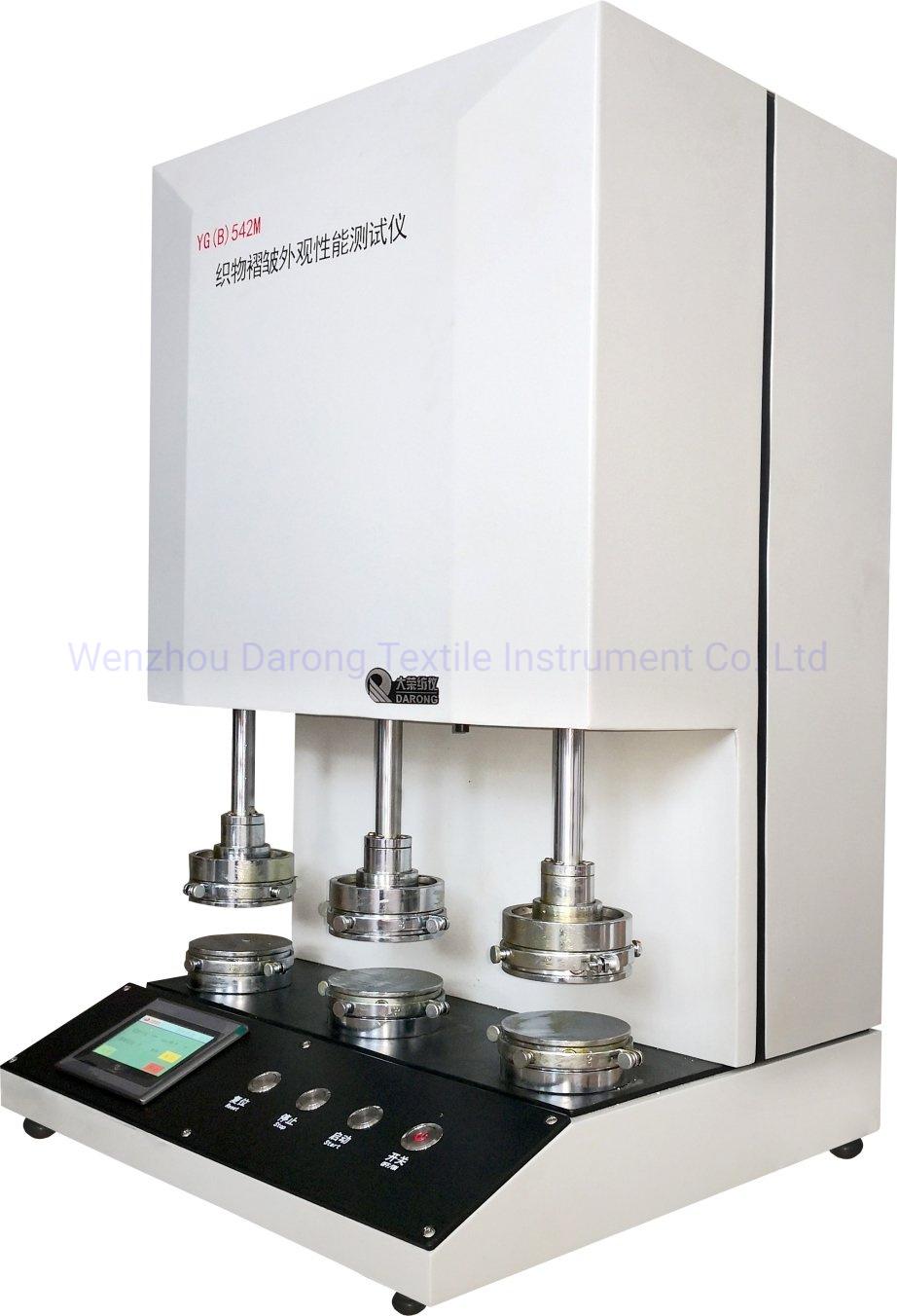

YG(B)542M   Fabric fold appearance performance testing equipment

[Scope of application]
Used to test the recovery ability of various fabrics under a certain load after a certain time of folding.

[Related standards]
 GB/T29257, ISO9867, AATCC128, etc.
[Instrument characteristics ]
1, three stations can be tested at the same time, one time to complete three tests, high efficiency, fast and small error;
2, automatic rotation pressure, automatic timing start, automatic recovery release;
3, weight pressure, accurate and convenient, no impact;
4. Using the magnetic force of the magnet, the semicircular clamping method is adopted. Convenient sample clamping and removal;
5, the upper and lower stroke design double protection, safe and reliable;
6, the upper pressure head down to the lowest point completely out of bondage, specimen compression precision.
[Technical Description]
1. Number of working stations: 3
2, up and down pressure head diameter :(89.0±0.5) mm
3, load :(39.2±1.0) N (non-standard can be customized)
4, speed :(200±10) mm/min(adjustable)
5. Timing range :(1.0-999.9) min
6, dimensions :(510×495×826) mm (L×W×H)
7, weight: 130kg
8, power source: AC220V±10% 50Hz 0.5KW







Technical parameters]

Communication interface	Image sensor	Speed
RS232/USB	CCD	50-150r/min
