Dielectric Loss Tester for Power Transformer Dielectric Loss Testing
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Response on Customers′ Questions Within 12 Hours.
- Warranty：One Year
- Description：Dielectric Loss Tester for Power Transformer
- Function：for Power Transformer Dielectric Loss Testing
- Measurement Parameters：Dielectric Loss, Tan Delta, Capacitance
- Features：Automatic Dielectric Loss Tester
Base Info
- Model NO.：TDT
- Applicable Transformer：All Kinds of Transformer
- Application Field：Electricl Industry, Power Transformer Testing
- Output Voltage：10kv or 12kv
- Output Current：Max. 200mA
- Frequency：Automatic Double Frequency
- Data Storage：200 Groups
- Display：LCD Display
- Data Output：by Micro Printer Printing
- Packing Dimension：56cm*45cm*44cm
- Gross Weight：37kg
- Power Supply：220V, 50Hz or as Requested.
- Transport Package：Tan Delta Tester Packed in Veneer Case
- Specification：350mm*270mm*270mm
- Trademark：28kg
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：1000 Sets , Month
Description
Overview

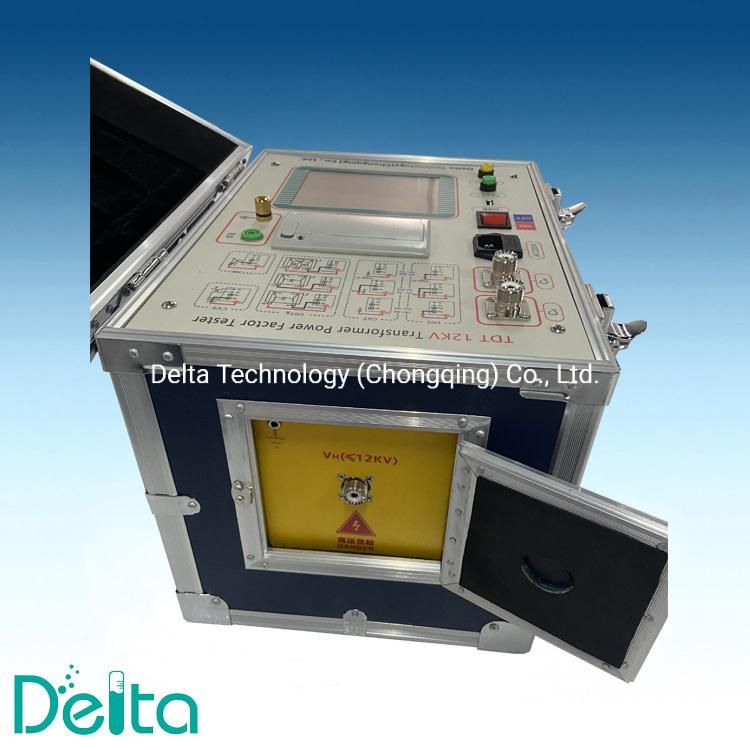

Product DescriptionTDT Dielectric Loss Tester is used to measure electrical loss tangent ( ) and capacitance of all kinds of high voltage electrical equipment in power plants, substations, laboratory, etc.
TDT Dielectric Loss Tester is composed of a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor, it is integrated structure.
TDT Dielectric Loss Tester can also supply high voltage source for testing.
Frequency can be changed to 50Hz, 47.5Hz52.5Hz, 45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, it can avoid interference of power frequency.Product ParametersTDT Dielectric Loss Tester for Power Transformer Dielectric Loss TestingDetailed Photos

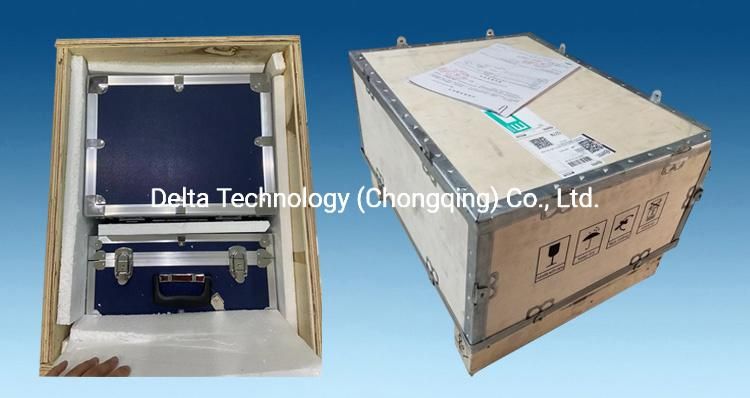

The whole set of TDT Dielectric Loss Tester is packed in one veneer case.
Packing dimension: 56cm*45cm*44cm
Weight: 37kg
It is suitable for shipping by Express and Air.
TDT Dielectric Loss Tester is composed of a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor, it is integrated structure.
TDT Dielectric Loss Tester can also supply high voltage source for testing.
Frequency can be changed to 50Hz, 47.5Hz52.5Hz, 45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, it can avoid interference of power frequency.Product ParametersTDT Dielectric Loss Tester for Power Transformer Dielectric Loss Testing
The whole set of TDT Dielectric Loss Tester is packed in one veneer case.Packing dimension: 56cm*45cm*44cm
Weight: 37kg
It is suitable for shipping by Express and Air.
