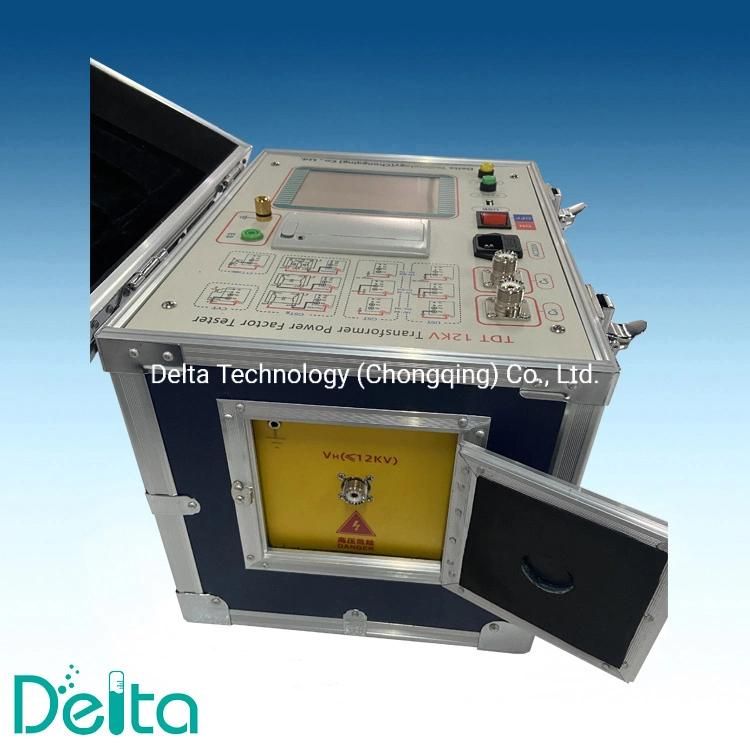

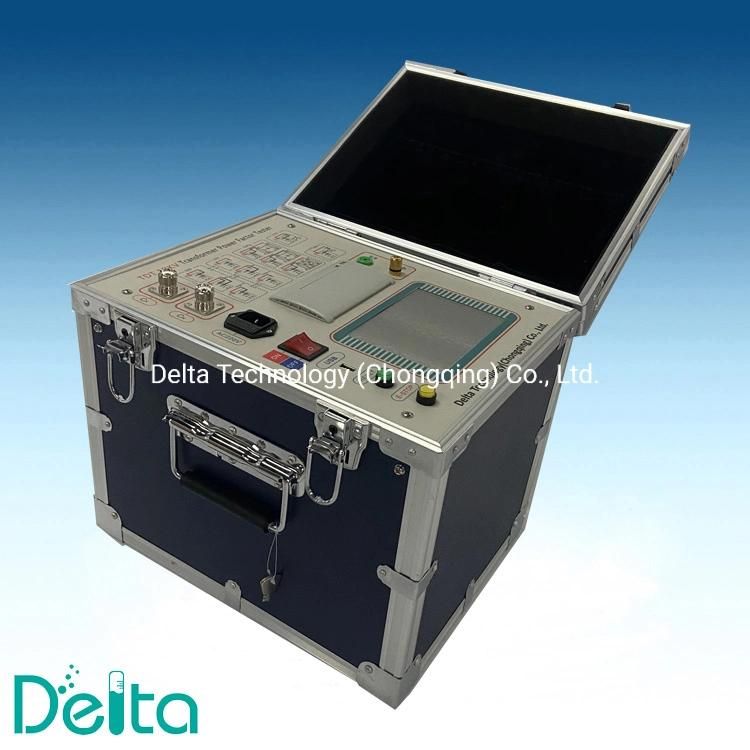

Automatic Three Phase Transformer Insulation Power Factor Tester
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Response on Customers′ Questions Within 12 Hours.
- Warranty：One Year
- Description：Transformer Insulation Power Factor Tester
- Function：for Transformer Insulation Power Factor Testing
- Measurement Parameters：Electrical Loss Tangent and Capacitance
- Features：Low Price Automatic Power Factor Tester
Base Info
- Model NO.：TDT
- Output Voltage：10kv or 12kv
- Output Current：Max. 200mA
- Frequency：Automatic Double Frequency
- Data Storage：200 Groups
- Display：LCD Display
- Data Output：by Micro Printer Printing
- Packing Dimension：56cm*45cm*44cm
- Gross Weight：37kg
- Power Supply：220V, 50Hz or as Requested.
- Transport Package：Power Factor Tester Packed in Veneer Case
- Specification：350mm*270mm*270mm
- Trademark：28kg
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：1000 Sets , Month
Description
Overview
Product DescriptionTDT Automatic Three Phase Transformer Insulation Power Factor Tester is used to measure electrical loss tangent ( ) and capacitance of all kinds of high voltage electrical equipment in power plants, substations, laboratory, etc.
TDT Transformer Insulation Power Factor Tester is composed of a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor, it is integrated structure.
It can also supply high voltage source for testing.
Frequency can be changed to 50Hz, 47.5Hz52.5Hz, 45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, it can avoid interference of power frequency.Product ParametersTDT Automatic Three Phase Transformer Insulation Power Factor TesterDetailed Photos

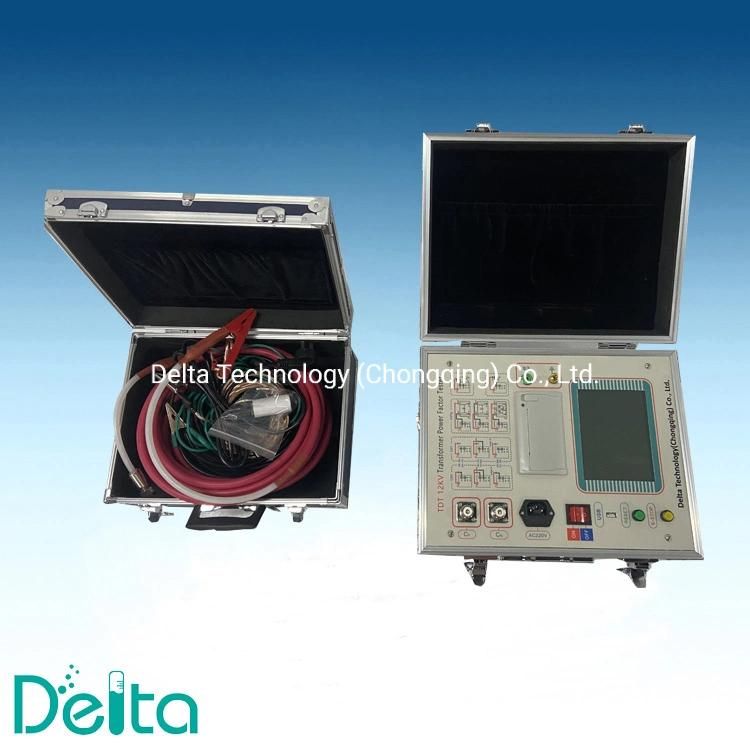

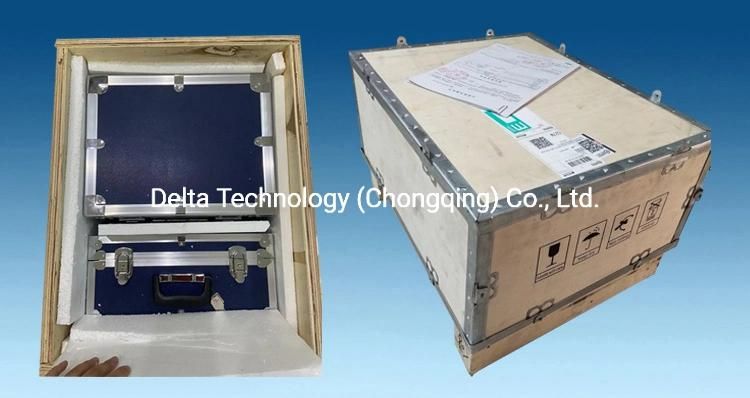

The whole set is packed in one veneer case.
Packing dimension: 56cm*45cm*44cm
Weight: 37kg
It is suitable for shipping by Express and Air.
TDT Transformer Insulation Power Factor Tester is composed of a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor, it is integrated structure.
It can also supply high voltage source for testing.
Frequency can be changed to 50Hz, 47.5Hz52.5Hz, 45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, it can avoid interference of power frequency.Product ParametersTDT Automatic Three Phase Transformer Insulation Power Factor Tester
The whole set is packed in one veneer case.Packing dimension: 56cm*45cm*44cm
Weight: 37kg
It is suitable for shipping by Express and Air.
