Auto Parts Resistance Sand and Dust Test Machine
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Material Testing Machine
- Maxcapacity：>1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YSDT-1000
- Loading Method：Dynamic Load
- Display：Digital
- Control：Controller
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：N,a
- Internal Size(mm)：1000*1000*1000mm(W*H*D)
- Testing Type：F1
- Concentration of Dust：Above 60000 Mg,M3
- Testing Temp.：20 Degree Celsius +,- 15 Degree Celsius
- Humidity Range：45%-85%Rh
- Swirl Time：5s
- Material：Stainless Steel
- Warranty：12 Months
- Service：Customization
- Total Time：5h
- Transport Package：Strong Wooden Case
- Specification：1000 litres
- Trademark：Yuan Yao
- Origin：Guangdong, China
- HS Code：9032100000
- Production Capacity：100 Sets,Month
Description
Dust-proof Test ChamberModel YSDT-512-C YSDT-1000-C YSDT-1500-C Inner chamber size W×H×D(cm) 80×80×80 100×100×100 100×100×150 External chamber size W×H×D(cm) 130×170×120 150×190×140 150×190×190 Time setting range 0~999h adjustable Temperature setting rangr RT+10~50ºC Test dust Talcum powder Dust dosage 2~4kg/m³ Vacuum degree 0~10.0KPa,,adjustable Dust reduction method Free dust falling Controller Programmable touch screen controller Vacuum system Equipped with pressure gauge, air filtration, pressure regulation, connecting pipe,
vacuum pump Circulation fan Low noise , multi-blade centrifugal fan Protective device Leaksge protection, short circuit proection Dust heating system Stainless steel heating tube Material Inner chamber Cold rolled sheet with power coating External chamber SUS#304 Stainless steel plate Other components Wiper, caster adjuster Power supply AC 1ψ 220V,3ψ 380V 60/50Hz, Customization service No-standard or special requirements are all welcome

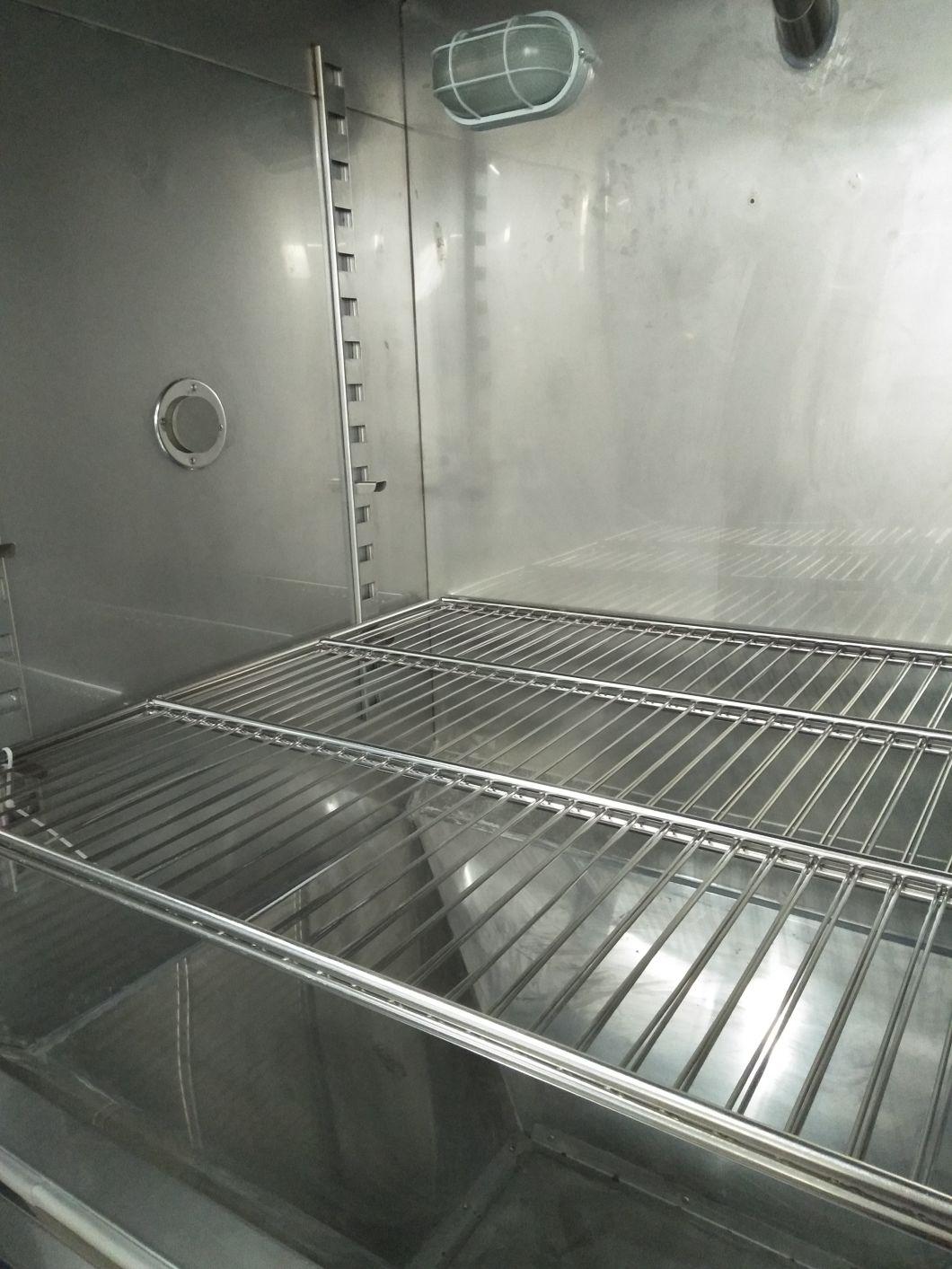

Detailed images
In addition to dust-proof test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester,
Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
If you want to know more about the salt spray test chamber,please feel free to contact us.
Welcome to inquiry !
