High Performance Industrial Humidity and Temperature Control Cabinets

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：900mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：YTH-080
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Controller
  • Weight：0-100Kg
  • Power Source：AC220V; AC380V
  • Oil Cylinder Position：N,a
  • Circulation：Sirocco Fan
  • Material：Stainless Steel
  • Insulation：PU&Fiberglass Wool
  • Internal Size(mm)：400*500*400
  • Humidity Range：20%-98%Rh
  • Certificatio：Ce
  • Cooling：Imported Compressor
  • Temperature Range：-70°c~+150°c
  • Output：Pid+SSR
  • Service：Customization
  • Temp,Humi,Resolution：0.01ºC; 0.1rh
  • Exterior Chamber Material：Cold Rolled Plate + Powder Coating
  • Insulation Material：PU
  • Heating System：SUS# Stainless Steel High-Speed Heater
  • Dehumidifying：ADP Critical Dew Point Cooling, Dehumidifying Meth
  • Transport Package：Plywood Case Meets The International Standard
  • Specification：CE approved
  • Trademark：Yuan Yao
  • Origin：Dongguan, China
  • HS Code：9032100000
  • Production Capacity：100 Sets

Description

Temperture Humildity ChamberModel-70ºC,-60ºC,-40ºC,-20ºC,0ºC~150ºC,Other temperture can be customizedTesting humidity range20%RH~98%RH(low humidity10%RH~98RH or 5%RH~98%RH can be customizedTemp.humi.fluctuation±0.3ºC;±0.5%RHTemp.humi.uniformity±2ºC;±3%RH (empty loading after stablize for 30mins)Temp.humi.resolution0.01ºC;0.1%RHHeating&cooling time ºC/minHeat-up:3ºC/min(average),cool-down:1ºC/min(average)Exterior chamber materialCold rolled plate + Powder coatingInner chamber materialSUS#304 Stainless steelInsulation materialPUCirculation systemCentrifugal fan air circulation systemHeating systemSUS# Stainless steel high-speed heaterHumidification systemElectrothermal steam humidificationDehumidifyingADP critical dew point cooling/ dehumidifying methodRefrigeration systemCompressor + Finned evaporator + Air(Water) cooling condenserControlling systemTouch screen controllerOther componentsVacuum glass observation windowTest hole (50mm)Control status indicatorView lightCompartment shelf (2 freely adjustable)Safety protection deviceOverheat protection circuit breakerHumidification system overheat protectionCompressor overload protectionControl system overload protectionoverload indicatorPhase sequence protection Water shortage protectionHigh voltage and low voltage protectionOver temperature protectionWater supply dely protectionFan overcurrent protectionPower supplyAC 1ψ 220V; 3ψ380V 60/50HzCustomization serviceNo-standard or special requirements are all welcome



3. Many stock spare parts in warehouse ensure customer can get soon when they need.2. We produce in strict accordance with international safety standard.More detail of temperature humidity tester

High Performance Industrial Humidity and Temperature Control Cabinets

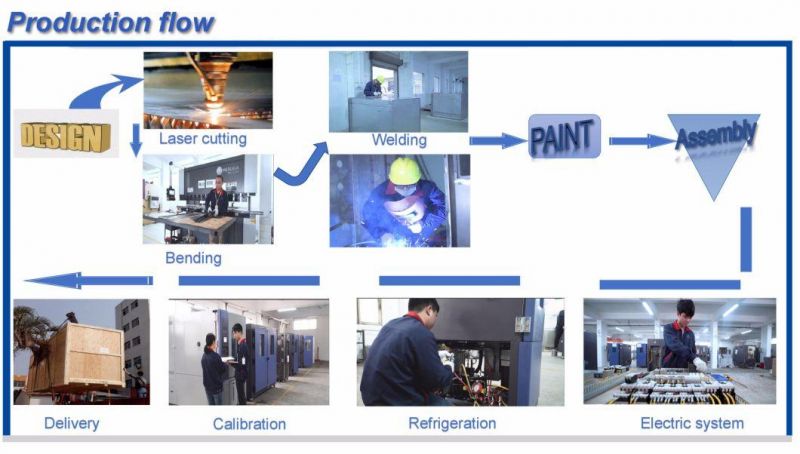

Industrial test equipment Production Line:

1. We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.


High Performance Industrial Humidity and Temperature Control Cabinets

High Performance Industrial Humidity and Temperature Control Cabinets

Yuanyao profile
High Performance Industrial Humidity and Temperature Control Cabinets
High Performance Industrial Humidity and Temperature Control Cabinets
High Performance Industrial Humidity and Temperature Control Cabinets
High Performance Industrial Humidity and Temperature Control Cabinets
High Performance Industrial Humidity and Temperature Control Cabinets

If you want to know more about the temperature humidity test chamber,

please feel free to conatct me.

Welcome to inquiry !
