Soil California Bearing Ratio Test Cbr Testing Machine
Hangzhou Civit Instrument Equipment Co., Ltd.- Maxiumu Load：30kn, 50kn
- Standard：BS.ASTM
- Working Principle：Turbo Worm
- Result：Counting
- Mould Size：152mm
- Product：Soil California Bearing Ratio Test Cbr Testing
Base Info
- Model NO.：CBR-50
- Transport Package：9mm and 15mm Plywood Package
- Specification：30KN,50KN cbr tester
- Trademark：CIVITTEST
- Origin：Zhejiang China
- HS Code：9031809090
- Production Capacity：200sets,Month
Description
Basic Info.
Model NO. CBR-50 Transport Package 9mm and 15mm Plywood Package Specification 30KN/50KN cbr tester Trademark CIVITTEST Origin Zhejiang China HS Code 9031809090 Production Capacity 200sets/MonthProduct Description
Soil California Bearing Ratio teste CBR Test apparatusI. Use
It used for used for the laboratory evaluation of subgrade and subbase coarse materials in road construction.
II. Description

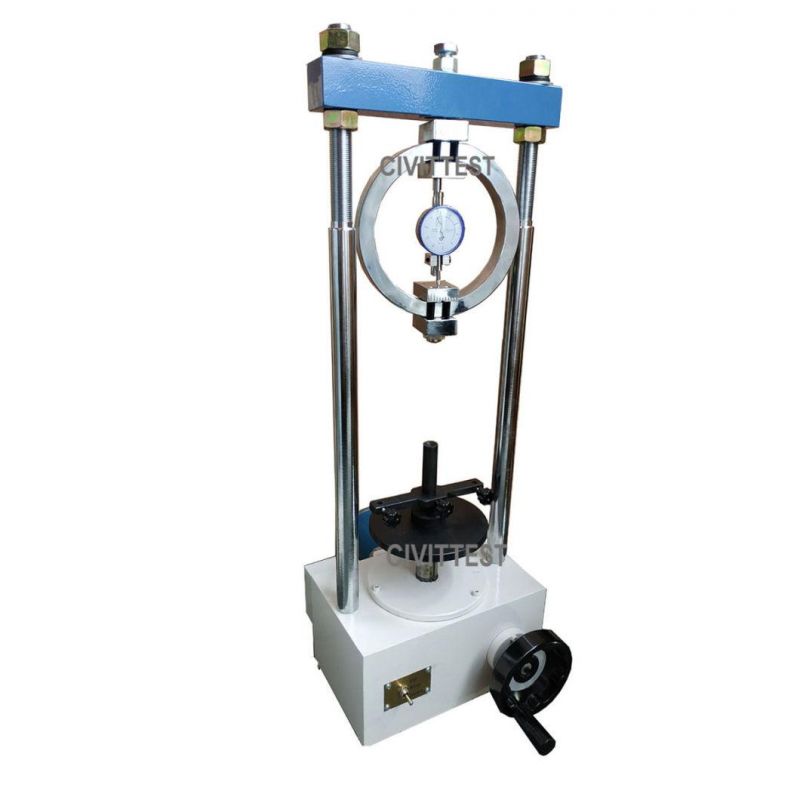

CBR motorized loading press, 50 kN capacity, complete with 50 kN load ring, adjustable penetration piston.
III. Technical Specification
| Number | Technical | Technical indicators |
| 1 | Maximum | 50KN |
| 2 | Axial fast rise manual rotation speed | 53rolls/mm |
| 3 | Axial max. stroke | 100mm |
| 4 | Conversation way | Motor stop and change |
| 5 | Power | 90W |
| 7 | Test Speed | 1mm/min |
| 8 | Penetration piston | Adjustable. |

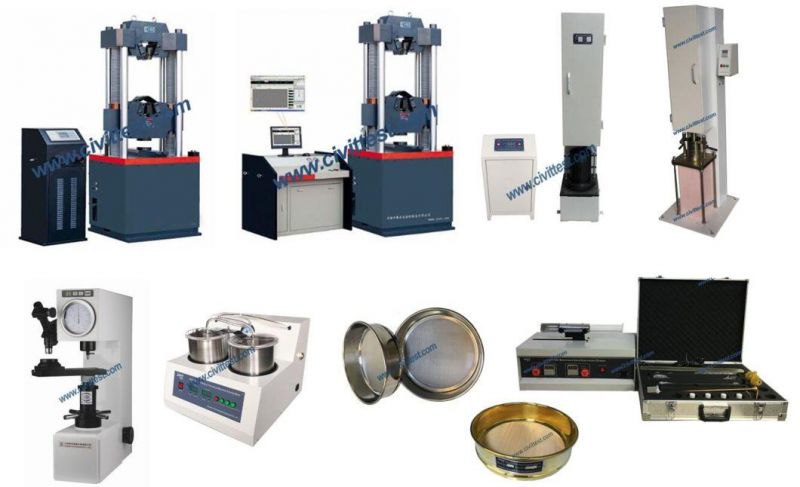

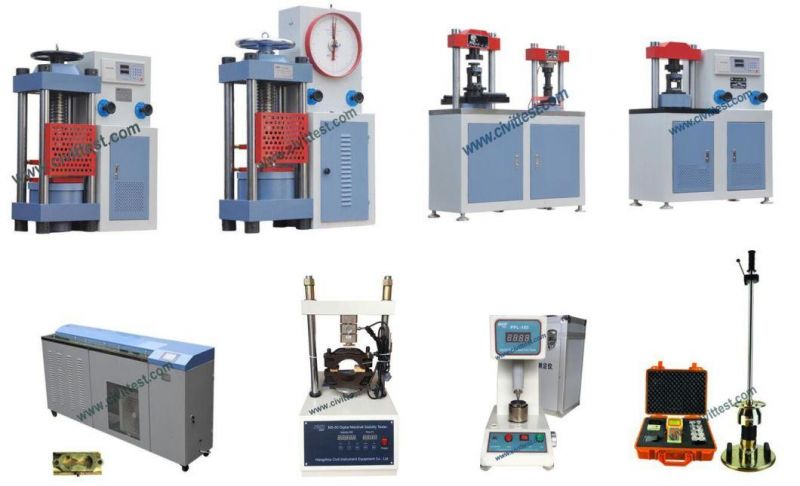

Company Product
1. Drying, weighing and Grading Equipment and tools.2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.
Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.
2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.
3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
