• Model NO.：YT-OPF
• Tensile Velocity：1.0~480(Can Be Adjusted Digitally) mm,Min
• Sampler Length：35-300(Can Be Adjusted Digitally) mm
• Sampler Width：15,25,50 (Can Be Ordered) mm
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Dimension：400(L)*320(W)*990(H) mm
• Net Weight：Net Weight
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-OPF Tensile Velocity 1.0~480(Can Be Adjusted Digitally) mm/Min Sampler Length 35-300(Can Be Adjusted Digitally) mm Sampler Width 15,25,50 (Can Be Ordered) mm Print Built-in Thermal Printer Communication Interface RS232 Dimension 400(L)*320(W)*990(H) mm Net Weight Net Weight Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

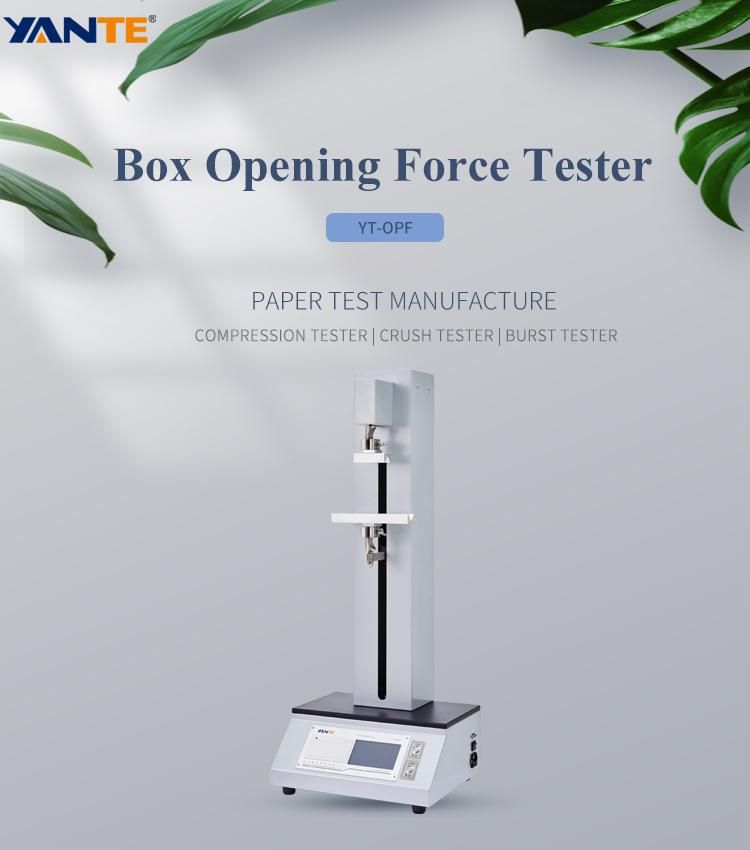

Box Opening Force Tester is a special instrument for measuring the opening force of the carton.



Product Features

The transmission mechanism adopts a ball screw and three guide shafts, and the transmission is stable and accurate.
Using closed-loop servo stepping motor, low noise and precise control.
A 7-inch color LCD touch screen is used to display the stretching curve in real time.
The ARM processor improves the response speed of the instrument and ensures the real-time performance of the measurement.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Cooperate with computer software for communication (purchased separately).

Technical Parameters

No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Measuring range	(1~300)N
4	Indication Resolution	0.1N
5	Indication error	±1%(Range 5%~100%)
6	Work stroke	500mm
7	Stretching speed	(1~500)mm/min(Can be adjusted arbitrarily)
8	Print	Built-in thermal printer
9	Communication Interface	RS232 (default) (USB, WIFI optional)
10	Dimension	405×325×995 mm
11	Net Weight	37kg around
