64-Channel 5V 20A Lithium Ion Battery Cell Auto Cycle Charge Discharge Capacity Grading and Matching Comprehensive Tester
HANGZHOU DEKANG INTELLIGENT EQUIPMENT CO., LTD.- After-sales Service：Lifelong Aftersales Service
- Warranty：12 Months
- Type：Storage Battery Tester
- Test Region：Charge and Discharge
- Application：Lithium-ion Battery
- Customized：Customized
Base Info
- Model NO.：DT2020-64
- Channel No.：64
- Accuracy of Current：0.02A
- Accuracy of Voltage：0.02V

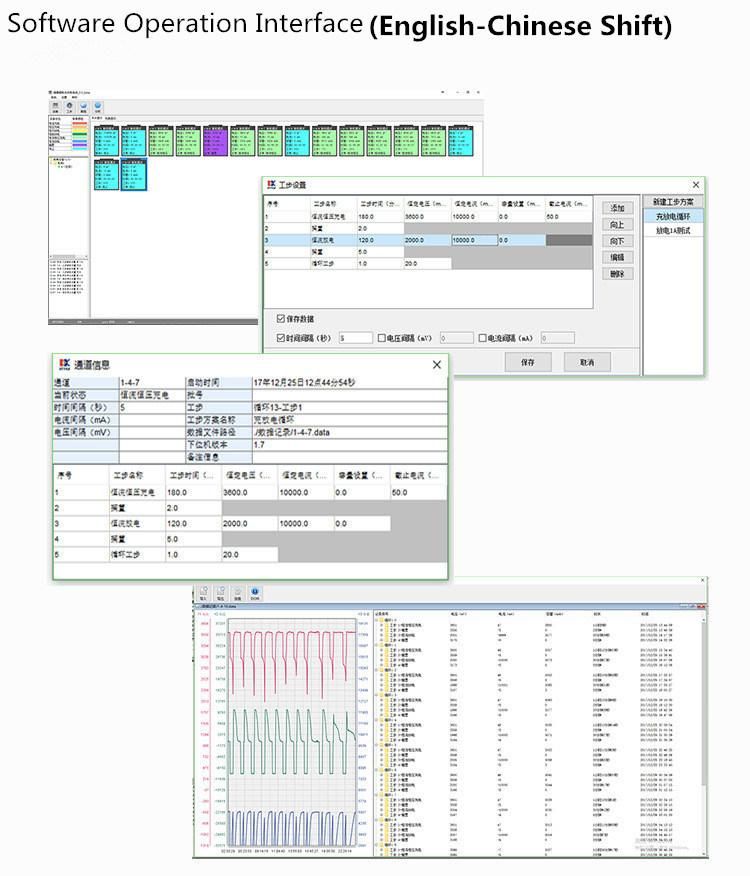

- Software Language：Chinese-English Swift
- Max. Voltage Output：5V
- Max. Chg & Dhg Current：20A
- Min. Chg & Dhg Current：50mA
- Communication：LAN , Wireless
- Transport Package：Seaworthy Packing
- Specification：Product size: 80*45*200 cm
- Trademark：DK
- Origin：China
- HS Code：9030409000
- Production Capacity：10000 Pieces,Year
Description
Minimum Configuration:
Packing Information
Battery Connection
1. Applicable Batteries:
The DT2020 device supports batteries with the voltage <5V and the capacity < 200AH, in physical specification, it supports: 18650, 26650, 32650, AAA, AA, A, Soft pouch and block batteries.

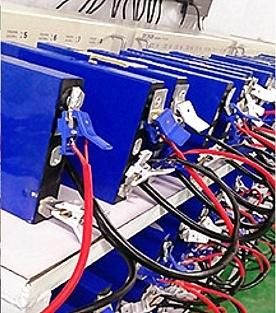

2. The connection of the pouch cells and block cells
The standard accessories including 8 pairs of ouput test cable with clips
3. The connection of cylindrical cells
The cylindrical cell test bracket is opitional upon the request for the connection to the cylindrical cell.
(Adjustable height of probe: 22-140mm)

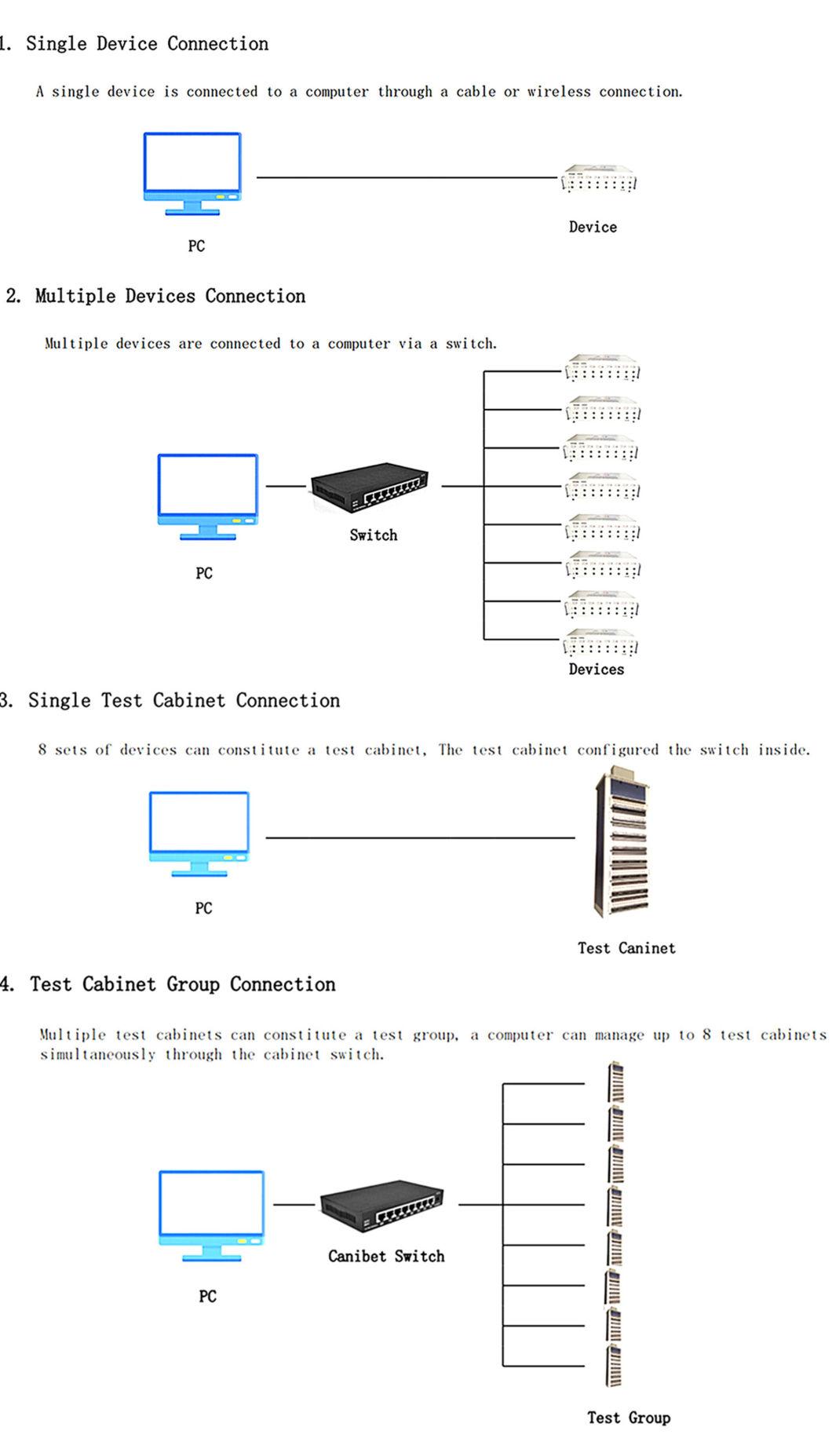

Upper Computer Connection

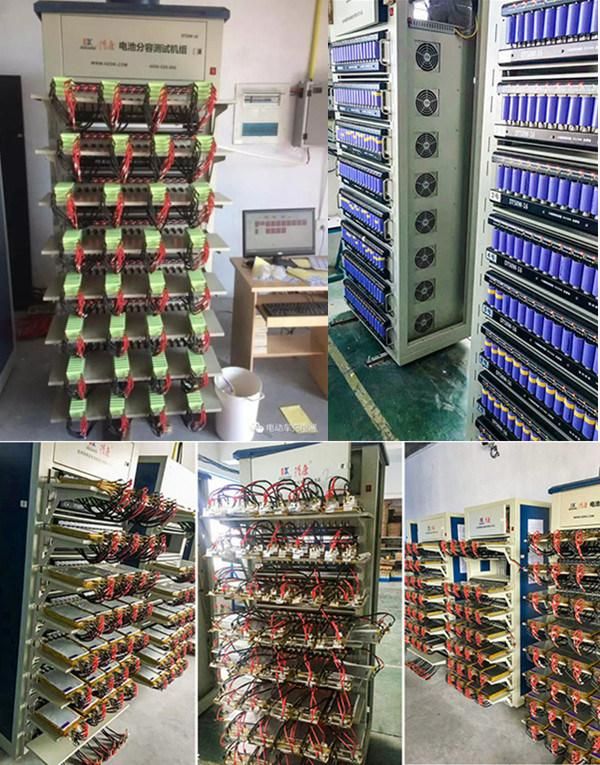

APPLICATION CASES
Global regional agent investment, please contact with us.
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Measuring & Maintenance Equipment, EV Charging Station, Shared Power Swapping Station, Shared Mobility Solution. We provide the clients with the complete solution of storage battery service.
Products Category:
Battery Charging & Discharging Tester
Battery Testing and Recovery Equipment
Lithium Battery Intelligent Charger
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choice us?
Sample order dispatched by express via DHL, FEDEX,TNT,UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Operation Training & Guidance
In addition to providing user manual and operation videos, after you purchase the equipment, we will also provide operation training and guidance support through telephone, email, video connection, remote connection and other ways, so as to ensure that you are proficient in the operation and use of the equipment. Our equipment is intelligent in design, rich in functions and easy to operate. Make it easy for you to operate.
Warranty:
12-month warranty, lifelong after-sale service and free technology service.
After-Sales Service
Very important: DEKANG exporting division is the only official exporting department of DEKANG. Anyone who obtains our equipment from a third party or through other channels may have the risk of not being able to obtain perfect after-sales & technology service. In order to enjoy better service and technology support, overseas users please purchase directly from the official exporting department of DEKANG.
.
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL,UPS,TNT or FEDEX at our account and guide the user to replace via phone, email or video. The modular design of our equipment makes it easy to install and replace
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:
EXPO
R & D

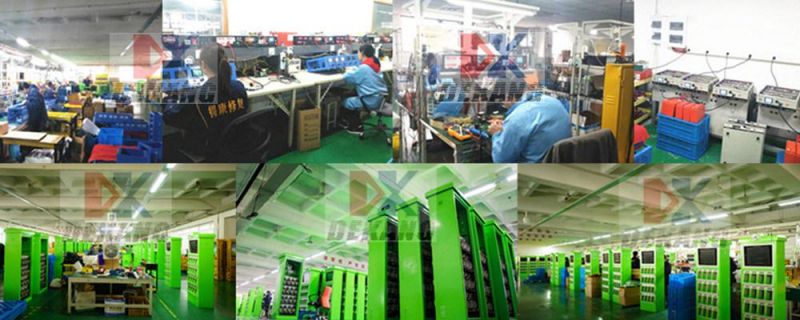

PRODUCTION
- Independent display card above Celeron 2.0 Ghz
- Internal storage>2GB
- Resolution: >1024*768
- With one or more series ports
Packing Information
| Model | Product Size | Package Size | G.W. |
| DT2020W-64 | 80*45*200 cm | 90*55*210 cm | 210 KG |
Battery Connection
1. Applicable Batteries:
The DT2020 device supports batteries with the voltage <5V and the capacity < 200AH, in physical specification, it supports: 18650, 26650, 32650, AAA, AA, A, Soft pouch and block batteries.
2. The connection of the pouch cells and block cells
The standard accessories including 8 pairs of ouput test cable with clips
3. The connection of cylindrical cells
The cylindrical cell test bracket is opitional upon the request for the connection to the cylindrical cell.
(Adjustable height of probe: 22-140mm)
Upper Computer Connection
APPLICATION CASES
Global regional agent investment, please contact with us.
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Measuring & Maintenance Equipment, EV Charging Station, Shared Power Swapping Station, Shared Mobility Solution. We provide the clients with the complete solution of storage battery service.
Products Category:
Battery Charging & Discharging Tester
Battery Testing and Recovery Equipment
Lithium Battery Intelligent Charger
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choice us?
- Beginning from 2005, we have achieved the leadership of our industrial
- Over 15 years of experiences
- Powerful function and superior performance
- Professional and strong R&D team.
- Technical leadership and advantage
- Advanced production technology and automatic assembly line
- Market verification and specialized users approval from over 50 countries
- Rich experience in market operation
- Professional after-sale service, lifelong after-sale service provided
Sample order dispatched by express via DHL, FEDEX,TNT,UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Operation Training & Guidance
In addition to providing user manual and operation videos, after you purchase the equipment, we will also provide operation training and guidance support through telephone, email, video connection, remote connection and other ways, so as to ensure that you are proficient in the operation and use of the equipment. Our equipment is intelligent in design, rich in functions and easy to operate. Make it easy for you to operate.
Warranty:
12-month warranty, lifelong after-sale service and free technology service.
After-Sales Service
Very important: DEKANG exporting division is the only official exporting department of DEKANG. Anyone who obtains our equipment from a third party or through other channels may have the risk of not being able to obtain perfect after-sales & technology service. In order to enjoy better service and technology support, overseas users please purchase directly from the official exporting department of DEKANG.
.
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL,UPS,TNT or FEDEX at our account and guide the user to replace via phone, email or video. The modular design of our equipment makes it easy to install and replace
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:
- Do not operate or use as per the manual and cause the damage
- The instrument was disassembled or repaired by the non-authorized person by our company
- Unexpected factors or man-made causes the damage, such as the water inflowing, mechanical damage, falling, burning and so on.
EXPO
R & D
PRODUCTION
