Test Instrument

Dahan Laboratory Test Sieve Rotary Sieve for Compost

Xinxiang Dahan Vibrating Machinery Co., Ltd.
  • Max Diameter of Workpiece:<500mm
  • Mass Scope of Workpiece:<900kg
  • Type:Vibration Testing Machine
  • Maxcapacity:>1000KN
  • Accuracy Grade:0.5
  • Load Way:Mechanical Load

Base Info

  • Model NO.:DH-300T
  • Loading Method:Dynamic Load
  • Display:Digital
  • Control:Manual Control
  • Weight:0-100Kg
  • Power Source:AC220V
  • Oil Cylinder Position:No
  • Product Name:Test Screen
  • Screen Grid Diameter:200mm
  • Layer:1-8
  • Vibration Frequency:1440n,Min
  • Vibration Amplitude:1-4mm
  • Exciting Force:3kn
  • Chassis Level:<=0.6mm
  • Motor Power:0.12kw
  • Power Supply:220.50 V.H2
  • Certification:ISO9001:2008, CE
  • Transport Package:Plywood Case Complying with Ippc Rules.
  • Specification:ISO9001: 2008, CE
  • Trademark:Dahan
  • Origin:Xinxiang
  • HS Code:847410000
  • Production Capacity:50 Sets in One Week

Description

Basic Info.

Model NO. DH-300T Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position No Product Name Test Screen Screen Grid Diameter 200mm Layer 1-8 Vibration Frequency 1440n/Min Vibration Amplitude 1-4mm Exciting Force 3kn Chassis Level <=0.6mm Motor Power 0.12kw Power Supply 220.50 V.H2 Certification ISO9001:2008, CE Transport Package Plywood Case Complying with Ippc Rules. Specification ISO9001: 2008, CE Trademark Dahan Origin Xinxiang HS Code 847410000 Production Capacity 50 Sets in One Week

Product Description

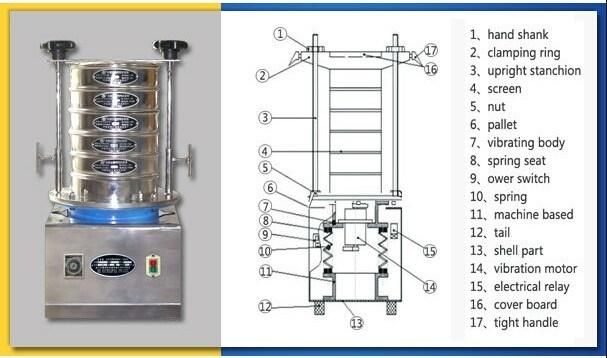

DH-300 test  sieve machine

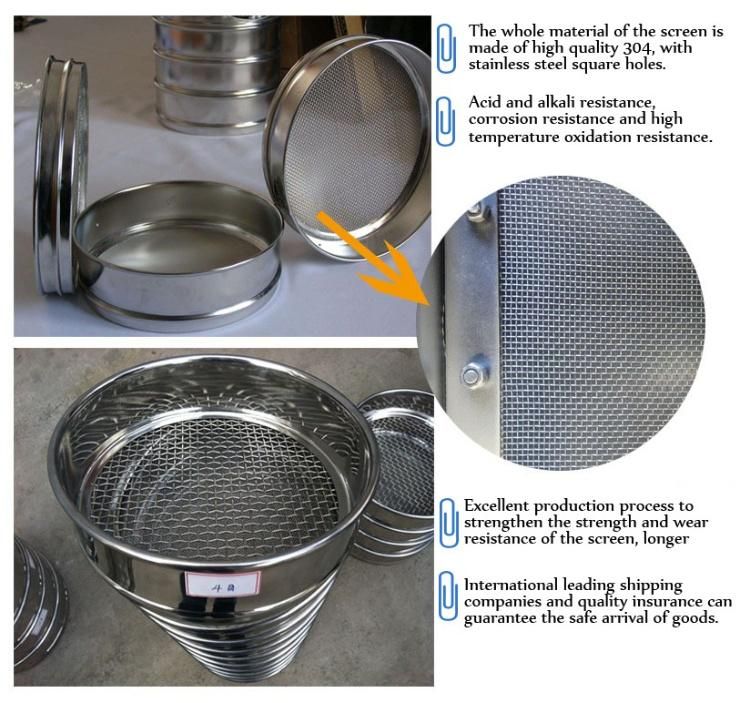

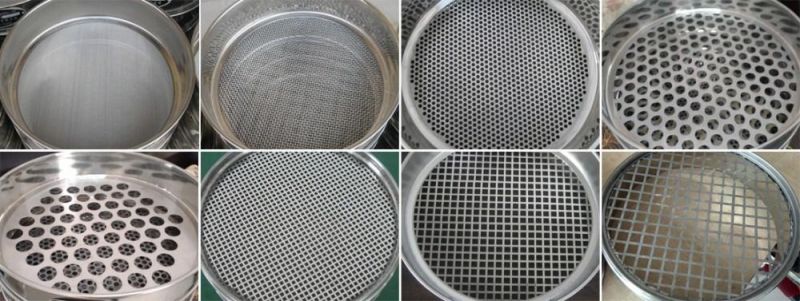

Φ300 test sieves according to the screen surface material into a metal wire cloth test sieves and metal perforated plate test sieves. Test sieves of metal wire cloth adopt national standards GB / T6003.1-1997 production. Its basic mesh size is 2.36mm-0.038mm, in line with international standards ISO3310-1: 1990 R20 / 3, R20, R40 / 3 series, the screen is made of brass, bronze, stainless steel. Test sieves of perforated metal plate using the national standard GB / T6003.2-1997, in line with international standards ISO3310-2: 1990 R20 / 3, R20, R40 / 3 series, the screen is made of copper, and electrochemical processing. Φ300 test sieve frame, screen cover, made of high quality stainless steel sieve bottom refined. Φ300 test sieve is mainly used to detect particle size analysis of materials, widely used in abrasives, the worthy, screening detection metallurgy, pharmacopoeia, chemical and building materials industries granular materials.
Dahan Laboratory Test Sieve Rotary Sieve for Compost
Main features:
1) Low noise,light weight
2) The platform operation without fixed.
3) Multi-layer screen can be installed, up to 8 layers.
4) We offer customized lab test sieve shaker.if you have special request, contact customer service.Dahan Laboratory Test Sieve Rotary Sieve for Compost
Applications
Widely used in food, medicine, chemicals, abrasives, pigments, mining, metallurgy, geology, ceramics, defense and other industries research institutes, laboratories, laboratory, production control, testing and analysis.
Dahan Laboratory Test Sieve Rotary Sieve for Compost
How to use
1, According to need to adjust the time. Time relay for the first two minutes, two seconds. Adjust the time relay readings to take time.
2, The test screen frame into the device, tighten the nut, you can boot.
3, If the vibration amplitude adjustment, you can add exciting block M8 bolts on the motor inside the device, adjust the length of M8 bolts, get a different excitation.

Dahan Laboratory Test Sieve Rotary Sieve for Compost
Packaging Details:We offer free, Professiona,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.
Delivery Time:7-10 working days after payment.
FAQ:
Q:What is the real delivery time of your factory?
A: 10 to 15 days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general aftersale serve.
Dahan Laboratory Test Sieve Rotary Sieve for Compost
If you have any idea about our product,PLS CONTACT US!
