• Model NO.：GDYJ-502A
• Measuring Precision：±(1% Full Scale+2 Digits)
• Test Times Setting：9
• Product Name：Oil Breakdown Voltage,Dielectric Strength Tester
• Transport Package：Wooden Case
• Specification：54*46*40CM
• Trademark：Gold
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：300PCS,Month

Basic Info.

Model NO. GDYJ-502A Measuring Precision ±(1% Full Scale+2 Digits) Test Times Setting 9 Product Name Oil Breakdown Voltage/Dielectric Strength Tester Transport Package Wooden Case Specification 54*46*40CM Trademark Gold Origin Chongqing HS Code 9031809090 Production Capacity 300PCS/Month

Product Description

ASTM D877 Transformer Oil Tester Oil Breakdown Voltage/Dielectric Tester Oil BDV Tester

I--Introduction:

•  ASTM D877 Transformer Oil Dielectric Strength Tester, Transformer Oil BDV Tester is developed according to the national standard GB86 Insulating Oil Dielectric Strength Testing Method .
•  LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .
•  It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-501.
•  You can print the test result by the micro printer internal the tester.
•  Of course, you can upload the test data to PC from RS232 for data analyzing.
•  The special circuit design makes the tester has a good performance at stability and anti-noise.

II---Functions

1 Breakdown test of user-defined

2 Proof test

3 Calibration interface for customers

4 Unloading data to PC and making word report automatically.

5 Result print


III---Technique index

1 Rated power supply: AC 220V±10% 50/60Hz

2 Output voltage: AC 0~80KV/AC 0~100KV

3 Rate of voltage rise: 2KV/s±10%

4 Measuring precision: 3 class

5 Times: 1-9

6 Mixing time: 0~99 second

7 Placing time: 0-9 minute 59second

8 Save 100 groups of data most

9 Voltage limit setting for proof test: 20KV----70KV

10 Hold time for proof test:  1 minute -----10 minutes

11 Environment temperatures: 5-40ºC

12 Relative humidity: ≤80%RH

13 Size: 420×380×410mm3

14 Weight: 28kg

GDYJ Series Insulating Oil Dielectric Strength Tester

Model	GDYJ-501	GDYJ-502	GDYJ-502A
Output Voltage	AC 0~80KV/0~100KV	AC 0~100KV	AC 0~80KV
Rate of Voltage Rise	2KV/s±10%	0.5/2/3/5 KV/s±5%	2KV/s±10%
Max. Time Setting	0~9mins	9mins	0~99 seconds
Test Precision	3% RGD+0.3%FS	3% RGD+0.3%FS	3% RGD+0.3%FS
Max. Data Storage	100 groups	100 groups	50 groups
Power Supply	AC220V±10% 50/60Hz	AC220V±10% 50/60Hz	AC220V±10% 50/60Hz
Environment Temp.	0~50Centigrade	0~50Centigrade	0~50Centigrade
Related Humidity	<80%RH	<80%RH	<80%RH
Dimension	420*380*410mm	620*430*330mm	420*380*410mm
Weight	28kg	41kg	28kg

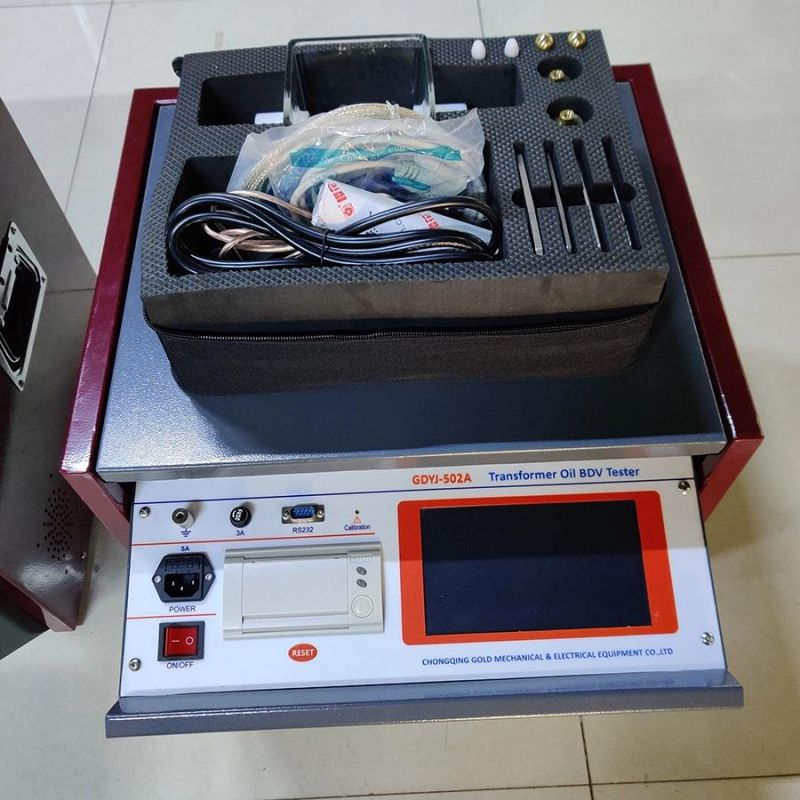

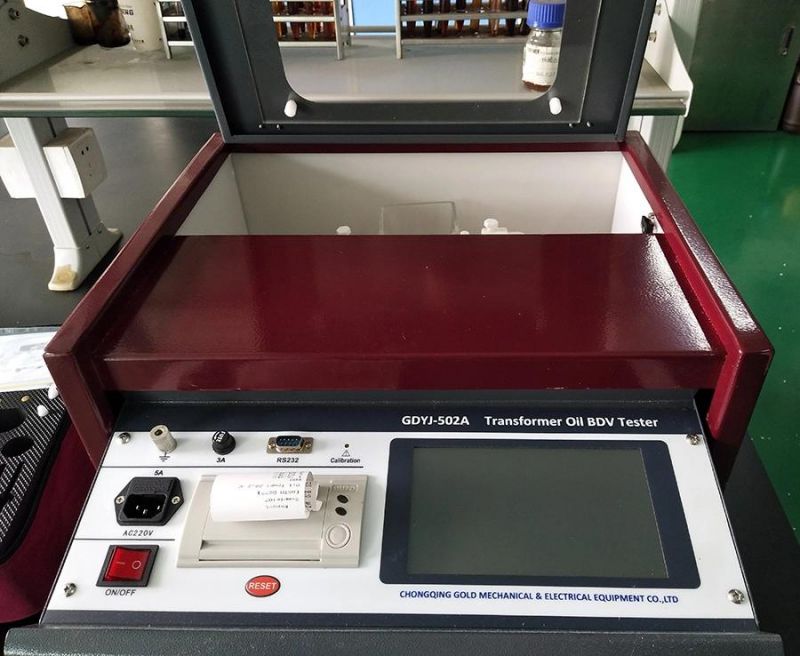

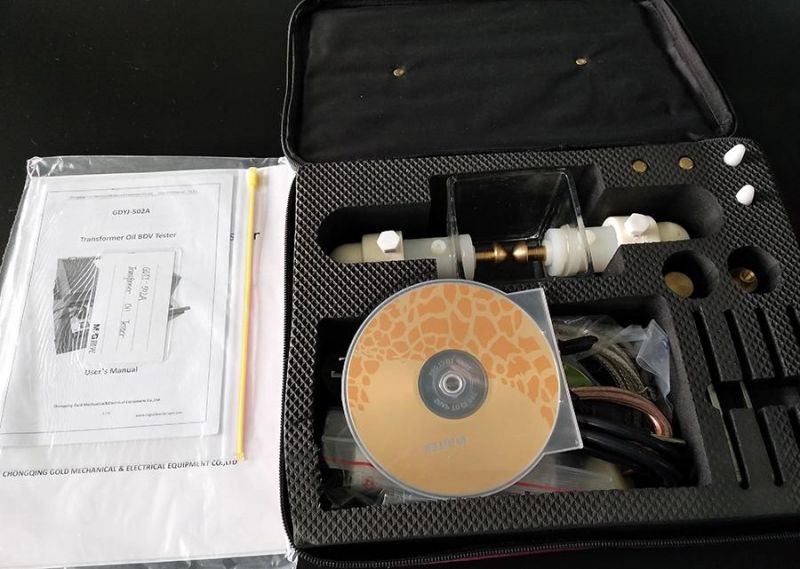

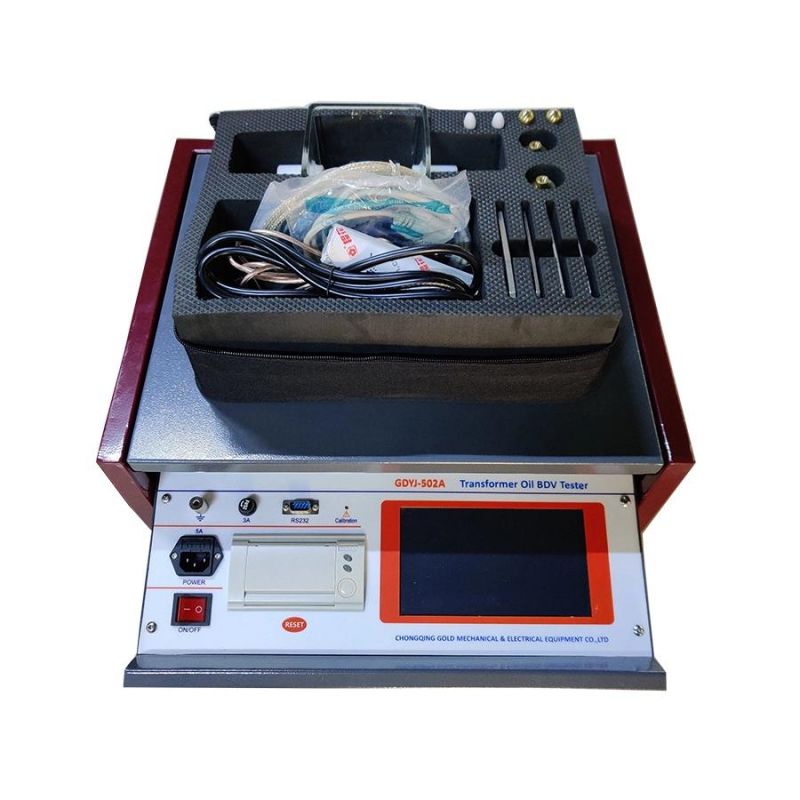

Product Pictures
