• Model NO.：XB-OTS-408
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Interior Dimension：85*80*60cm
• Temperature Range：-20c ~ +150c,Can Be Set
• Humidity Range：20% ~ 98%, Can Be Set
• Dimensional Measurement Accuracy：0.1% Fs
•  Resolution：1um
• Sensor：4 Groups
• Control Mode：PLC Touch Screen Control and Display
• Standard：ISO 23999:2008 DIN En ISO 23999:2012 BS En 434:199
• Transport Package：Strong Wooden Case
• Trademark：OTS
• Origin：China
• HS Code：9024109000

Basic Info.

Model NO. XB-OTS-408 Control Manual Control Weight 0-100Kg Power Source AC220V Interior Dimension 85*80*60cm Temperature Range -20c ~ +150c,Can Be Set Humidity Range 20% ~ 98%, Can Be Set Dimensional Measurement Accuracy 0.1% Fs  Resolution 1um Sensor 4 Groups Control Mode PLC Touch Screen Control and Display Standard ISO 23999:2008 DIN En ISO 23999:2012 BS En 434:199 Transport Package Strong Wooden Case Trademark OTS Origin China HS Code 9024109000

Product Description

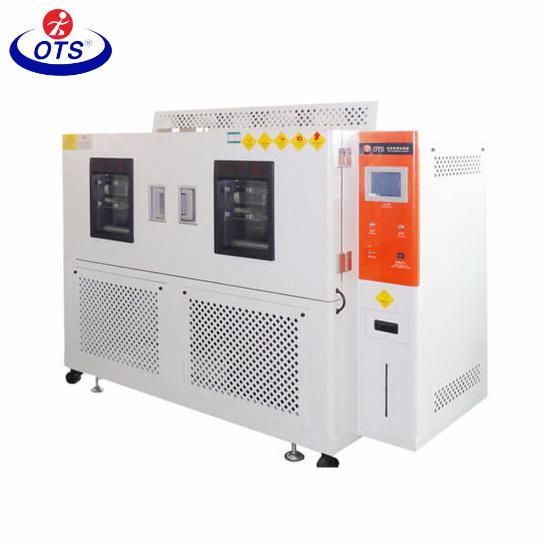

ISO 23999 Dimensional Stability And Curling Test Chamber
 ISO 23999:2008 DIN EN ISO 23999:2012 BS EN 434:1994 Dimensional Stability And Curling Test Chamber is used for Resilient floor coverings,such as bamboo flooring,cork flooring,general flooring, hardwood flooring, laminate flooring,resilient flooring ,to determine the dimensional stability and curling after exposure to heat;

The traditional test method relies on the manual use of a micrometer to measure the dimensional deformation of the Resilient floor coverings after being heated. However, Dongguan Xinbao Instrument Co., Ltd. invented an automatic online measurement using an electronic sensor with a temperature and humidity test chamber to automatically save test data. , not only greatly improved the test efficiency but also greatly improved the accuracy of the test. You can checking the following technical parameters of ISO 23999:2008 DIN EN ISO 23999:2012 BS EN 434:1994 Dimensional Stability And Curling Test Chamber



Dimension:

Capacity	XB-OTS-408L
Interior Dimension W×H×D(cm)	85*80*60cm
Capacity	XB-OTS-648L
Interior Dimension W×H×D(cm)	180*60*60

3. Temperature & Humidity Range:

Temperature Range	-20ºC ~ +150ºC,can be set
Humidity Range	20% ~ 98%, can be set

4. Heating & Cooling Time:

Heating Time	RT>+150ºC, it needs 35 minutes (Non-Linear load needs about 3.5ºC / min)
Cooling Time	RT>-20ºC, it needs20 minutes (Non-Linear load needs about 1.2ºC / min)

5. Accuracy:

Temperature and humidity Analytical accuracy / uniformity	±0.1ºC;±0.1%R.H./1.0ºC;±3.0%R.H.
Temperature and humidity control accuracy / volatility	±1.0ºC;±2.0%R.H./0.5ºC;±2.0%R.H.

6.  Dimensional Stability And Curling Test

Dimensional measurement accuracy:	0.1% FS
Resolution:	1um
Sensor:	4 groups (can be monitored for the deformation of the sample in 4 directions)
Sample test stand:	1 set
Control mode:	PLC touch screen control and display
PLC touch screen function:	can control: time, temperature, humidity; display and full record: time, temperature, humidity, size change value and corresponding curve

Corresponding Standard:
ISO 23999:2008 DIN EN ISO 23999:2012 BS EN 434:1994 and other standards.
It's the chamber used for Resilient floor coverings Dimensional Stability And Curling Test ,such as bamboo flooring,cork flooring,general flooring, hardwood flooring, laminate flooring,resilient flooring ,to determine the dimensional stability and curling after exposure to heat.

Principle:
The machine adopts the high stability of the platinum resistance thermometer PT-100 body, LCD Touch English / touch -screen display, with multiple sets of PID control function, with USB standard communication interface, can connect computer interface control is implemented far side control, more concise and understandable with high accuracy, intelligent control system programming and setting control systems, to provide a full range experimenter optimal test performance.


Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for paperboard Puncture Strength Tester   2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

About USOur Services
We are here to help you. Services available:

Replacement manuals

• Consumables and replacement parts
• On-site maintenance and repair
• Warranty support
• Over-the-phone service support and advice

If you have an OTS chamber  , we will do our best to help you in whatever way we can.

 Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.

• Service repair:  We prefer you contact us direct at the factory with any problems you may be experiencing.  We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.  Rarely can a local contractor get all that done for you as quickly as we can.  We also guarantee the work

RFQ

Q1 :  Can you customize the product?

   A:   Yes, we can customize any products according to requirements.

Q2 :  How to choose the most suitable products?

   A:   Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.

 Q3 :  Can you arrange installations and commissioning in our lab?

   A:   Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate

     Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
      Thirdly, some of customized chambers we should to install and teach your team to operate .

If you want to know more information...

Please leave a message below and click " SEND "

Thanks for your time and attention~Thank you!
