• Model NO.：XB-OTS-160PK
• Relative Humidity：20% ~ 98% R.H
• Temp Range：-5c~+85c
• Inner Chamber Size：1600*800*1200mm Can Be Customize
• Spray Pressure：1.00 +,- 0.01kgf , Cm2
• Heating Time：-5c Degree~+ 85c Degree<,=35 Min
• Transport Package：Standard Strong Wood Case
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• Production Capacity：369 Pieces,Month

XB-OTS-120XB-OTS-160XB-OTS-200Interior Test Chamber
Dimension(cm)(L×W×H)90×50×60120×80×50160×100×50200×100×50Exterior Test Chamber Dimension
(cm)(L×W×H)141*145*140190*165*140200*190*140240*220*150Capacity of the chamber(L)270L480L800L1440LCapacity of the salt water tank
(L)25L40LPowerAC 220V 50HZAC 380V 50HZtemperature&humidity
of the operating environment+5°C~ +35°C / <85%RHair pressure86~ 106KpaLab. temperatureNSS ACSS           35°C±1°CCASS              50°C±1°CPressure barrel temperatureNSS ACSS           47°C±1°CCASS                63°C±1°Ctemperature&humidity
Control AccuracyTest room temperature range: +0ºC~+85ºCRelative humidity: 20%~98%RH(±3%)Saturated barrel temperature: 47ºC~70ºCTemperature/humidity uniformity: ≤±2ºC  ≤±3% temperature resolution: 0.01 ºC Humidity Resolution: 0.1% RHtemperature fluctuation: ± 0.5 ºC Humidity fluctuation: ± 2% RHPH  valueNSS&ACSS:6.5~7.2 /  CASS:3.0~3.2compressed air pressure1.00±0.01kgf/cm2salt fog settlement1.0~2.0ml/80cm2/h (the average value after collecting 16 hours at least)materialimported corrosion resisting,aging resistance, high strength  P.V.C  boardtemperature controllerLCD  digital display multicolor touch screen temperature controllerspraying modecontinuous /  batch type spraying (optional)Demist deviceyessafety deviceover temperature protection,earth leakage protection,state caution light etcPower Supply AC220V1 φ15A             AC220V1 φ20A        AC220V1 φ30ADesign standardsASTM B-117, ASTM B-268, B-268 IEC68-2-11 ISO 9227, 3768, 3769,3770JIS D-0201,H-8502,H-8610,K-5400,Z-2371   CNS 3627, 3885,4159,7669,8866;

Features:

*Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.


*Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.


*Attached double over-temperature protection, over-temperature warning display, and cut off the heater power to ensure that the use of safety.


*Inlet temperature controller using a digital display, PID control, error of ± 0.1 ° C.

*Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.

*Spray tower attached to the conical dispersion, with oriented fog, the function of regulating the amount of fog and uniform loading amount of fog.

*The saturated air barrel using Henry's law, be heated humidification, and provide the required humidity of the laboratory. Its made of SUS # 304 stainless steel insulation effect, with visual connectivity and drainage switch, in order to visually saturated air the barrel water level and cleaning.

*With automatic defogging device that can clearly watch the specimen in test chamber.

*Fog sealing sink, water seal to prevent fogging leakage.

*Laboratory sealing cover material for Taiwan imported PVC board, pneumatic cylinder automatic lifting way, easy to operate safe and reliable.


*The import timer using digital display, accurate timekeeping, H. M. seconds S can be segmented set any required test time, adjust the time range from 0.01 seconds to 9999 hours. * Reagent supplement bottles hidden attached water level viewing window, easy to clean and should not be broken.


*Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.


Corresponding Standard:

ASTM B-117,      ASTM B-268,  B-268      ASTM D1735      ASTM B117
ISO 9227, 3768, 3769,3770       IEC68-2-11       IEC 68-2-30
IEC60068-2-1.1990        IEC60068-2-2.1974     EIA - 364-31C
IEC68-2-03                    EIA - 364-59                   K-5400,Z-2371
JIS D-0201  H-8502,H-8610  CNS 3627, 3885,4159,7669,8866

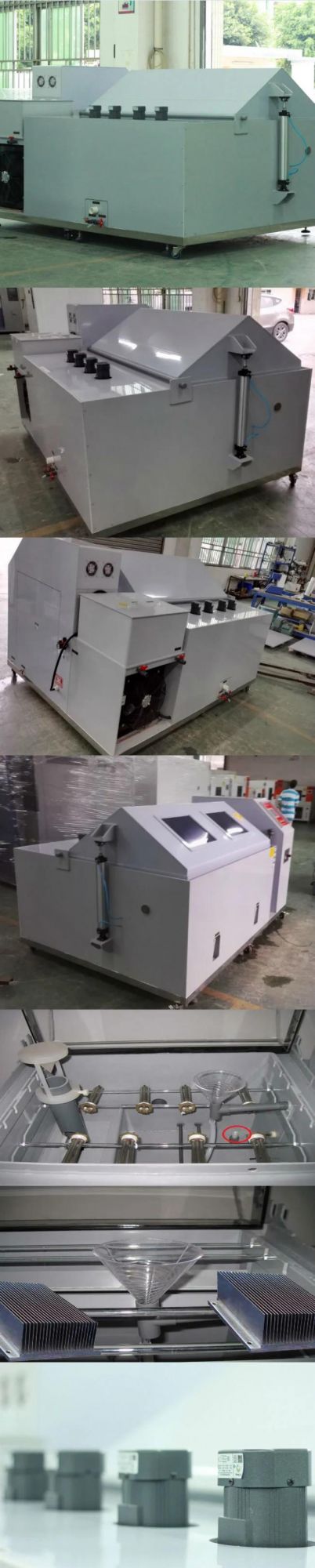

Product View of scientific and laboratory equipment Composite Salt Spray Chamber with Temperature





Packing&Shipping:

1.Strong standard wood case, inner plastic films wrapped for Temperature Humidity Compound Salt Spray chamber2. Usually we delivery the equipment by air,by sea or by express. it depends on customer
     Delivery time : 20 days after getting the payment

Our Services:

We are here to help you. Services available:

Replacement manuals

• Consumables and replacement parts
• On-site maintenance and repair
• Warranty support
• Over-the-phone service support and advice

If you have an OTS chamber  , we will do our best to help you in whatever way we can.

 Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.

• Service repair:  We prefer you contact us direct at the factory with any problems you may be experiencing.  We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.  Rarely can a local contractor get all that done for you as quickly as we can.  We also guarantee the work .



Our Company

FAQ:

Q1 :  Can you customize the product?

   A:   Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.

 Q2 :  How to choose the most suitable products?

   A:   Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.

 Q3 :  Can you arrange installations and commissioning in our lab?

   A:   Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate

        Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it

           Thirdly, some of customized chambers we should to install and teach your team to operate .



If you want to know more information...

Please leave a message below and click " SEND "

Thanks for your time and attention~Thank you!
