Pneumatic Clamp Soft Bearing Balancing Machine (PRQ-0.5/1.6)
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Mass Scope of Workpiece：<900kg
- Type：Balancing Machine
Base Info
- Model NO.：PRQ-0.5,1.6
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Length：1100 Mm
- Width：600 Mm
- Height：600 Mm
- Gross Weight：100 Kg

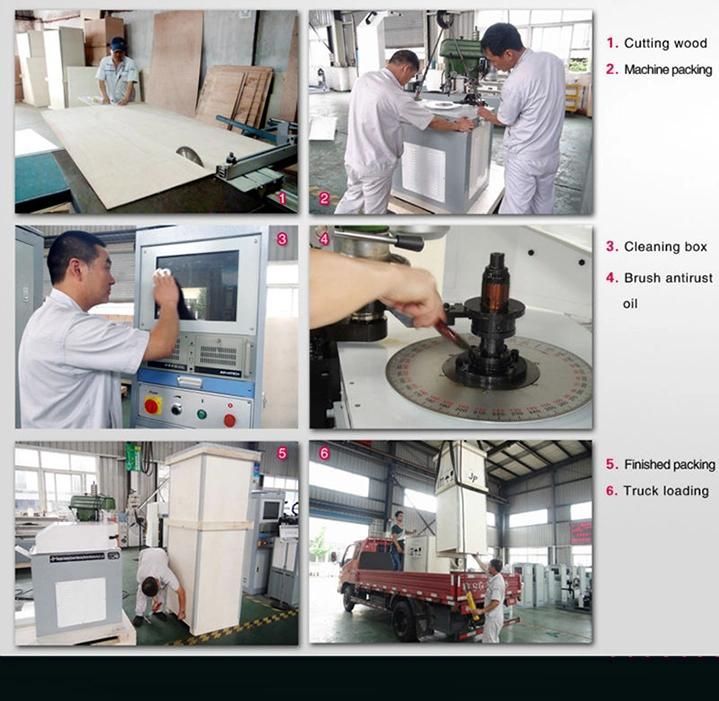

- Transport Package：Packed in Fumigated Wood Box
- Specification：ISO9001: 2008 CE SGS
- Trademark：JP
- Origin：Shanghai China
- HS Code：90311000
- Production Capacity：1000 Set,Sets Per Month Negotiation
Description
Basic Info.
Model NO. PRQ-0.5/1.6 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Length 1100 Mm Width 600 Mm Height 600 Mm Gross Weight 100 Kg Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Set/Sets Per Month NegotiationProduct Description
Pneumatic clamp soft bearing balancing machine (PRQ-0.5/1.6)
Specifications
Soft Bearing Balancing Machine
Designed specially for micro-rotor balancing and test. With its high sensitivity, easy operation
Production Description
Single-plane or two-plane dynamic balance measurement
Measuring value and angle are directly displayed by digital tube
Imported components, Lower failure rate
V-shaped ceramic support rods, a very high precision and service life
10 sets rotor data can be storage
Light and compact design, to less space
Range of Application
PRQ series soft bearing balancing machine is designed specially for micro-rotor balancing and test. With its high sensitivity, convenient operation. Highly praised by the majority of users
Special Features
1. Measuring method: 2 plane dynamic balancing measurement
2. Display mode: 0.5 inch digital tube
3. Type of Drive: Belt Drive
4. Soft bearing mode: Ceramic Support Rods
5. Minimum display Accuracy: 0.001g
6.10 kinds rotor data storage
Production Parameters
| Technical data at a glance | PRQ-0.5/1.6 |
| Max Mass of Workpiece(kg) | 0.5/1.6 |
| Max Diameter of Workpiece (mm) | Ø150 |
| Distance Between Two Support Bearings (mm) | 20-220 |
| Journal Diameter Scope of Workpiece (mm) | 2-16 |
| Maximum Diameter of Driving Belt (mm) | Ø60 |
| Balancing Speed (r/min) | ~1470 |
| Motor Power (kw) | DC0.05 |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.1g@mm/Kg |
| Power Supply | AC220V,Single-phase,50HZ |
