• Model NO.：CTM-1000,2000
• Mass Scope of Workpiece：<900kg
• Type：Strength Testing Machine
• Maxcapacity：>1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Hydraulic Loading
• Display：Digital
• Control：Manual Control
• Weight：500-1000Kg
• Oil Cylinder Position：Under
• Test Material：Concrete
• Application：Mechanics Test
• Delivery Time：5-10working Days
• Work Power：AC 220V,380V, 50,60Hz
• Transport Package：Wooden Case
• Specification：1000kn, 2000kn
• Trademark：SERVE REAL
• Origin：China
• HS Code：9031809090
• Production Capacity：500PCS,Year
• Package size per unit product：1100.00cm * 800.00cm * 1300.00cm
• Gross weight per unit product：650.000kg

Basic Info.

Model NO. CTM-1000/2000 Mass Scope of Workpiece <900kg Type Strength Testing Machine Maxcapacity >1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Hydraulic Loading Display Digital Control Manual Control Weight 500-1000Kg Oil Cylinder Position Under Test Material Concrete Application Mechanics Test Delivery Time 5-10working Days Work Power AC 220V/380V, 50/60Hz Transport Package Wooden Case Specification 1000kn, 2000kn Trademark SERVE REAL Origin China HS Code 9031809090 Production Capacity 500PCS/Year

Packaging & Delivery

Package size per unit product 1100.00cm * 800.00cm * 1300.00cm Gross weight per unit product 650.000kg

Product Description

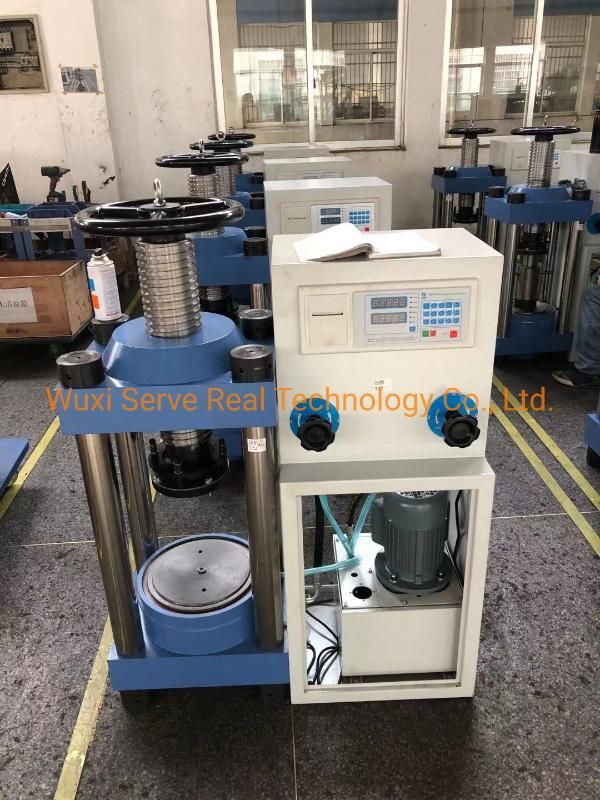

This machine is mainly used for compression strength test of brick, cement mortar and other construction materials, also for other material mechanical test.



Features

1. Electric load cell for load test
2. Load and loading rate real time indicating
3. Max load maintaining
4. Overload protection
5. Power failure data recovery

 Technical specification


Term	CTM-2000	CTM-1000
Capacity range(KN)	0-1000	0-2000
Indication value relative error	±1%	±1%
Bearing platen size(mm)	220*280	220*280
Upper lower platens Max. distance(mm)	330	330
Piston Max. stroke(mm)	40	40
Piston dia.(mm)	φ250	φ250
Hydraulic pump rated pressure(Mpa)	40	40
Power supply	220/380V, 50Hz	220/380V, 50Hz
Power	0.75W	0.75W
Overall size(mm)	960*460*1170	900*400*1150
Net weight(kg)	800	800
