• Model NO.：XP-1A
• Battery life：30 hours

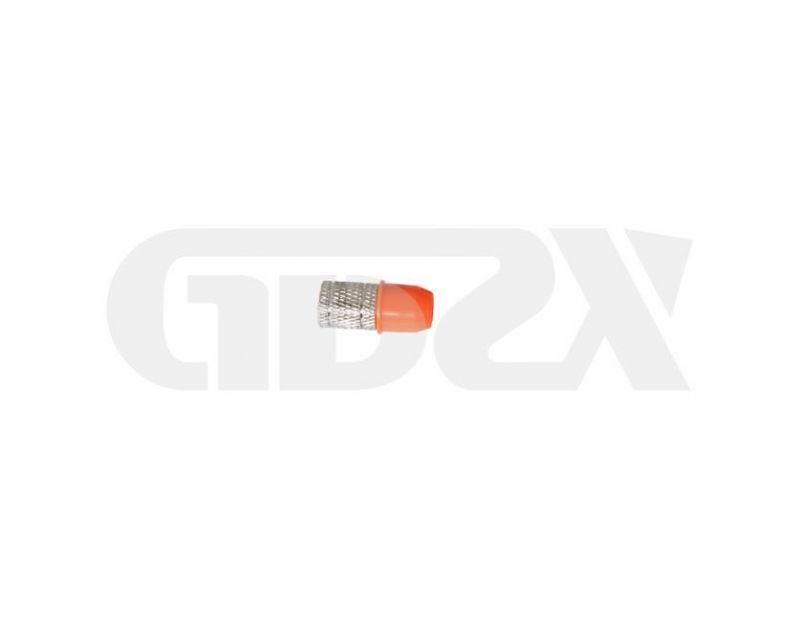

• Sensing tip life：Approx. 20 hours
• Weight：560g
• Size：22.9*6.5*6.5cm
• Certification：CE,SAE,ISO,GB
• Probe fixed length：35.5cm
• Transport Package：Wooden Case or Carton
• Specification：Universal Testing Machine
• Trademark：GDZX
• Origin：China
• Production Capacity：1200sets,Year

Basic Info.

Model NO. XP-1A Battery life 30 hours Sensing tip life Approx. 20 hours Weight 560g Size 22.9*6.5*6.5cm Certification CE,SAE,ISO,GB Probe fixed length 35.5cm Transport Package Wooden Case or Carton Specification Universal Testing Machine Trademark GDZX Origin China Production Capacity 1200sets/Year

Product Description

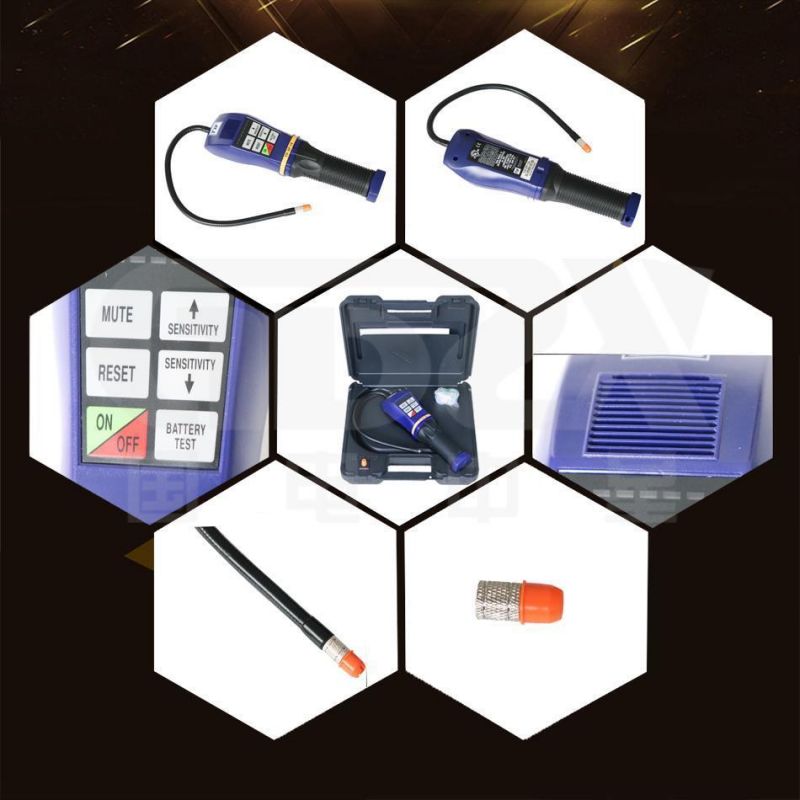

SAE J1627 1S Reset  SF6 Handheld  Gas Detector gas Leak Detector

Introduction

    The core of XP-1A handheld SF6 gas leak detector is a microprocessor. The digital signal processing technology used by it makes it possible to use better signal than the control circuit and sensor head. In addition, the number of components used in the circuit is reduced by about 40%, thereby improving reliability and performance. The microprocessor monitors the voltage value of the sensor head and the battery in real time, up to 4000 times per second, and can compensate for even small fluctuations in signal pulses in time. This makes the instrument a stable and reliable detection tool in almost all environmental applications.


Features

1. With unique sensitivity adjustment, original tracking leakage point.

2. Power display, simple operation and easy to carry.

3. Fully intelligent, anti-pollution, anti-interference, good repeatability, fast response speed, high sensitivity, high stability, microprocessor control.

4. With digital signal processing, three-color visual display, with noise suppression characteristics.

5. Seven levels of sensitivity, providing orders of magnitude up to 64 times, cordless and portable.

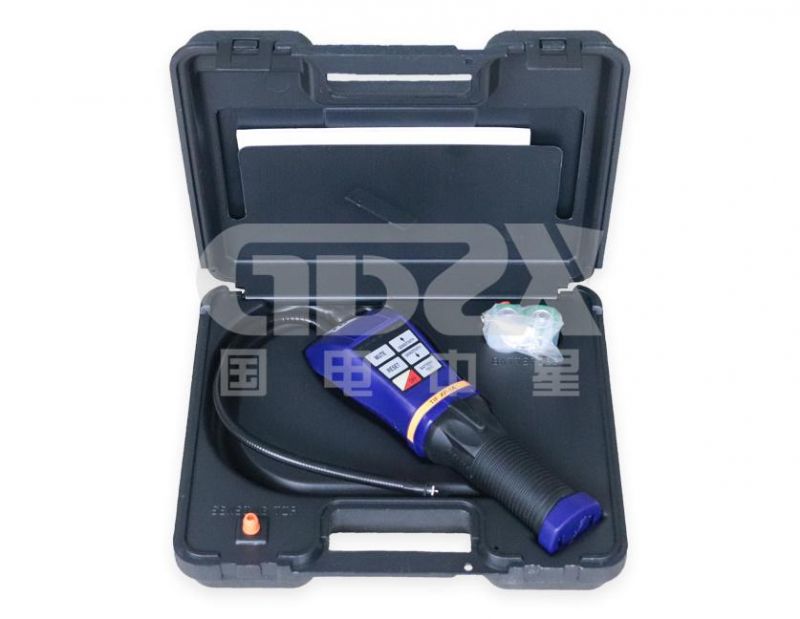

6. Operate with two C batteries, touch keyboard control, including carrying case, real-time sensitivity adjustment.

Technical parameters

Power source	3V DC, two C-size alkaline batteries
Sensitivity	The guaranteed value for R12, R22 and R134a according to the SAEJ1627 test is 14 g / year
Limit sensitivity	Used for SF6 and all halogen-based refrigerants <3g / year
Operating temperature	0-52 centigrade
Response time	Instantaneous
Reset time	1 second
Warm-up time	About 2 seconds
Weight	560 grams
Device size	22.9* 6.5*6.5cm
Probe fixed length	35.5cm

Company introduction

    Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

Service and Warranty



Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.

PACKING AND SHIPPING

(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.

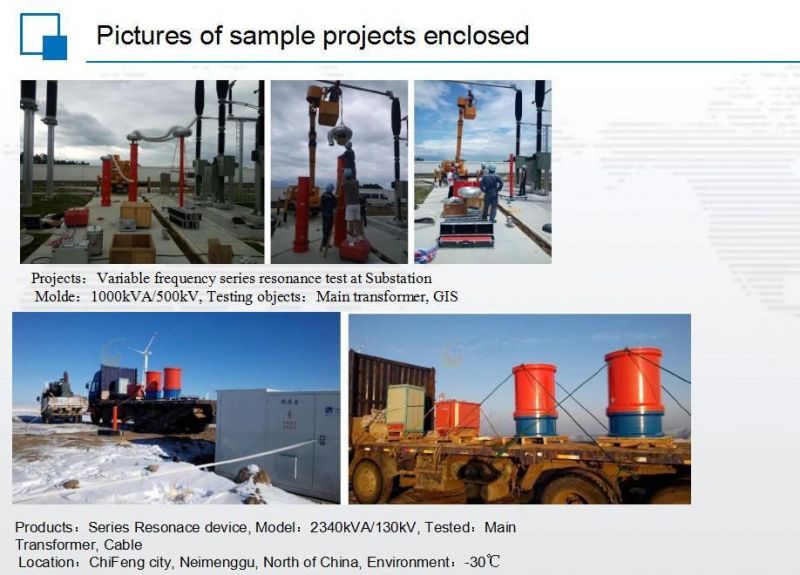

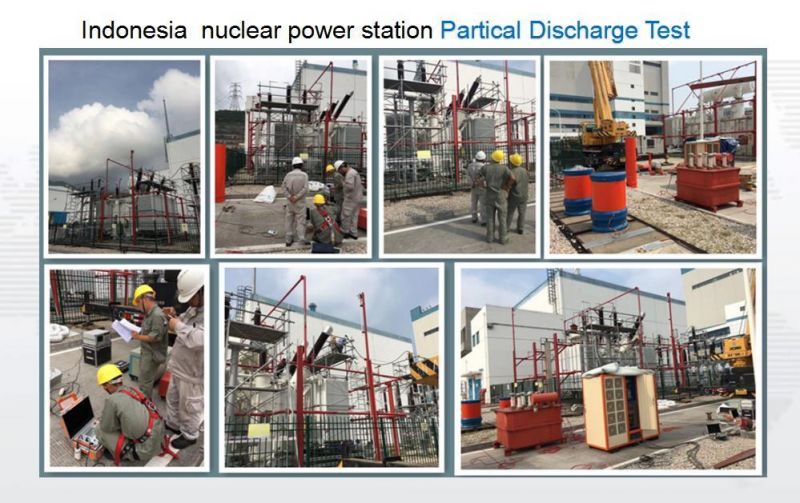

Test cases
