Power System Alternator Electric Parameters Signal Recorder and Analyzer
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Voltage input range：-10V ~ 10V, -200V ~ 200V, -400V ~ 400V;
- Current input range：-20mA ~ 20mA
- Switch signal range：DC12-220V
- Maximum breaking capacity of the switch：AC220V,1A
Base Info
- Model NO.：ZXBX-12
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
-200V ~ 200V voltage range Input impedance 820K Euro
-400V ~ 400V voltage range Input impedance 820K Euro
-20mA ~ 20mA current gear input impedance 50 ohm
-100mV ~ 100mV voltage range input impedance> 10M

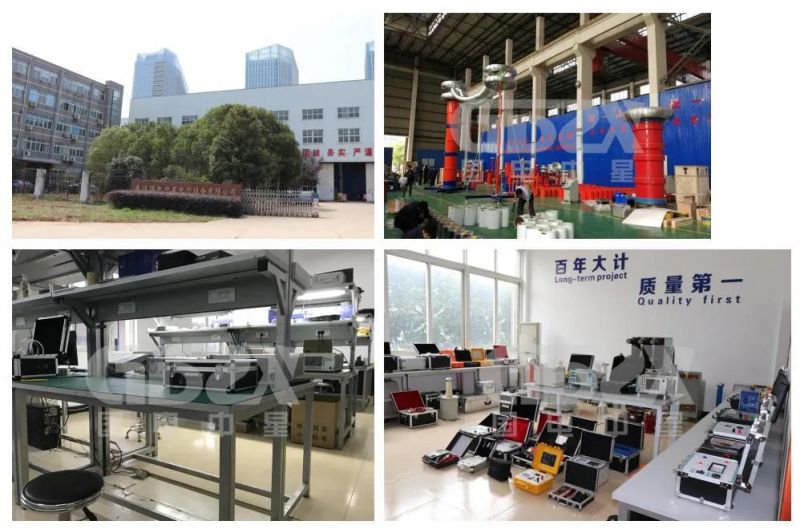

Company introduction
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
Features
1. Draw test curves in real time, and provide a variety of curve analysis tools to enable users to zoom and position the curve at will.
2. The graphics in the current oscilloscope can be edited, including free logos, color changes, etc., to facilitate the production of test reports.
3. A spectrum analysis tool is provided so that users can easily obtain the spectrum graph of the signal.
4. The signal can be arbitrarily selected as the X axis, and the Y axis is used to draw the relationship curve of the signal.
5. A harmonic analysis tool is provided, which can perform harmonic analysis on the collected signal, and the harmonic order is 1024 times.
6. Combined calculation tools enable users to add, subtract, multiply, divide and integrate the collected signals.
7. Calculate the effective value and power of the selected channel signal.
8. Perform power and symmetry analysis on the selected three-phase signals.
9. Draw a phasor diagram of the selected signal.
10. Select the channel signal type through software: DC instantaneous value or AC effective value.
11. Built-in generator three-phase short-circuit characteristic curve, no-load characteristic curve, excitation system disturbance test, demagnetization time constant, frequency and voltage characteristics, load rejection test, standard test template for auto-simultaneous synchronization test, software automatically calculates test result parameters .
12. The instrument can automatically generate Word test report and Excel test report.
13. The test report automatically marks the curve, so that the test report is fully automated.
14. The names and units of all sampling channels can be redefined.
15. The test environment settings and instrument settings for various tests are automatically saved.
16. Automatically calculate the test parameters of various test templates.
17. Simple and convenient channel filtering method.
