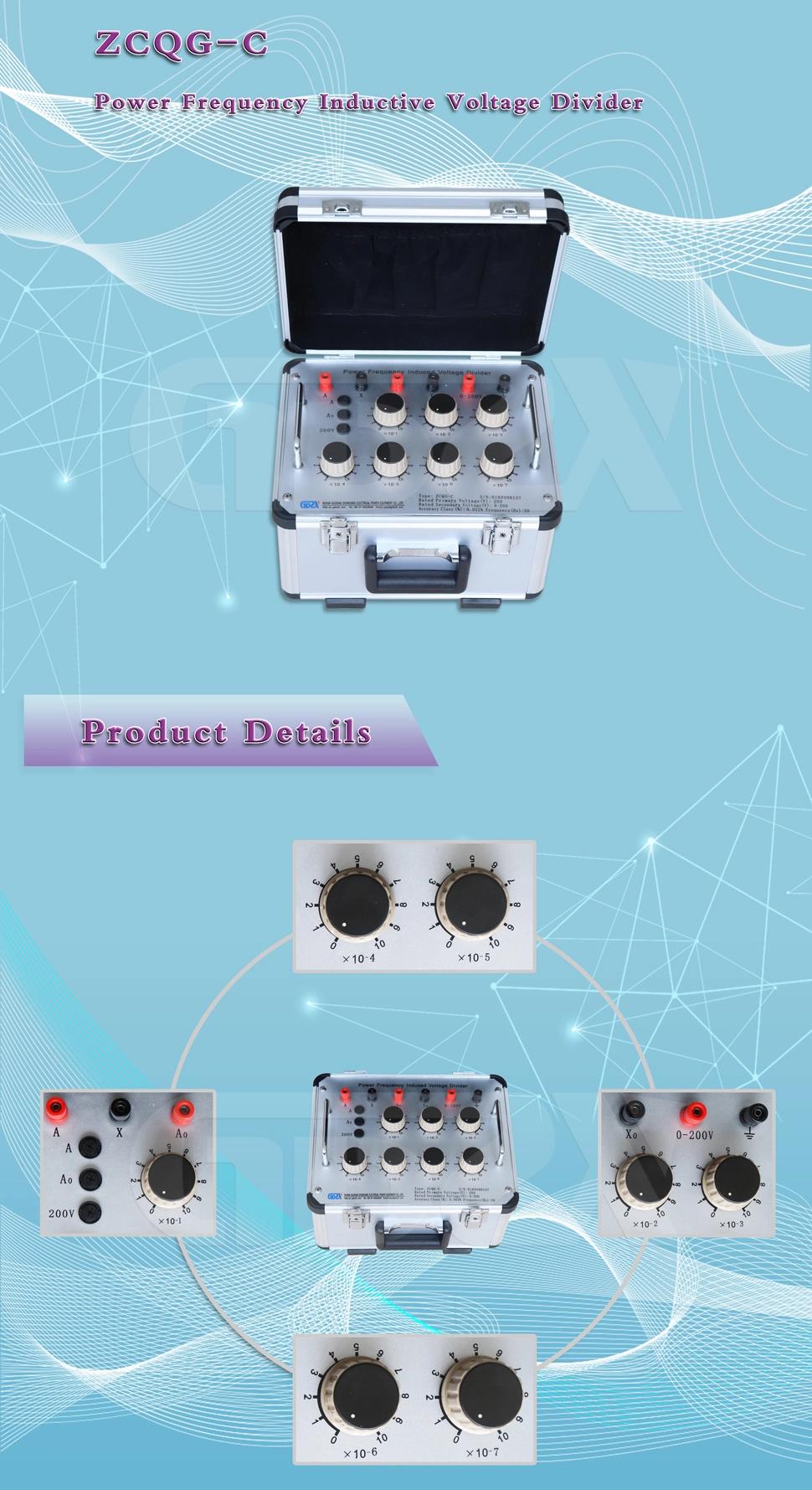

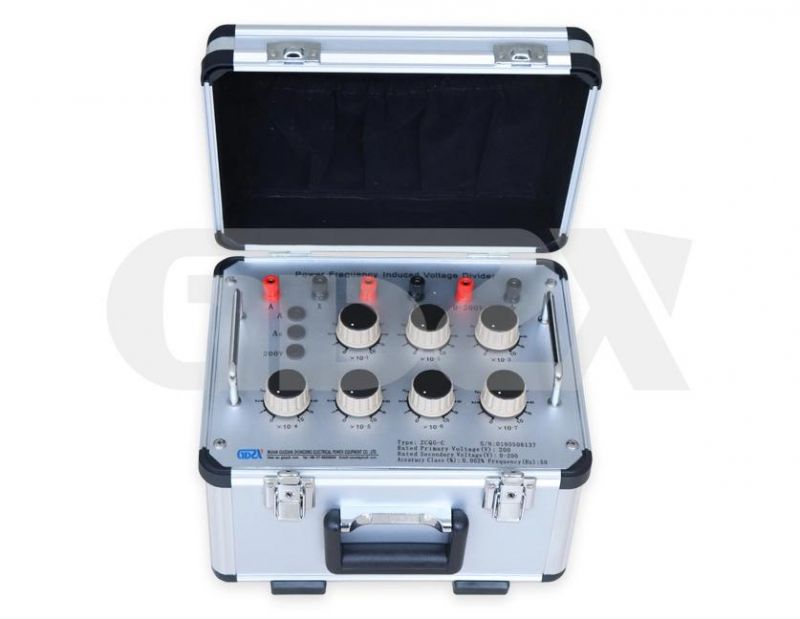

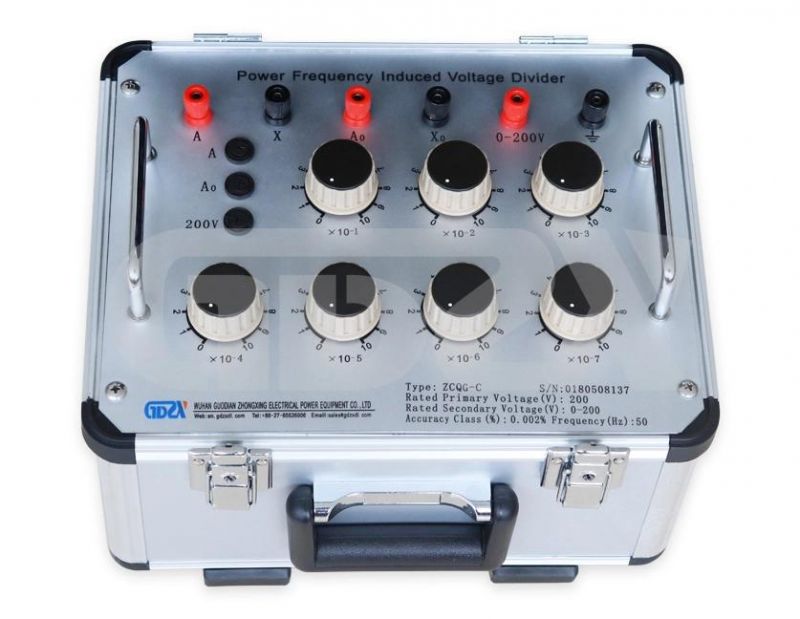

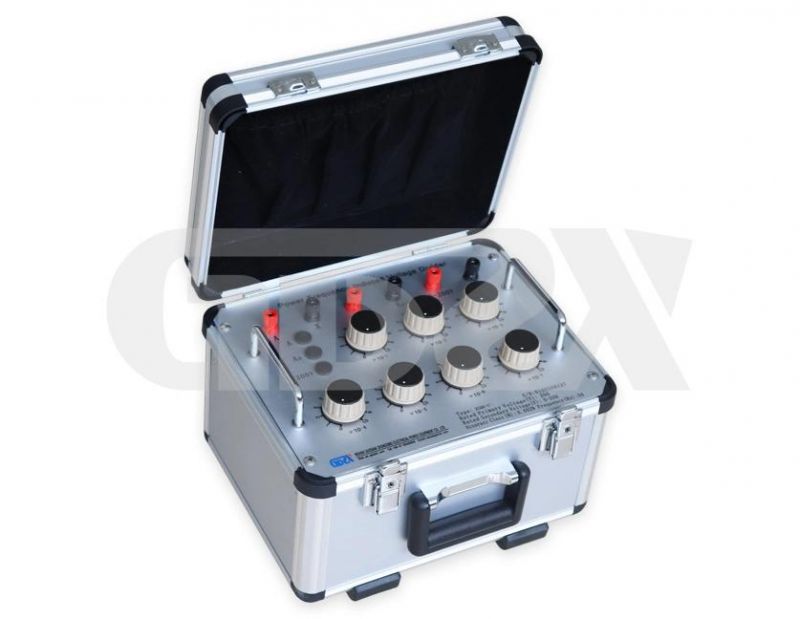

High Accuracy Power Frequency Inductive Voltage Divider
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Rated primary voltage：200V
- Rated secondary voltage：0~200V
- Rated load：0VA
- Accuracy class：0.002
Base Info
- Model NO.：ZCQG-C
- The input voltage distortion coefficient：<5%
- Frequency：50+,-0.5Hz
- Relative humidity：<80%; Temperature:20+,-5centigrade
- Altitude：<1000m
- Weight：11Kg
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description

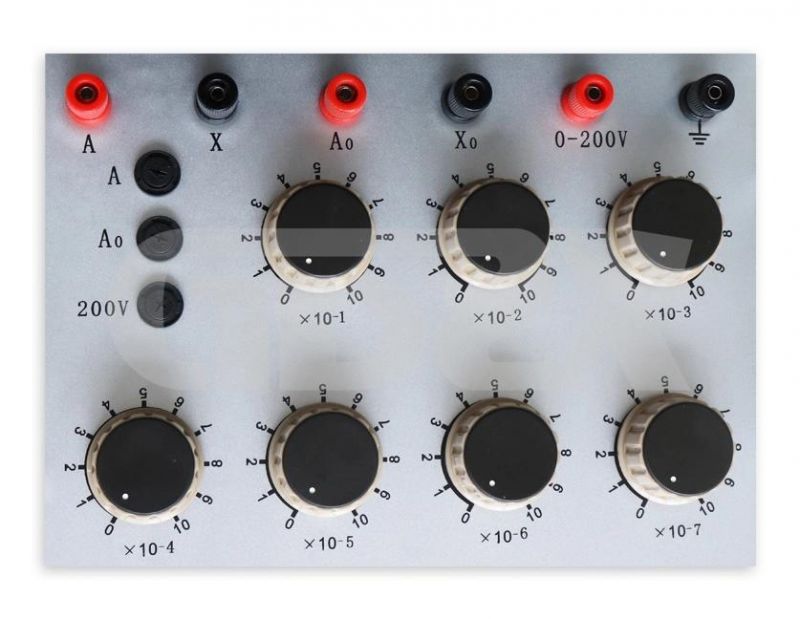

The 200V power frequency self coupling inductive voltage divider uses self coupling two stage voltage proportional device to cascade operation mode, and generates any voltage proportion value by switching the switch. It has the advantages of accurate voltage ratio, stability and giving the universal ratio. ZCQG-C Power Frequency Inductive Voltage Divider can be widely used in various measuring circuits and measuring devices.
Technical Indicators
| 1. Environment | 1) Temperature:20±5ºC 2) Relative humidity:<80% 3) Altitude:<1000m 4)Interference: No strong electromagnetic interference source and vibration |
| 2. Power supply conditions | 1) Frequency:50±0.5Hz 2) The input voltage distortion coefficient:<5% |
| 3. Performance index | 1) Rated primary voltage:200V 2) Rated secondary voltage:0~200V 3) Rated load:0VA 4) Accuracy class:0.002 5) Weight:11Kg |
Company introduction
Service and Warranty
PACKING AND SHIPPING
Test cases
Features
1.High precision, good linearity, high stability.
2.Small volume, easy to use.
