• Model NO.：AC380-500KW
• Rated Voltage：AC 380V
• Contactor：Siemens
• Cooling：Forced Air Cooling
• Color：Ral Card
• Working Mode：Continuous
• Operating Ambient Temperature：-10°c~40°c
• Transport Package：Wooden Case
• Specification：4 CMB
• Trademark：Triumph Load
• Origin：China Hebei Province
• HS Code：9030390000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. AC380-500KW Rated Voltage AC 380V Contactor Siemens Cooling Forced Air Cooling Color Ral Card Working Mode Continuous Operating Ambient Temperature -10°c~40°c Transport Package Wooden Case Specification 4 CMB Trademark Triumph Load Origin China Hebei Province HS Code 9030390000 Production Capacity 2000 Sets/Year

Product Description

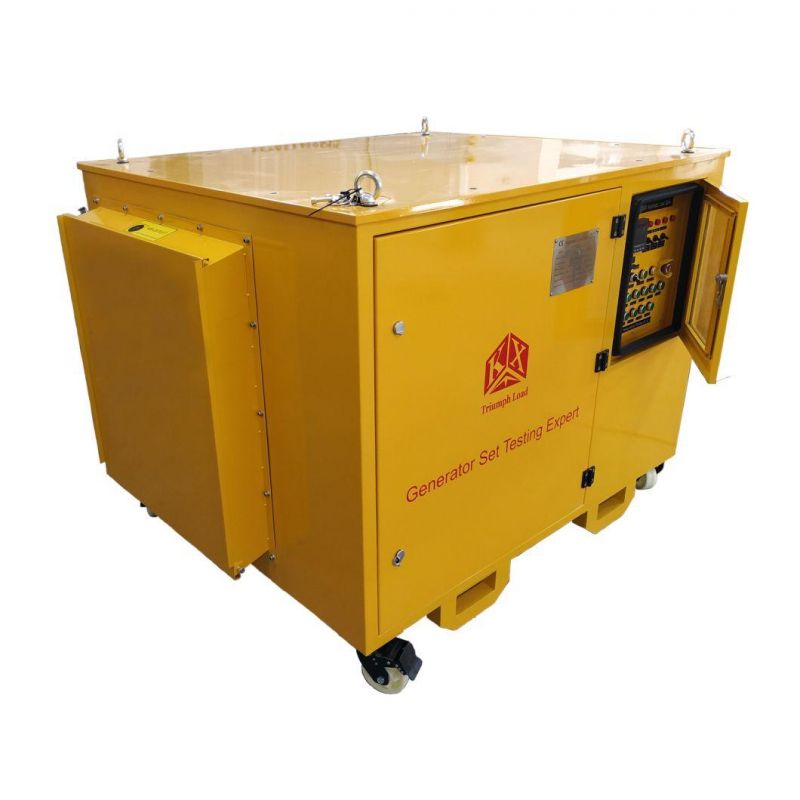

500kW Dummy Load bank
General Introduction
Triumph load can simulate the real working conditions and provides a rigorous test regime for power supplies from 1kW to 60MW. Resistive, inductive(reactive),capacitive or combined load banks can be customised for any application. They can be used for testing numerous sets in a workshop environment, or used for on-site commissioning, witness tests and proof trials.
Custom-built load banks can be supplied for most powers, voltages, frequencies and sizes. Multi-voltage load banks are also available for operation over a large voltage range. At the same time, It can operate in parallel with more than two units.
Triumph load are available in stationary type for permanent installation or portable type with fork lift pocket base, castors. Larger load banks, typically above 1200kVA, are based on an ISO container construction. Special finishes including custom paint colors and stainless steel casings can be supplied.

Main functions:
1. Users can set adjustable load power within rated power.
2. Current, voltage, frequency, power factor, and active power, reactive power, and apparent power can be displayed.
3. With software programmable control, graphs of current, voltage, frequency, power factor, power can be displayed, saved and printed.
Control mode: manual control (control panel) with remote controller box or PC control.
Display meters: multi-function digital meter or generator tester.
Protection: Over load protection, over heat protection, short circuit protection, Emergency stops switch, etc

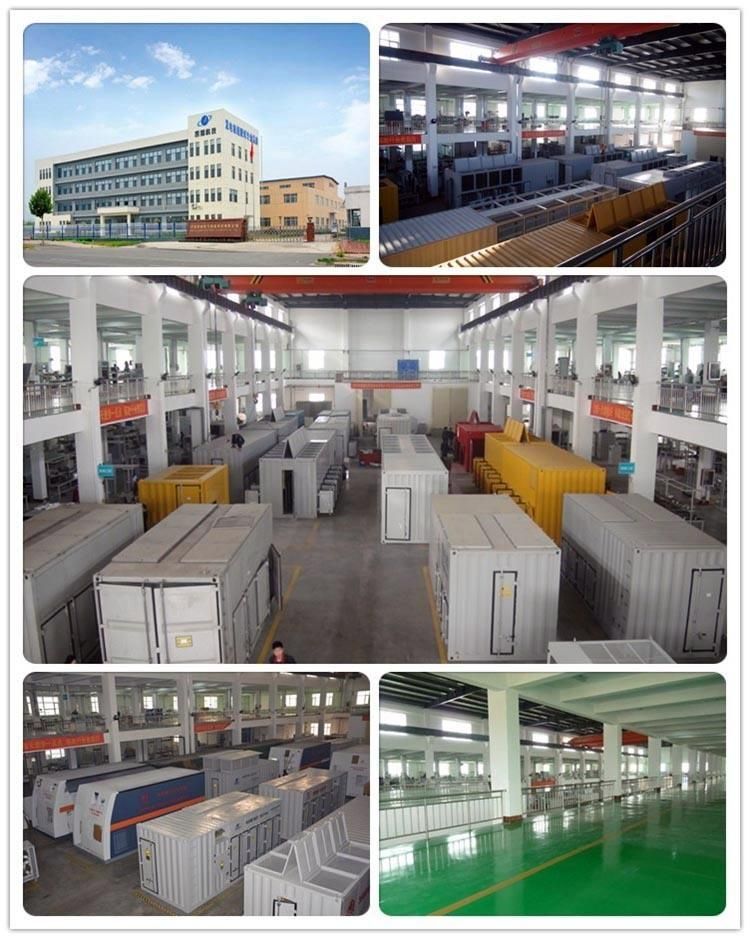

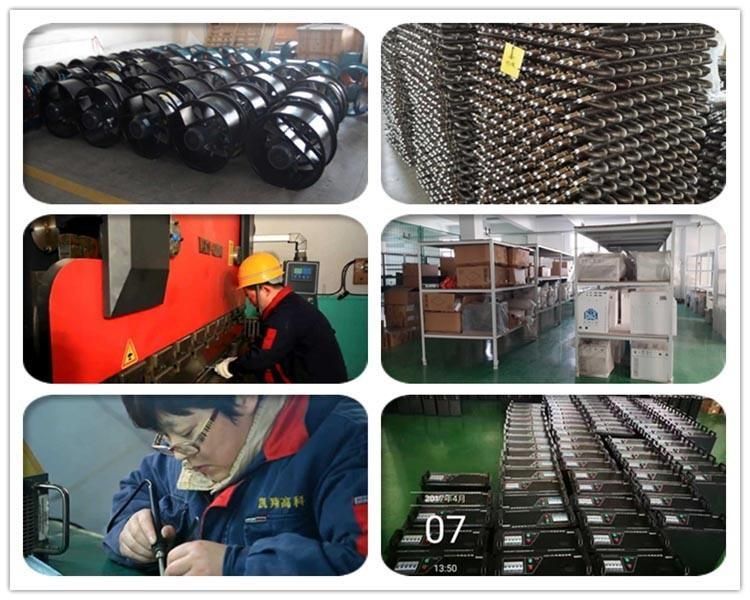

Our factory
