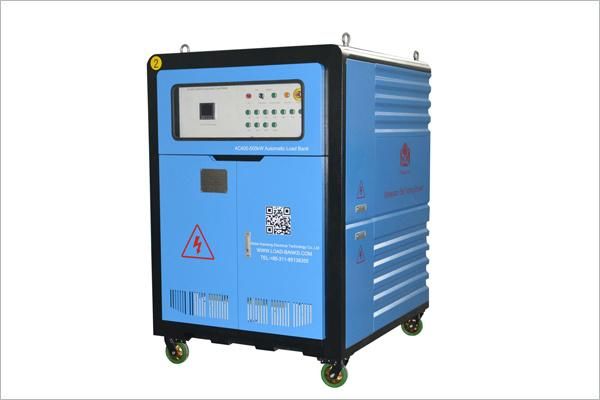

500kw Easy Moving Dummy Load Bank
Hebei Kaixiang Electrical Technology Co., Ltd.- After-sales Service：1 Year
- Warranty：12month
- Accuracy Grade：0.5
- Loading Method：Automatic
- Display：Digital
- Control：Computer Control
Base Info
- Model NO.：AC415-500kW
- Weight：500-1000Kg
- Power Source：AC415
- Rated Voltage：415VAC 50Hz
- Power：500kw
- Duty Cycle：Continuous
- Certification：ISO CE SGS
- Cooling：Forced Air Cooling
- Altitude：No More Than 1500m
- Transport Package：Wooden Case
- Trademark：TriumphLoad
- Origin：China
- Production Capacity：2000 Sets, Per Year
Description
500KW Load Bank
Rating Voltage/Frequency
480VAC/50Hz, 3 phase
Rated Load Power
Resistive load: 500kW
Installed Capacity
Resistive load: 500kW
Load Step
1,2,2,5,10,10,20,50,100,100,200kW, min step load: 1kW
PF(Power Factor)
1
Load Tolerance (each step)
±5%
Load Tolerance(overall)
±3%
Display Precision
0.5 class
Control Power
380VAC/50Hz, 3 phase 4 line, 220V 1-phase
Wire Connection
Load power supply input--Copper bar (star coupling)
Control power supply input--Connector-bar
Insulation
F
Duty Cycle
Continuous
Casing Dimensions and Cooling
About 900*750*680 mm(length*width*height) Forced air cooling, Horizontal inlet air, Vertical outlet air
Weight
About 250kgs/set
