• Model NO.：XB-OTS-506A
• Display：Digital
• Control：Microcomputer Control
• Weight：0-100Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Specimen Size：Minimum Size: 230*50 mm
• Friction Speed：43 Times,Min ( 21,43,85, 106 Times,Min, Adjustable
• Friction Load：908g ( 2lb), 1810g (4 Lb)
• Friction Stroke：60 mm
• Warranty：1 Year
• Friction Area：50*100 mm
• Frequence Setting：1 ~ 999999
• Warranty Period：0~9999 Times, Auto-Shutdown
• Transport Package：Standard Strong Wood Case
• Specification：(L*W*H)430*335*405 mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-506A Display Digital Control Microcomputer Control Weight 0-100Kg Power Source AC380V Oil Cylinder Position Under Specimen Size Minimum Size: 230*50 mm Friction Speed 43 Times/Min ( 21,43,85, 106 Times/Min, Adjustable Friction Load 908g ( 2lb), 1810g (4 Lb) Friction Stroke 60 mm Warranty 1 Year Friction Area 50*100 mm Frequence Setting 1 ~ 999999 Warranty Period 0~9999 Times, Auto-Shutdown Transport Package Standard Strong Wood Case Specification (L*W*H)430*335*405 mm Trademark OTS Origin Guangdong, China (Mainland) Production Capacity 248 Sets Per Month

Product Description

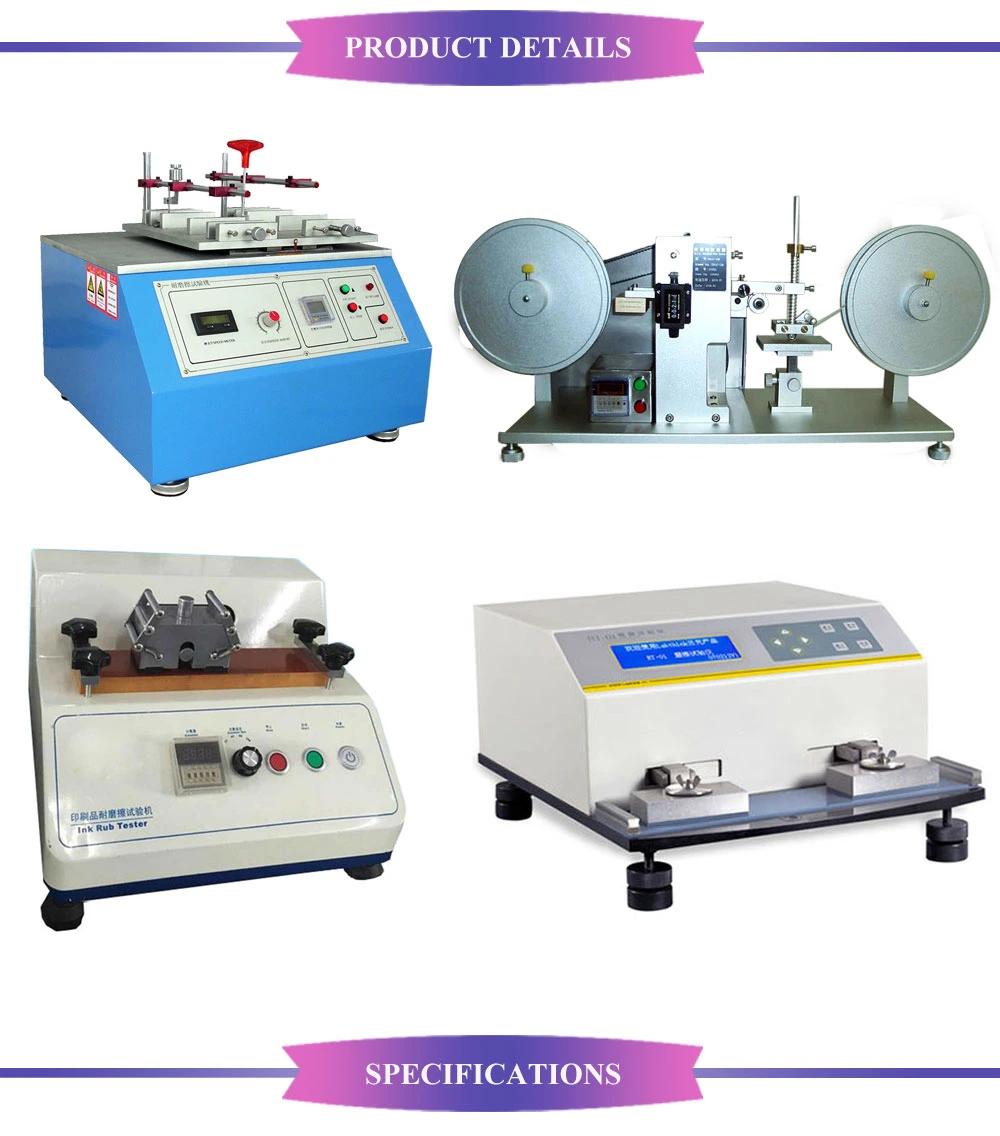

Chinese Supplier Intelligent Ink Rubbing Fastness Tester MachineDescription :
   Ink Rubbing Fastness Testing Instrument is used to test the paper and paperboard labels, folding cartons, corrugated boxes etc with high smoothness, Which not apply to test materials that thickness over 0.5mm or the paper and paperboard with good air permeability.
   Ink Rub Tester can do dry or wet rubbing test, discoloration test, paper fuzzy test, and special friction test. It can help users to analyze the reason of lower abrasion assistance, ink layer falling-off, lower printable of PS board, and adhesion of coating layers of other


Design Criteria: JIS-507-1, TAPPI-UM486, GB7706


The main technical parameters:

Operating Method	Microcomputer Control
Display	LCD
Specimen Size	Minimum Size: 230*50 mm
Friction Speed	43 times/min ( 21,43,85, 106 times/min, adjustable)
Friction Load	908g ( 2LB), 1810g (4 LB)
Friction Stroke	60 mm
Friction Area	50*100 mm
frequence Setting	0~9999 times, auto-shutdown
Outside Dimension (L×W×H)	430×335×405 mm
Weight	40 Kg
Power	AC220V, 60W

Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
