• Model NO.：XB-OTS-P
• Heating Rate：About 10mins From Rt to 100 C
• Inner Material：SUS 304 Stainless Steel Plate
• Outernal Material：Stainless Steel Plate +Powder Coat
• Standard：GB, T 3922, Aatcc 15, ISO105-E04, JIS L 0848
• Weight：100-500kg
• Use：Hot Air Circulating Oven
• Transport Package：Strong Wooden Case
• Specification：600*900*500 mm
• Trademark：OTS
• Origin：China
• HS Code：85141090
• Production Capacity：258 Sets Per Month

Basic Info.

Model NO. XB-OTS-P Heating Rate About 10mins From Rt to 100 C Inner Material SUS 304 Stainless Steel Plate Outernal Material Stainless Steel Plate +Powder Coat Standard GB/ T 3922, Aatcc 15, ISO105-E04, JIS L 0848 Weight 100-500kg Use Hot Air Circulating Oven Transport Package Strong Wooden Case Specification 600*900*500 mm Trademark OTS Origin China HS Code 85141090 Production Capacity 258 Sets Per Month

Product Description



Specification

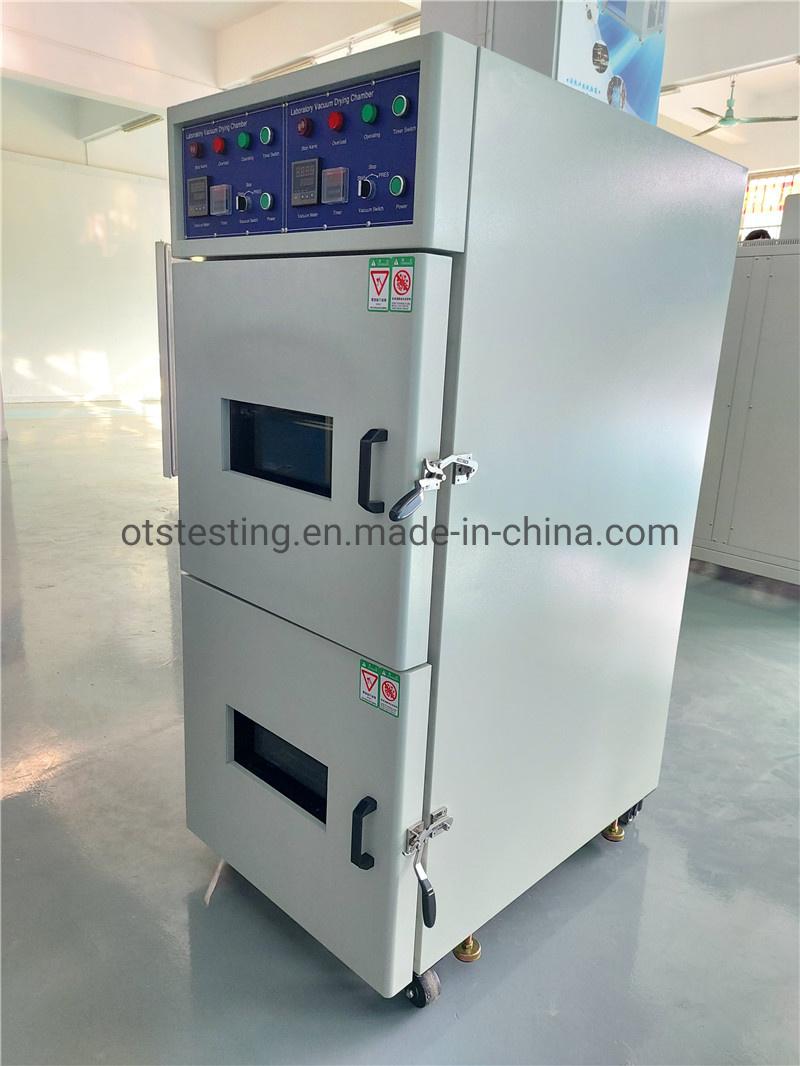

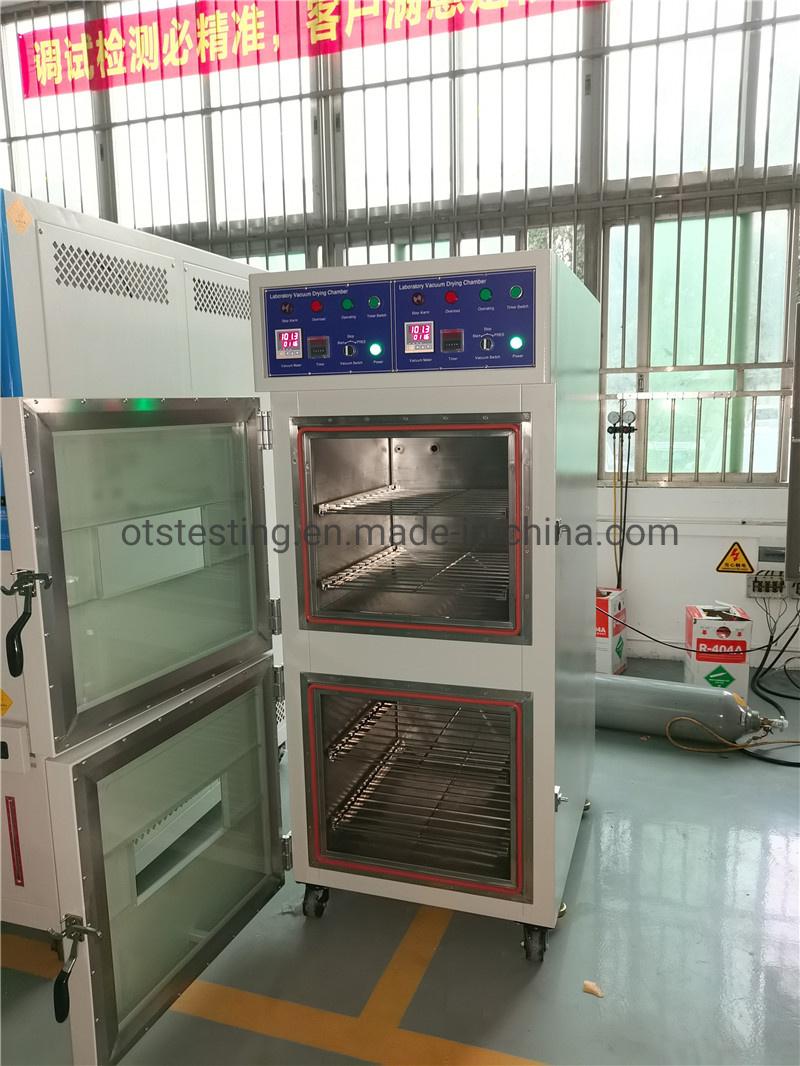

1. Internal dimensions: 510 (width) × 610 (depth) × 450 (height) mm; (double-layer independent control) 2. Approximate external dimensions: 730 (width) × 1100 (depth) × 1750 (height) mm, subject to the actual product; 3. Compartment: The inner box is divided into two layers, with two mesh panels; 4. Viewable window: the door has 19mm tempered glass window, specification W350*H150mm; 5. The internal material is: 304# stainless steel industrial plate with a thickness of 4.0mm, internal strengthening treatment, no deformation after vacuuming; 6. The outer material is: cold-rolled steel plate, thickness 1.2mm, powder paint treatment; (beige white) 7. Hollow filling material: rock wool, good heat preservation effect; 8. The door sealing material is: high temperature resistant silicone strip; 9. Install movable brake casters, which can be fixed in position and can be pushed arbitrarily; 10. The box structure is one-piece, and the operation panel and vacuum pump are installed on the right side of the machine; (as shown in the figure)

Vacuum system

1. Sealing: The machine adopts high-density silicone sealing strips to seal the door; 2. Barometer: use digital display barometer to display the real-time air pressure in the box; (as shown in the figure) 3. Air pressure sensor: using diffused silicon pressure transmitter; (see picture) 4. Timing function: pressure-holding timing, if the pressure-holding timing control is required after reaching the set air pressure, just turn on the timer, the pressure will be released automatically after the time is up, and the alarm will be prompted after the pressure is released, and it will be closed if not needed; 5. Air pressure control mode: automatic control type, it will automatically stop when the start pumping reaches the set value, and automatically start when it is below the lower limit, and work in this cycle to compensate for the leaked air pressure; 6. Pressure relief method: automatic pressure relief after the test, and manual pressure relief when the product is taken in the middle; 7. Air pressure range: 0.5KPa to 100.0KPa, absolute air pressure display, different regions show different air pressures; 8. Pressure-holding leakage rate: about 0.8KPa/hour; 9. Test pressure: 11.6KPa low pressure; 10. Air pressure control accuracy: ±0.3kPa (when 0.5~2KPa), ±0.5KPa (when 2KPa~20KPa), ±2KPa (when 20KPa~80KPa); 11. Pressure stabilization time: less than 10 minutes: 12. Vacuum pump configuration: equipped with YC0020 vacuum pump, motor power 220V/0.9KW (as shown in the figure)

Power

1,voltage: 220V       2,current: 9.0A       3,Power: 2.0KW    4,Circuit protection system: grounding protection, fast insurance, etc.

Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for High Temperature Vacuum Drying Oven
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer.

Used for:
It is widely used in tests of raw material performance, product packaging and product life of products in electronic, pharmaceutical, textile, automotive and other industries.

Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair


FAQ

1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
