• Model NO.：XB-OTS-P
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital, LCD ( Linkable to PC )
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Max Capacity：2.75j, 5.5j,11j,22j
• Impact Velocity (M/S)：3.5 M,S
• Energy Display Accuracye：0.01j
• Pendulum Angle：150
• Blade Radius：R=0.8+-0.2mm
• Transport Package：Standard Strong Wood Case
• Specification：580*580*1250mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：90248000
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-P Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital, LCD ( Linkable to PC ) Control Computer Control Weight 0-100Kg Power Source AC220V Max Capacity 2.75j, 5.5j/11j/22j Impact Velocity (M/S) 3.5 M/S Energy Display Accuracye 0.01j Pendulum Angle 150 Blade Radius R=0.8+-0.2mm Transport Package Standard Strong Wood Case Specification 580*580*1250mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 90248000 Production Capacity 248 Sets Per Month

Product Description

Product introduction:

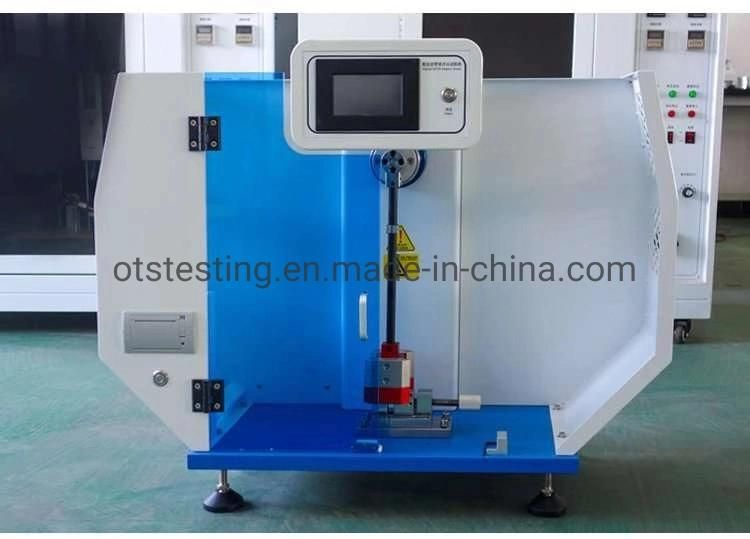

   The cantilever beam impact tester is used to determine the impact toughness of non-metallic materials such as plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic electrical appliances, and insulating materials. Pendulum impact testing machine is a common equipment for quality inspection by scientific research units, colleges and universities, and non-metallic material manufacturers. The machine is a simple structure, easy to operate, and high precision instrument. The digital display impact testing machine adopts high precision. Encoder technology has the characteristics of high accuracy, good stability and large measuring range. The digital measurement shows the impact strength and average value, the energy loss is automatically corrected, and the test report is printed.
 Product features:

Øa.High-precision intelligent controller, equipped with liquid crystal display, can read data intuitively and accurately
Øb,The first domestic company to use carbon fiber pendulum (patent applied for), in the impact direction, improve the rigidity of the material, and focus the maximum impact quality on the center of mass of the pendulum, truly achieving vibration-free impact test and increasing service life.
Øc,Using imported high-resolution digital encoder, angle test accuracy is higher and more stable
Ød,The impact hammer and imported ball bearings conforming to the principle of aerodynamics greatly reduce the friction loss caused by the machine
Øe,Automatically calculate the final result, the test data can save 24 groups of data and average
Øf,IZOD impact testing machine can choose Chinese and English operation interface, test results can choose J/m, KJ/M2 kg-cm/cm, ft-ib/in and other units
Øg,Built-in micro printer. 24 test data values can be printed one by one, and the average value can also be printed.
 Technical specifications:
Ø Display mode: color touch screen (Chinese and English)
Ø Angle sensor brand and accuracy: original imported Omron encoder, accuracy to 0.01°
Ø Energy display accuracy: 0.01J
Ø Impact speed: 3.5m/s;
Ø Pendulum energy: 2.75J, 5.5J
Ø Pendulum angle: 150°
Ø Distance from the center of the pendulum to the impact blade: 335mm
Ø Distance from impact blade to upper plane of jaw: 22mm
Ø Included angle of blade: 75±l°
Ø Blade radius: R=0.8±0.2mm
Ø Machine weight: 85kg
Ø Power supply voltage: AC220V±10% 50HZ

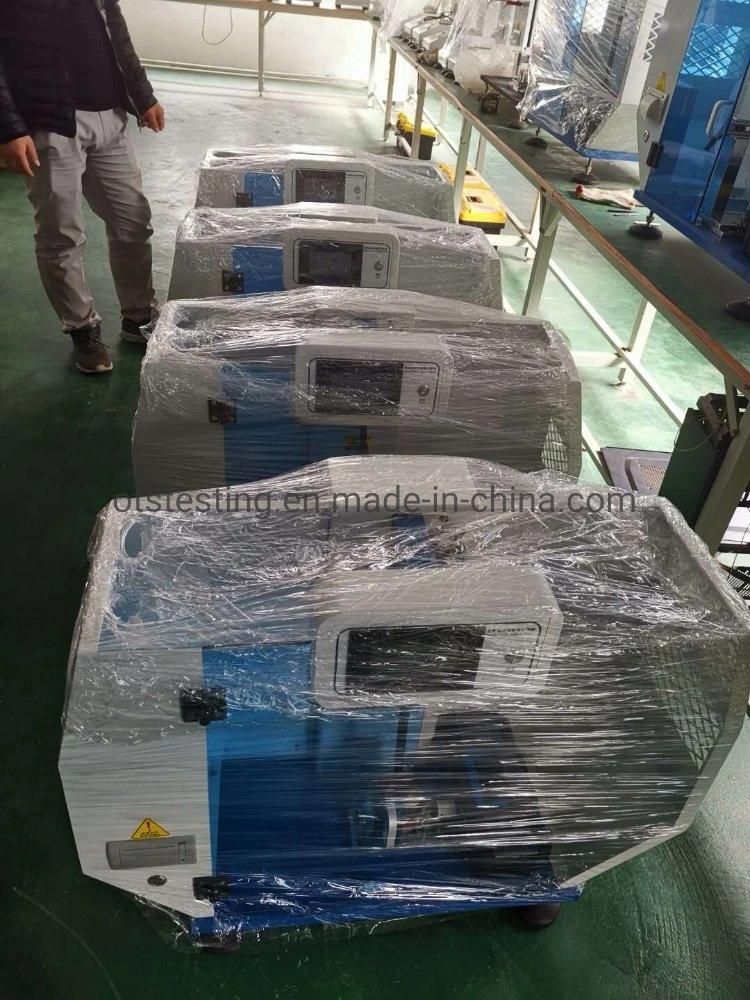

6.Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for ensile Strength Testing Machine

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

7.Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
8.Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
9.Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair





1.Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of biggest and professional manufacturer of Universal Tensile Testing Machine ; Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.



If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, English  video by Email. Or you can download on our official website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.  And if possible, we can also install your machine at site.
