• Model NO.：THR Series
• Temp. Rising Speed：0.1~3.0degree C,Min
• Temp.Falling Speed：0.1~1.5degree C,Min
• Analytic Accuracy：0.1degree C; 0.1% R.H
• Uniformity：+,-2.5degree C
• Control Accuracy：+,-0.5degree C
• Cooling System：Water Cooling
• Transport Package：Wooden Case
• Specification：CE
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：50 Sets,Month

Overview Product Description

• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector
• Adjustable Shelf
• With RS485/232 output to computer
• Window Software
• Remote fault notification(optional)
• With Viewing Window

Application:

Temperature Humidity Controlled Stability Chambers is used to test various types of materials for their tolerances Of heat, cold, dry, humidity. It is applied for quality inspection for all Types of big test samples,Such as electronic products, electric appliance, and products from communication, instrument,Automobile, plastic, metal, food, chemical, building materials, medical and aerospace Industries.

Product ParametersTechnical Parameters Model  THR-volume (low-temperature options : A ~ F)    Inner Dimensions(cm)  Customers designated space size and design   Temperature Range  Low Temperature(A:25degree C   B:0degree C   C:-20degree C  D:-40degree C  E:-60degree C   F:-70degree C )
High Temperature 80 degree C  (80degree C  ~150degree C  is optional)  Humidity Range  20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) Indication Resolution/
Distribution Uniformity of
Temperature & Humidity  0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H.  Control Accuracy of
Temperature and Humidity  ±0.5degree C ; ±2.5% R.H.  Temperature Rising/
Falling Velocity Temperature rising approx.  0.1~3.0°C/min;
temperature falling approx. 0.3~1.0°C/min;
 ( The Falling Velocity Min.1.0°C /min is a optional)  Cooling System  Water cooled Protection Devices Fuse-free switch, overloading protection switch  for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses,  fault warning system, water short storage warning protection  Optional Accessories  Slope for cart , Recorder, Water Purifier, Dehumidifier  Compressor  French Tecumseh Brand, Germany Bizer Brand  Power  AC 380 V(±10%),50/60HZ ,3 phase  5 Lines

Characteristics
1.New design temperature humidity climate test chamber walk in test chamber Evaporator no frosting under longtime Low temperature and low humidity running.
2.Automatic control system refrigerant demand save electricity above 30%
3.High heat load tested samples test environment
4.realize 95°C 95%high temperature and high humidity environment.
5.10% 20 °C ultra-low temperature range control ability
6.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German multilingual language switching.

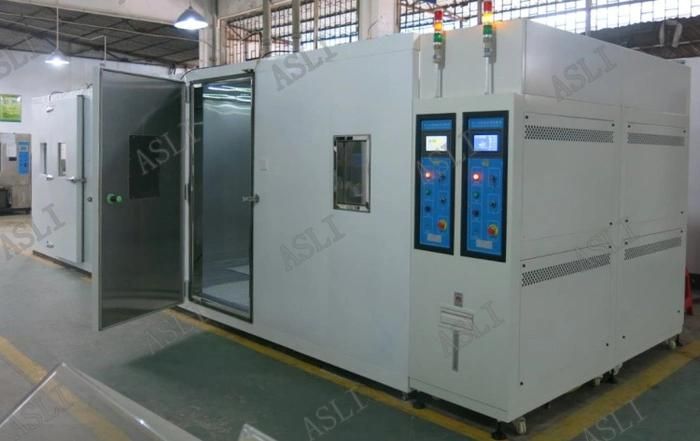

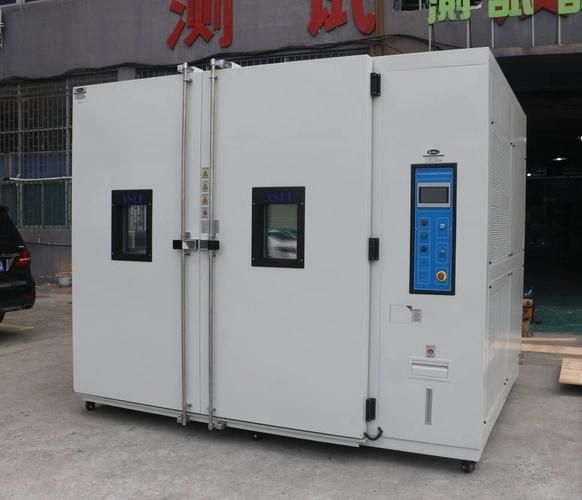

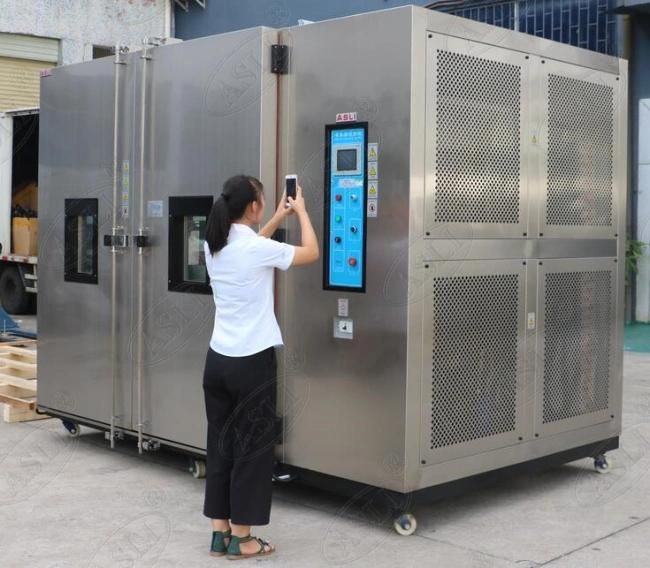

Detailed Photos

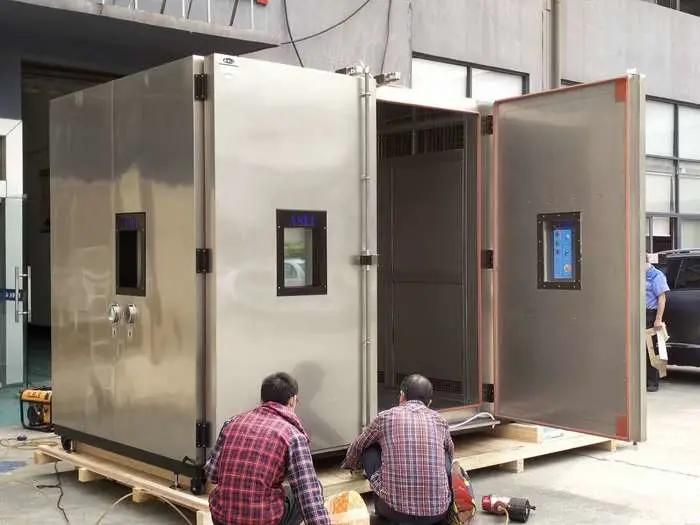

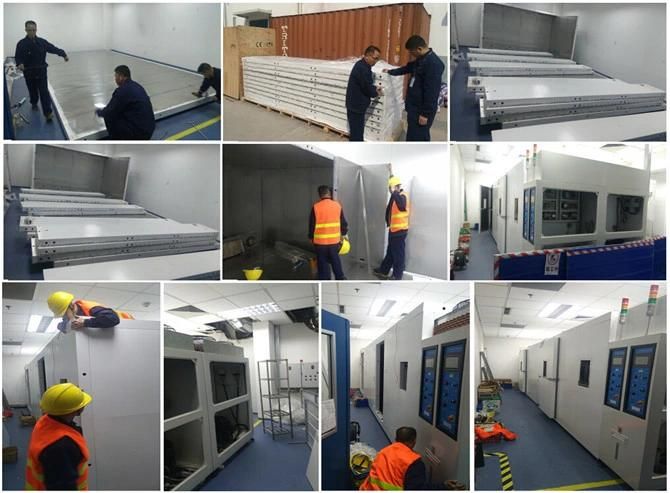

Machine Installation at Customer's Factory:

Main Features
1) The content of the custom environmental testing cabinet can be enlarged or narrowed according to user's environmental requirement.
2) Combined board, convenient to assemble and disassemble, simple structure.
3) Custom walk in environmental test chamber using pollution-free freezing medium R404, R23.
4) Capacious and brightly observation window with high light indoor explosion-proof, which allowed users to observe all indoor at any time.
5) Omni-directional safety protection device and power-off memory, ensure the safety of machine itself and users.
6) Winds blow out of the ceiling, which can reduce the influence of the wind indoor to the sample,and can also meet the demand of low wind speed and high degree of uniformity. The machine can connect with the computer, recorder(optional).
