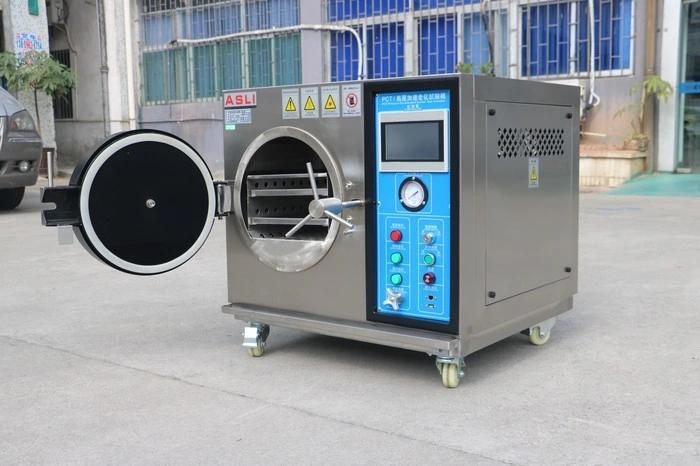

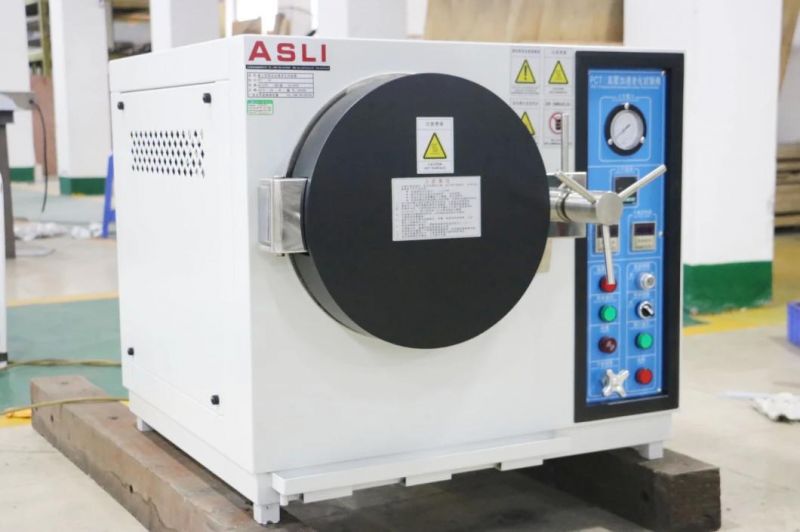

Testing Equipment Pct Hast Pressure Aging Test Chamber Pressure Cooker
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC380V
- Certification：CE, ISO
- Warranty：1 Year
- Model：Hast-35
- Equipment Capacity：43L
Base Info
- Model NO.：HAST-35
- Internal Dimension Diameter X D：350*450 mm
- Temperature Range：Rt~133 Deg C
- Humidity Range：70%~100%R.H.
- Pressure：0~2.0kg,Cm3
- Fuctions：High Pressure, High Temperature,High Humidity
- Steam Tmperature Range：100~133 Deg C
- External Material：Steel
- Power：AC220V
- Transport Package：Standard Wooden Case
- Specification：CE
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：100 Sets Per Month
Description
Overview
Product DescriptionProduct ParametersPCT - 45PCT - 55 PCT - 65 Internal Dimension Φ×D (mm) 300×250 350×450 450×550 550×650 650×750 External Dimension Φ×D (mm) 750×1200×800 800×1250×800 900×1380×900 1050×1550×1100 1200×1700×1250 Temperature Range of
Saturated Steam
(Operating temperature) (Temperature Range of Saturated Steam:100ºC~135ºC) ,
Temperature Range: 120ºC,100Kpa/ 133ºC 200 Kpa;(143ºC is special order) Relative Pressure/
Absolute Pressure Relative pressure: display values indicated on the pressure gauge
Absolute pressure: Value that add 100 Kpa based on display values indicated
on the pressure gauge (The actual value in the inner box) Humidity of Saturated
Steam 100%RH saturation steam humidity Steam Pressure
(Absolute Pressure) 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) Recursive Device Steam Natural convection circulation Safety Protective Devise Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) Accessories Two layers stainless steel plate Equipment Capacity(L) 17 43 87 155 250 Power AC 220V(±10%), 1 ø 3 Lines ,50/60HZ ;
Safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service:
Feedback within 2 hours, and offer solution in 4 hours and help to solve the problems.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.PCT Highly Accelerated Stress Test Chamber is our star products , and we had obtained the CE certification for this machine .
ASLi main test equipments:Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
