• Model NO.：PRZD-5H
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Product Name：Automobile Cooling Fan Balancing Machine
• Application：Fans Balancing Machine
• Fans Size：650*500 mm Diameter
• Safety Cover：Automatic Door
• Power Supply：Single Phase, 220V, 50 Hz
• Max Achievable Unbalancing Amount：5 G.mm,Kg
• Operation：15′′ Touch Screen
• Certificates：CE ISO SGS BV
• Package：One Fumigated Wooden Case
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP Balancer
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Technical data at a glancePRZD-5HMax Mass of Workpiece(kg)5Maximum Workpiece Frame Size(mm)650*500Balancing Speed(r/min)CustomizeMin Achievable Residual Unbalance Amount (emar)5g· mm/kgUnbalance Reduction Rate(%)≥90Electrical Parameters Measuring Number InstrumentVoltage 1-300v,
Current 0.02-50A,
Power factor 0.05
Frequency 45-65HZ (ACWorking Pressure0.45-0.6MpaWorking VoltageAC220VSecurityAutomatic doorSoftware InterfaceWeintek15 inch touch screenDimensionsL1900*H1720*W790mmOptional FunctionVibration, beating

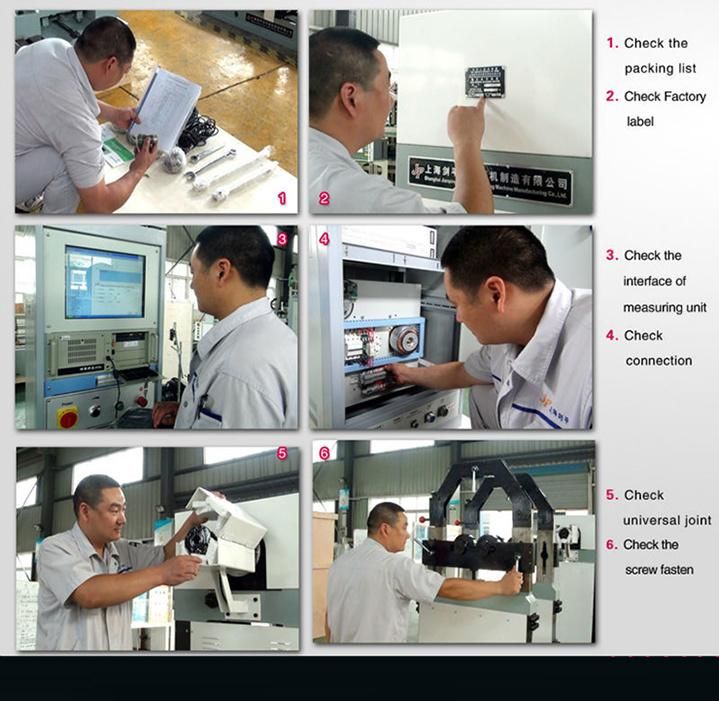

Delivery inspection



Warranty period:

Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.

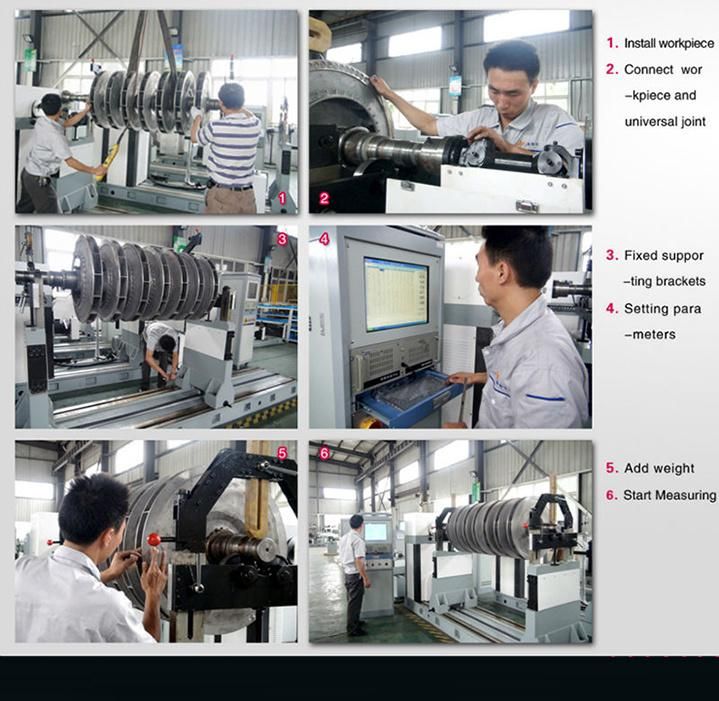

Workshop debugging



About Us:

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,

There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
