• Model NO.：XB-OTS-506A
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Usage：Paper Testing Instrument
• Testing Range：Microcomputer Control
• Specimen Size：Minimum Size: 230*50 mm
• Friction Speed：43 Times,Min ( 21,43,85, 106 Times,Min, Adjustable
• Friction Load：908g ( 2lb), 1810g (4 Lb)
• Friction Stroke：60 mm
• Friction Area：50*100 mm
• Frequence Setting：1 ~ 999999
• Warranty Period：0~9999 Times, Auto-Shutdown
• Outside Dimension (L*W*H)：430*335*405 mm
• Transport Package：Strong Wooden Case
• Specification：Outside Dimension 430*335*405 mm
• Trademark：OTS
• Origin：China
• Production Capacity：189 Unit,Units Per Month

Basic Info.

Model NO. XB-OTS-506A Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Usage Paper Testing Instrument Testing Range Microcomputer Control Specimen Size Minimum Size: 230*50 mm Friction Speed 43 Times/Min ( 21,43,85, 106 Times/Min, Adjustable Friction Load 908g ( 2lb), 1810g (4 Lb) Friction Stroke 60 mm Friction Area 50*100 mm Frequence Setting 1 ~ 999999 Warranty Period 0~9999 Times, Auto-Shutdown Outside Dimension (L*W*H) 430*335*405 mm Transport Package Strong Wooden Case Specification Outside Dimension 430*335*405 mm Trademark OTS Origin China Production Capacity 189 Unit/Units Per Month

Product Description

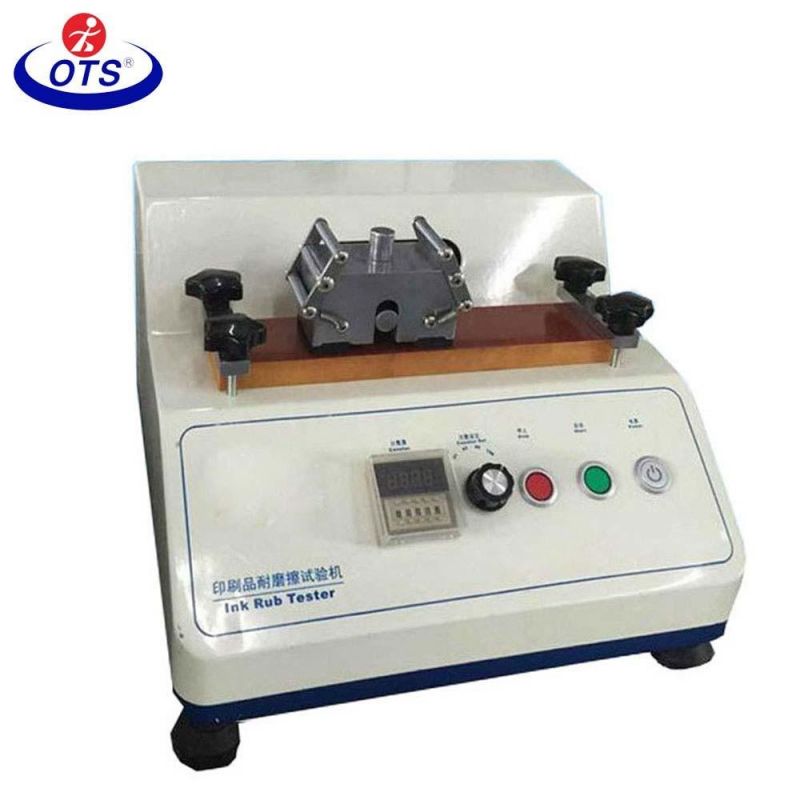

Integration Printing Ink Rubbing Fastness Test Equipment Rubbing Fastness Tester

  Description :
  Ink Rubbing Fastness Testing Instrument is used to test the paper and paperboard labels, folding cartons, corrugated boxes etc with high smoothness, Which not apply to test materials that thickness over 0.5mm or the paper and paperboard with good air permeability.
  Ink Rub Tester can do dry or wet rubbing test, discoloration test, paper fuzzy test, and special friction test. It can help users to analyze the reason of lower abrasion assistance, ink layer falling-off, lower printable of PS board, and adhesion of coating layers of other





Design Criteria
    JIS-507-1, TAPPI-UM486, GB7706

The main technical parameters:

Operating Method	Microcomputer Control
Display	LCD
Specimen Size	Minimum Size: 230*50 mm
Friction Speed	43 times/min ( 21,43,85, 106 times/min, adjustable)
Friction Load	908g ( 2LB), 1810g (4 LB)
Friction Stroke	60 mm
Friction Area	50*100 mm
frequence Setting	0~9999 times, auto-shutdown
Outside Dimension (L×W×H)	430×335×405 mm
Weight	40 Kg
Power	AC220V, 60W


Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for Rubbing Fastness Friction Tester
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

About US

Our Services
We are here to help you. Services available:
    Replacement manuals
    Consumables and replacement parts
    On-site maintenance and repair
    Warranty support
    Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
 Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.
Service repair:  We prefer you contact us direct at the factory with any problems you may be experiencing.  We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.  Rarely can a local contractor get all that done for you as quickly as we can.  We also guarantee the work

FAQ
Q1 :  Can you customize the product?
   A:   Yes, we can customize any products according to requirements.
Q2 :  How to choose the most suitable products?
   A:   Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.
 Q3 :  Can you arrange installations and commissioning in our lab?
   A:   Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate. Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it. Thirdly, some of customized chambers we should to install and teach your team to operate .
