• Model NO.：XB-OTS-209B
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Radius of Curvature：1.5 mm
• Sample：175X175mm, 300X300mm
• Warranty：1 Year
• Controller：Microcomputer
• Transport Package：Standard Strong Wood Case
• Specification：86X43X80 mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-209B Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Radius of Curvature 1.5 mm Sample 175X175mm, 300X300mm Warranty 1 Year Controller Microcomputer Transport Package Standard Strong Wood Case Specification 86X43X80 mm Trademark OTS Origin Guangdong, China (Mainland) Production Capacity 248 Sets Per Month

Product Description

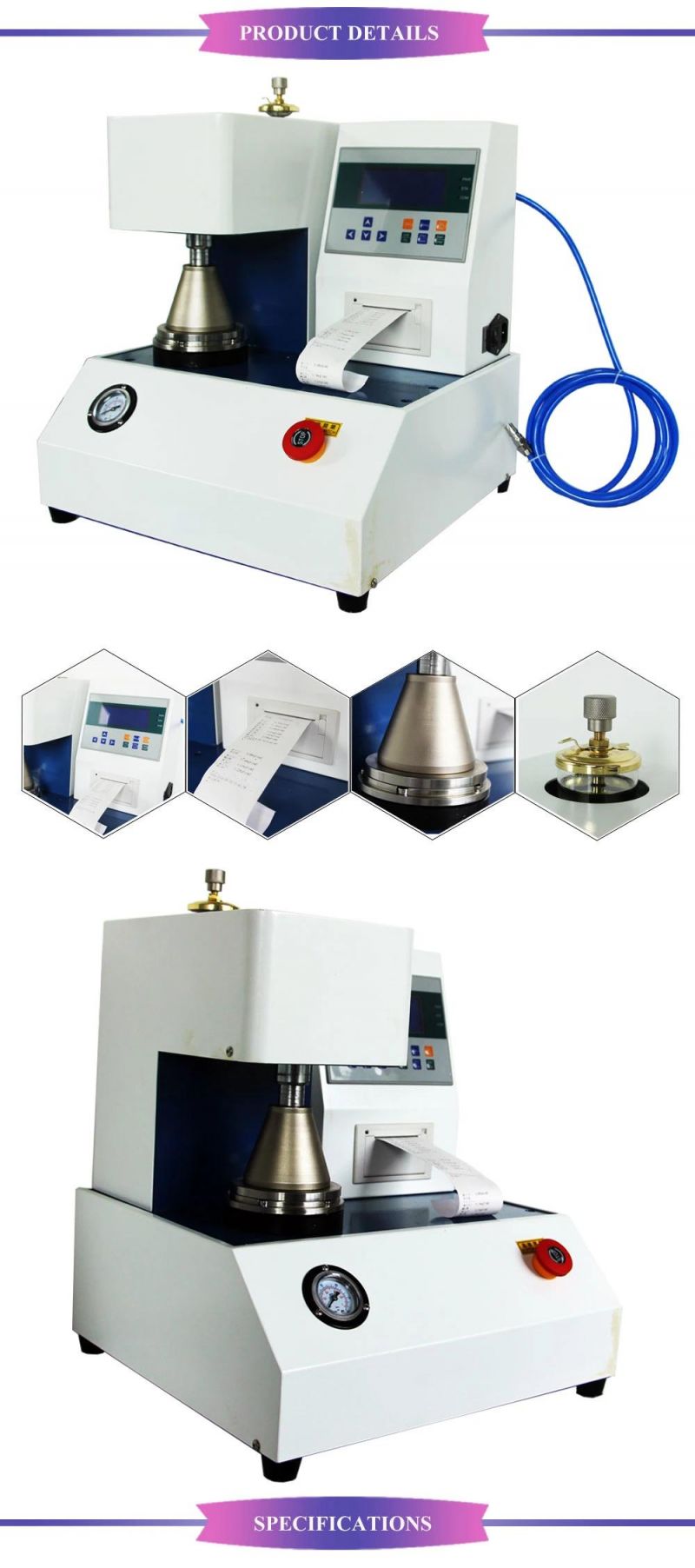

Intelligent Synthetic Cardboard and Paper Mullen Burst Testing Machine
Model: XB-OTS-209B


Introductions:
   Bursting strength tester for packaging industry is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc,to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather.
   This type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.


Features of  Paperboard Bursting Strength Testing Machine
1. It is applicable to test bursting strength for paperboard.
2. Advanced micro computer controller and digital processor ensure result precise.
3. Printer facility and fully detailed test reports.
4. Results of the tests are stored for viewing or for printing out as required.
5. User-friendly menu interface.
6. Power protection ensure automatic record when power cut off.


Design standards:
 JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539


Technical Parameters:

Model	XB-OTS-209B
Capacity (Optional)	High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (sitchable)	Kpa, psi, kg/cm^2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Speed of Compression	High Pressure 170 ±10ml/min
Specimen Clamping Force	>690kpa
Oil	100% silicon oil
Sensing method	Pressure Transmitter
Indicating Method	Digital
Display	LCD
Material of the Ring	Stainless Steel SUS304
Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/4 HP
Operation Method	Semi-automatic
Dimension (L*W*H)	430*530*520 mm
Weight	Approx. 64 kg
Power	1 , AC220± 10%, 50 Hz
Power Capacity	120W
Standard Configuration	Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
Optional Configuration	Printer
Standard	JIS-L1004, L1018, L1031, K6328, P8131, P8112 ASTM-D2210; TAPPIT403TS-63 ISO2759-2001; GB/T1539



Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer


Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .


Our Company
OTS (Overall Testing System)
Was established in 1978, with 35 years' history
With 30,000 square meter salable production base and 120 employees
Is one of the leading companies solely dedicated to manufacture of
Environmental Simulation Test Chambers ,Physical Testing Equipment .
(such as  constant temperature and humidity chambers, environmental chambers, climatic test chambers, rain and dust test chambers,thermal shock test chambers,fast change rate chambers, salt spray chamber,UV test chambers,walk in test chambers and other special customized test chambers  ;Tensile testing machine, vibration test machine ,carton compression testing machines, bursting strength testing machine etc.) ..
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement.With offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms:ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...


FAQ:
Q1 :Can you customize the product?
A:Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 :How to choose the most suitable products?
A:Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.
Q3 :Can you arrange installations and commissioning in our lab?
A:Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly;We had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
