• Model NO.：XB-OTS-200
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Design Criteria：Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
• Load Resolution：1,10,000
• Test Space (Lxwxh)：1000*1000*1000 mm
• Speed of Compression：10 +,- 3 mm,Min
• Warranty：1 Year
• Transport Package：Standard Strong Wood Case
• Specification：1495*1300*1520 mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-200 Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Design Criteria Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642 Load Resolution 1/10,000 Test Space (Lxwxh) 1000*1000*1000 mm Speed of Compression 10 +/- 3 mm/Min Warranty 1 Year Transport Package Standard Strong Wood Case Specification 1495*1300*1520 mm Trademark OTS Origin Guangdong, China (Mainland) Production Capacity 248 Sets Per Month

Product Description

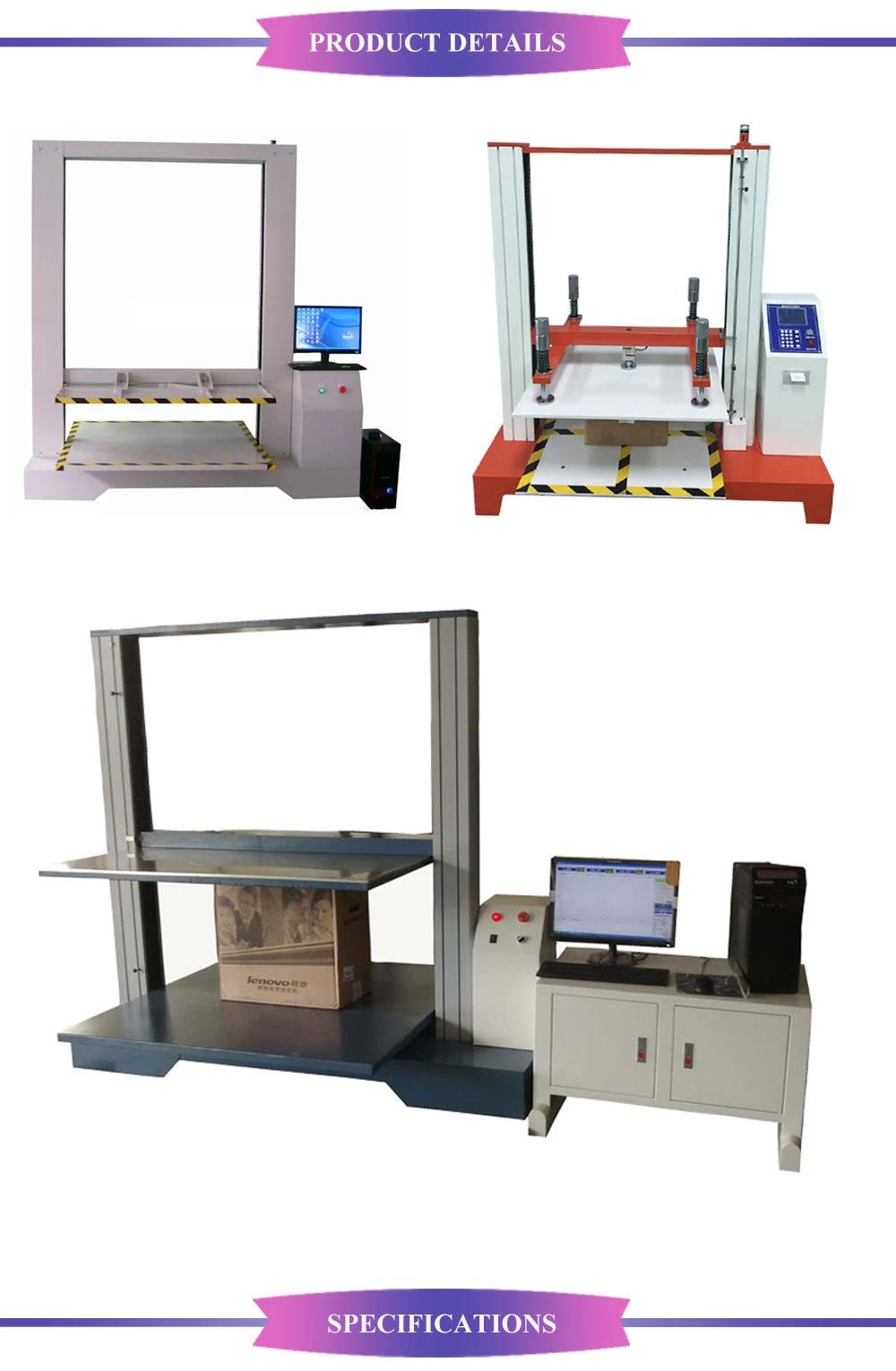

Digital Carton Package Compressive Strength Testing Machine


Model: XB-OTS-200


Introductions:
     Corrugated Carton Testing equipment is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.The main technical parameters Corrugated Box Compression Tester



 Application:
Corrugated board boxes and Cartons, Plastic Packaging, Wooden box.



Features:
1)  Strength test:
     Strength test which belongs to a destructive test is mainly used to measure the deformation when        the Sample is loaded with maximum pressure or crushing strength.
2) Constant Value Test:
     There are two parameters which are to be set in the constant value test: Load force value and
     Deformation value. The user can set one or both of them according to the practical requirement;          The Measurement is complete when any parameter reaches the set value.
3) Stacking Test:
    Stacking Test is used to check up that whether the sample can endure a constant pressure in a         given Time period. Set up two parameters: Compressive strength and testing time (hour). When the       test Starts, the system will check the current pressure at any moment to ensure the set value; The
    Measure is complete when the test time is expired or the deformation value exceeds the set one
    Within testing time.
4) The overall system is in good parallelism, stationarity and high return speed.



Design standards:
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642



Technical Parameters:

Capacity (optional):	2T
Unit (switchable):	Kg, Lb, N
Load Resolution:	1/10,000
Load Accuracy:	≤0.5%
Indication error:	+/-1%
Return velocity:	250 mm/min (maximum)
Test Space (L×W×H)	1000×1000×1000 mm
Speed of Compression	10 ± 3 mm/min
Report Items:	Serial number, Peak value, Average value, Designated holding pressure value;  all  memorable
Structure:	AC frequency conversion motor ( Taiwan); Ordinary screw rod
Dimension (L×W×H):	1495×1300×1520 mm
Weight :	Approx. 690 kg
Power:	220V/ 50Hz
Safety Devices:	Overload protection, overvoltage protection & limited position protection device



Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer



Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .
